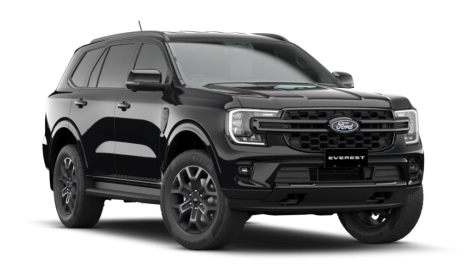

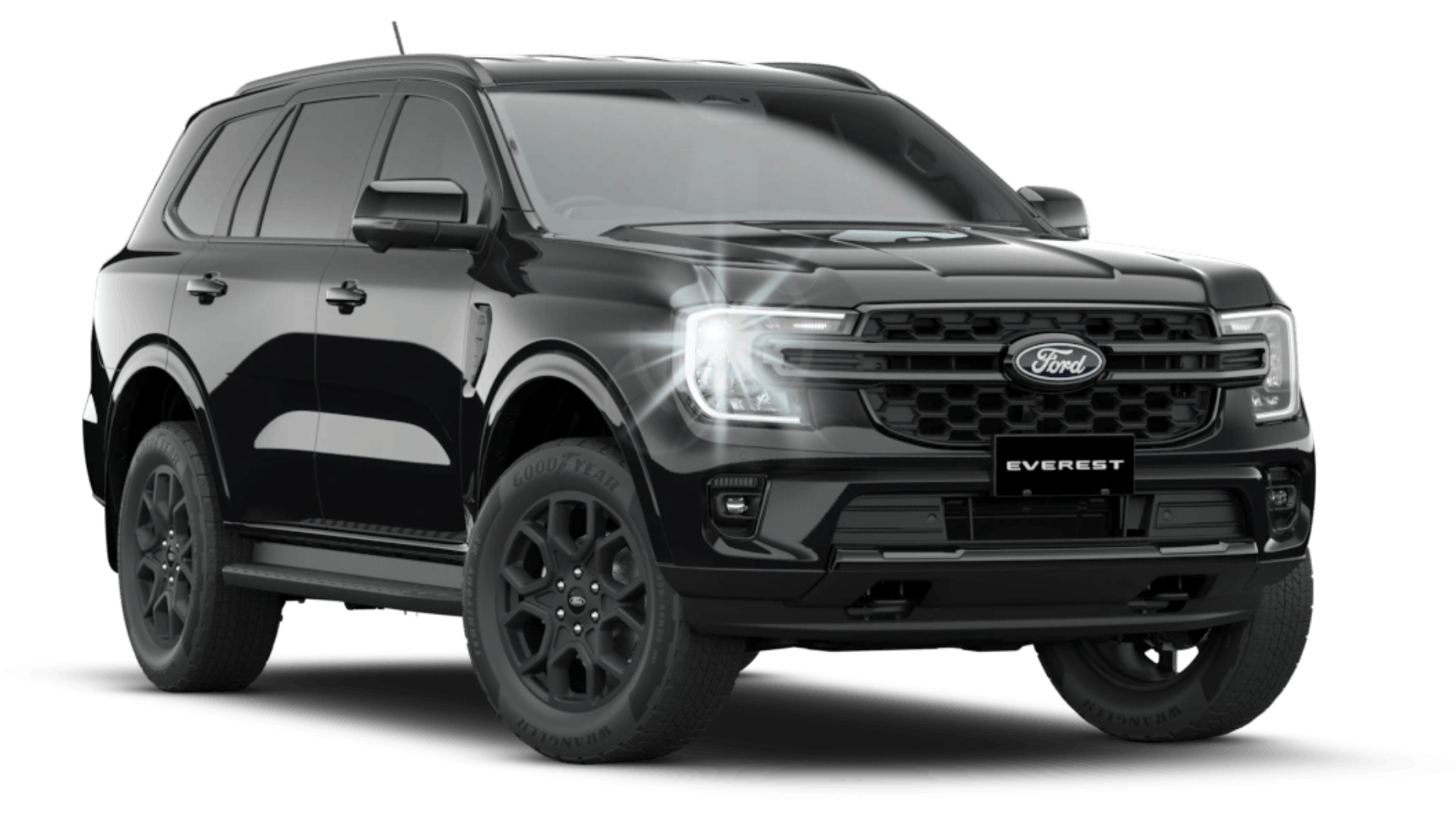

Next-Generation Everest Sport
Embody the Storm

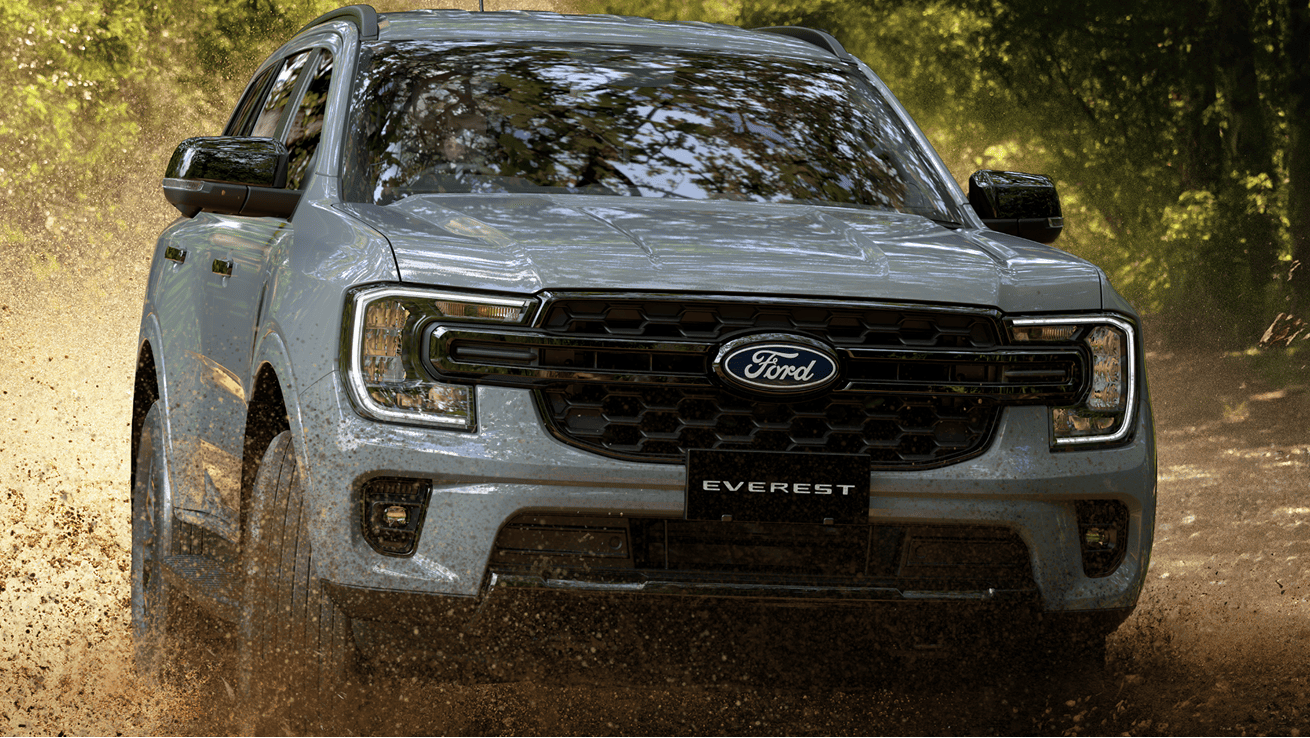

Aggressive grille designDesigned specifically for the Ford Everest, featuring LED headlights and C-clamp daytime running lights.

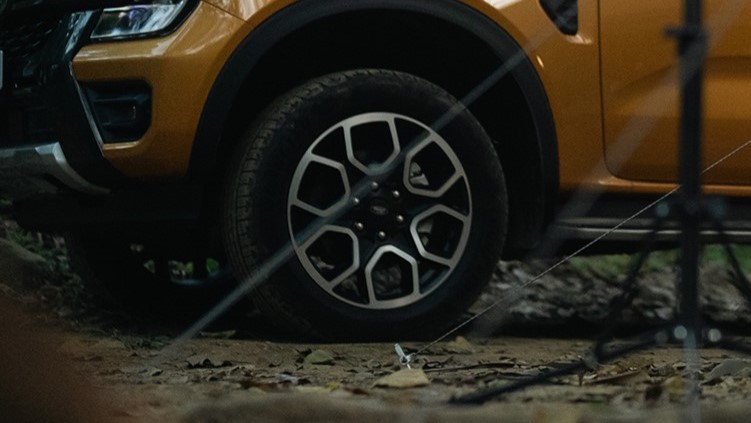

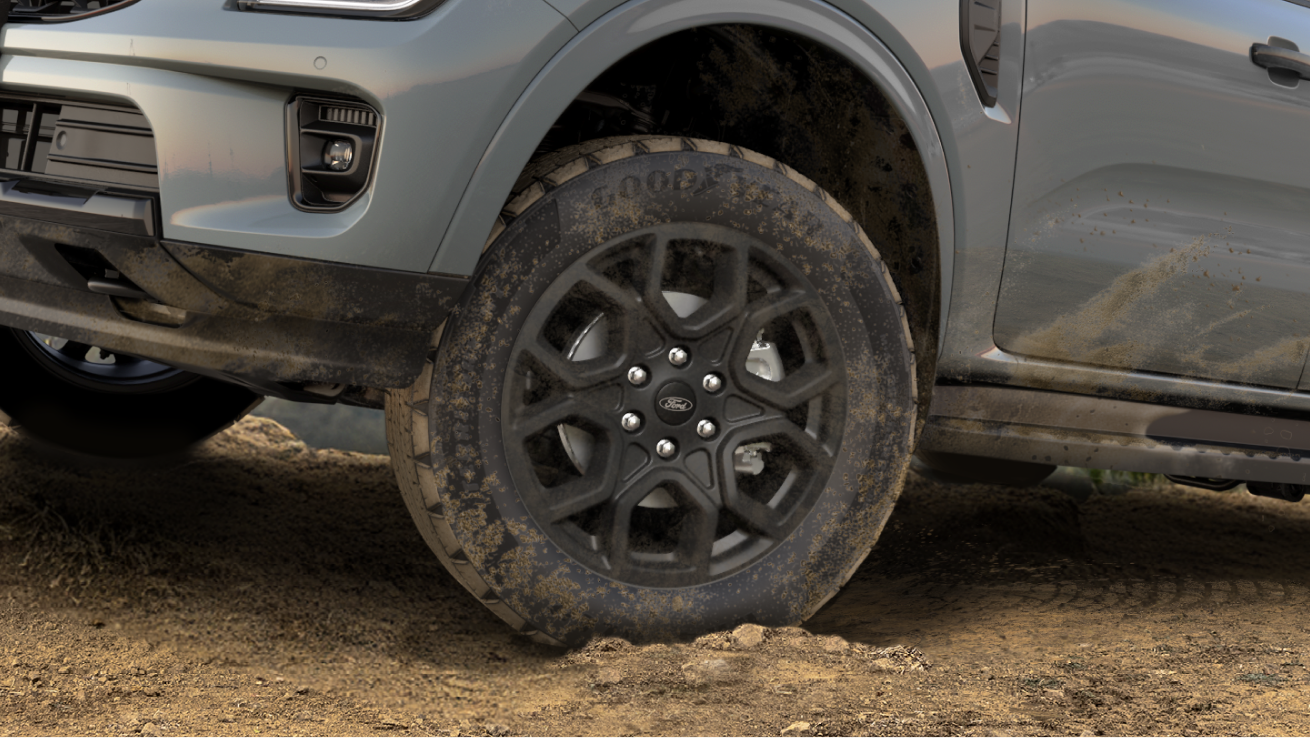

20-inch alloy wheels20-inch alloy wheels with 255/55 R20 tyres ensure confident driving on any road.Aggressive grille designDesigned specifically for the Ford Everest, featuring LED headlights and C-clamp daytime running lights.
20-inch alloy wheels20-inch alloy wheels with 255/55 R20 tyres ensure confident driving on any road.

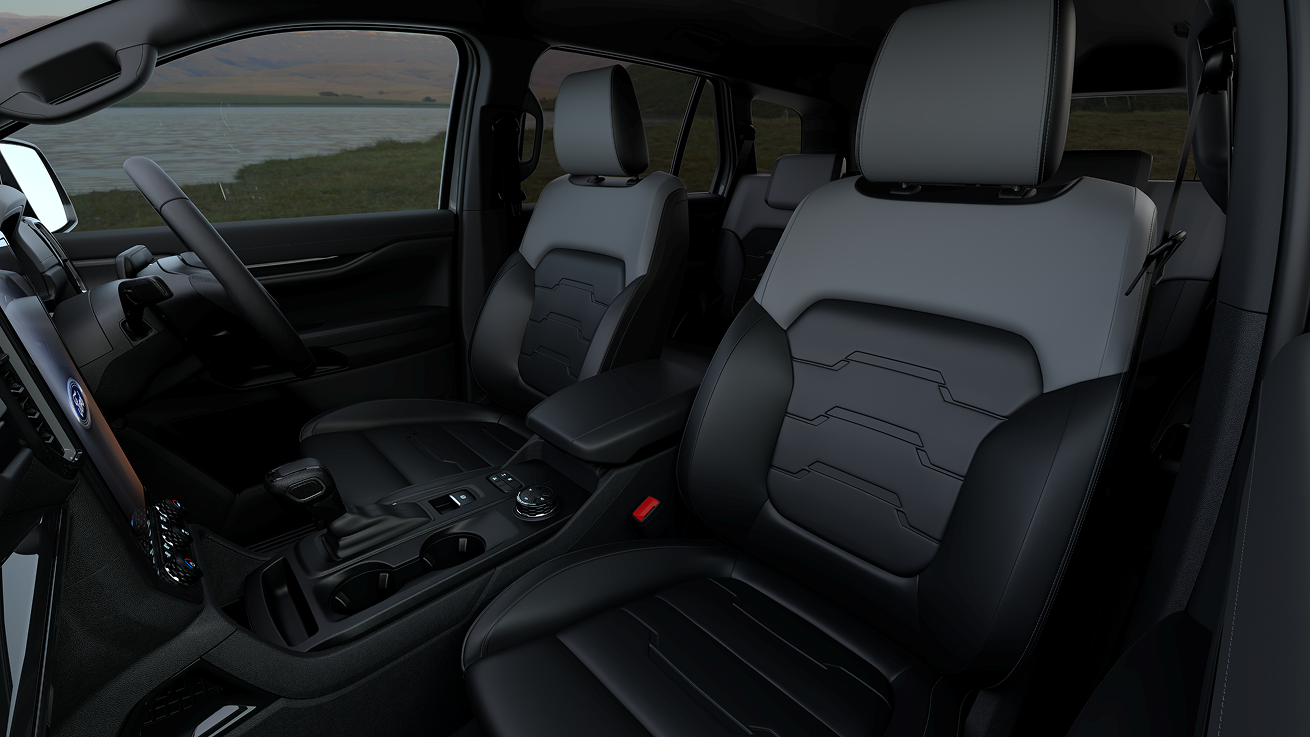

Sleeker and stylish seatsNewly designed, sporty two-tone seats.

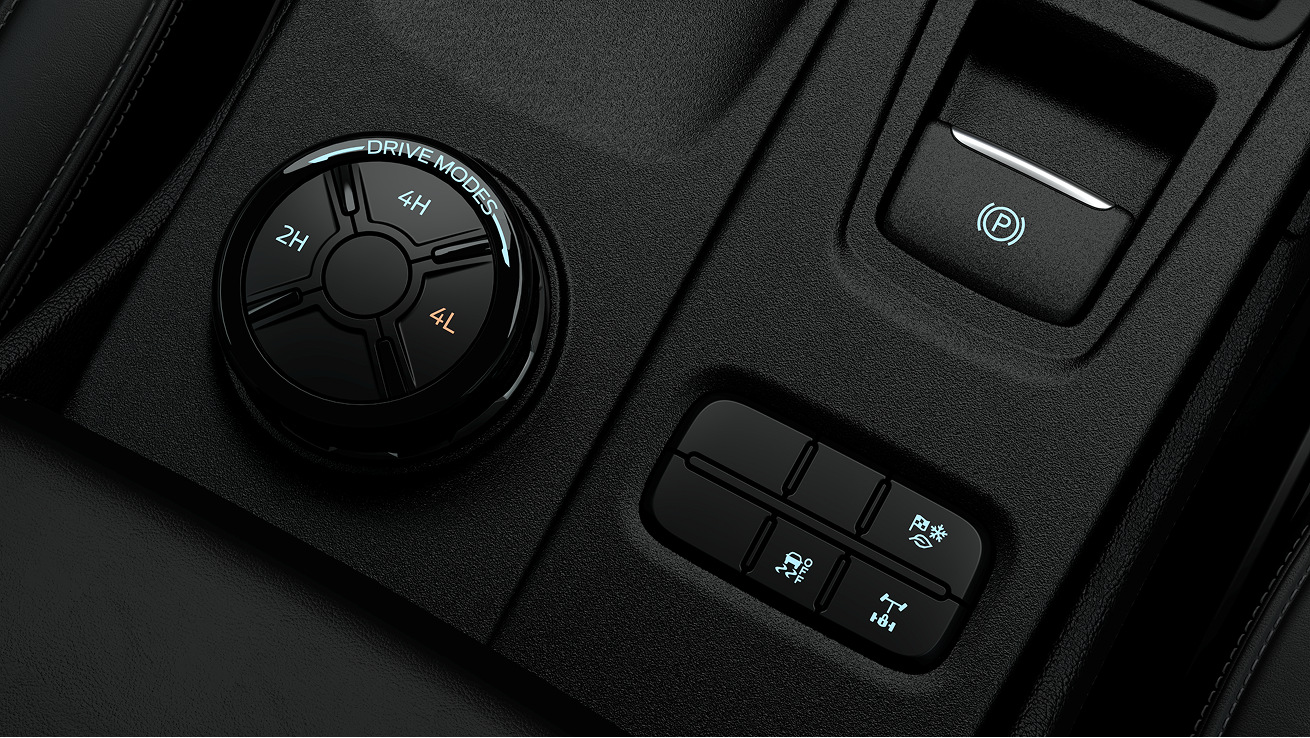

4-wheel drive systemThe all-wheel drive system with driving control modes allows you to travel anywhere without limitations.Sleeker and stylish seatsNewly designed, sporty two-tone seats.
4-wheel drive systemThe all-wheel drive system with driving control modes allows you to travel anywhere without limitations.
Model Specification
| Model | EVEREST SPORT 2.0L |
|---|---|
| Engine | |
| Type | 2.0L Turbo Diesel |
| Displacement (cc) | 1996 |
| Max Power [KW(Ps)@rpm] | 125 (170) @ 3500 |
| Max Torque (Nm@rpm) | 405 @ 1750 – 2000 |
| Fuel Supply System | Commonrail Direct Injection |
| Compression Ratio | 15.8+0.5:1 |
| Transmission | |

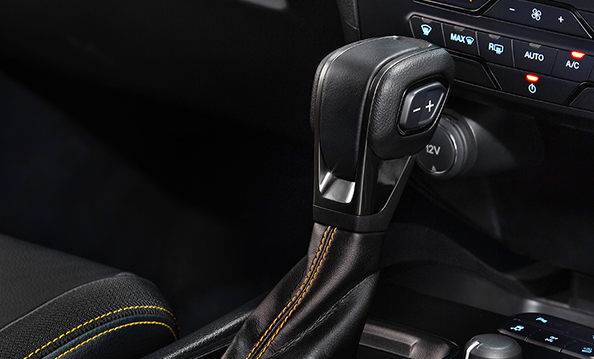

| Type | 10-Speed SelectShift AT |
| Electronic Shift-On-The-Fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) |
| Chassis & Suspension | |
| Steering System | Rack and Pinion with Electronic Power Assisted Steering (EPAS) |
| Suspension (Front) | Double Wishbone with Coil Spring and Anti-roll Bar |
| Suspension (Rear) | Coil Spring with Watt’s Linkage |
| Brakes (Front/Rear) | Front Ventilated Discs / Rear Discs |

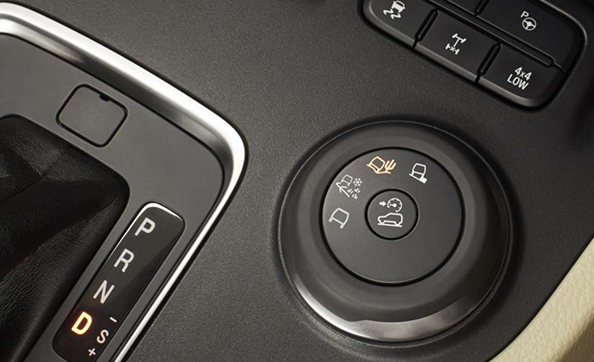

| Drive Modes | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand |
| Differential Type | e-locking differential |
| Tyres & Rims | 255/55 R20, Alloy |
| Measurements | |
| Overall (L x W x H) (mm) | 4914 / 1923 / 1841 (1840-1842) |
| Wheelbase | 2900 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 200 |
| Body Overhang Front (mm) | 880 |
| Rear (mm) | 1143 |
| Kerb Weight (kg) | 2384 |
| Gross Weight (kg) | 3100 |
| Minimum Turning Circle (m) | 11.8 |

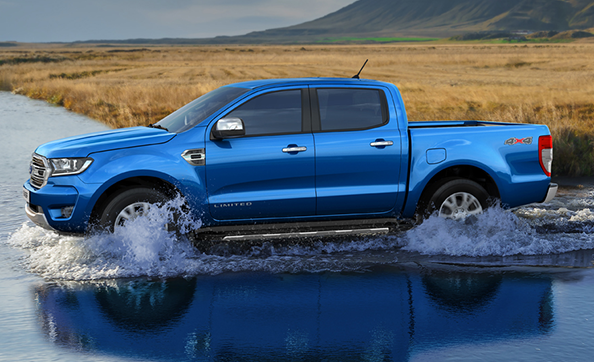

| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Features | |
| Front Grille | Black |
| Bumper (Front) | Body Color |
| Bumper (Rear) | Body Color |
| Door Handle / Side Mirror | Glossy black / Glossy black |
| Headlamps | LED Reflector |
| Headlamps Leveling | Manual Levelling |
| LED Rear Lights | Standard |
| LED Fog Lamps (Front & Rear) | Standard |
| LED Stop Lamp | Standard |
| Daytime Running Lights | C-Clamp Daytime Running Lights |
| Side Mirror | Power Fold w/ Puddle Lamps |
| Side Mirror with Turning Lights | Standard |
| 12V Socket (Rear Bonnet) | Center box, 3rd row and rear bonnet |

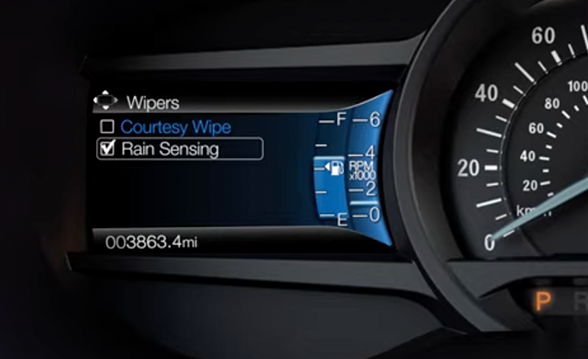

| Wiper System | Rain Sensing |
| Roof Rails | Standard |
| Side Steps | Black Sidesteps |

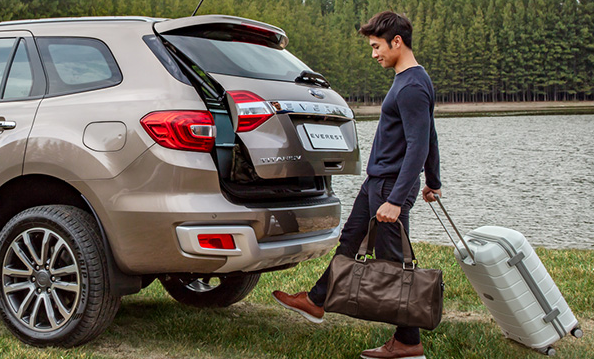

| Hands-free Power Liftgate | Standard |

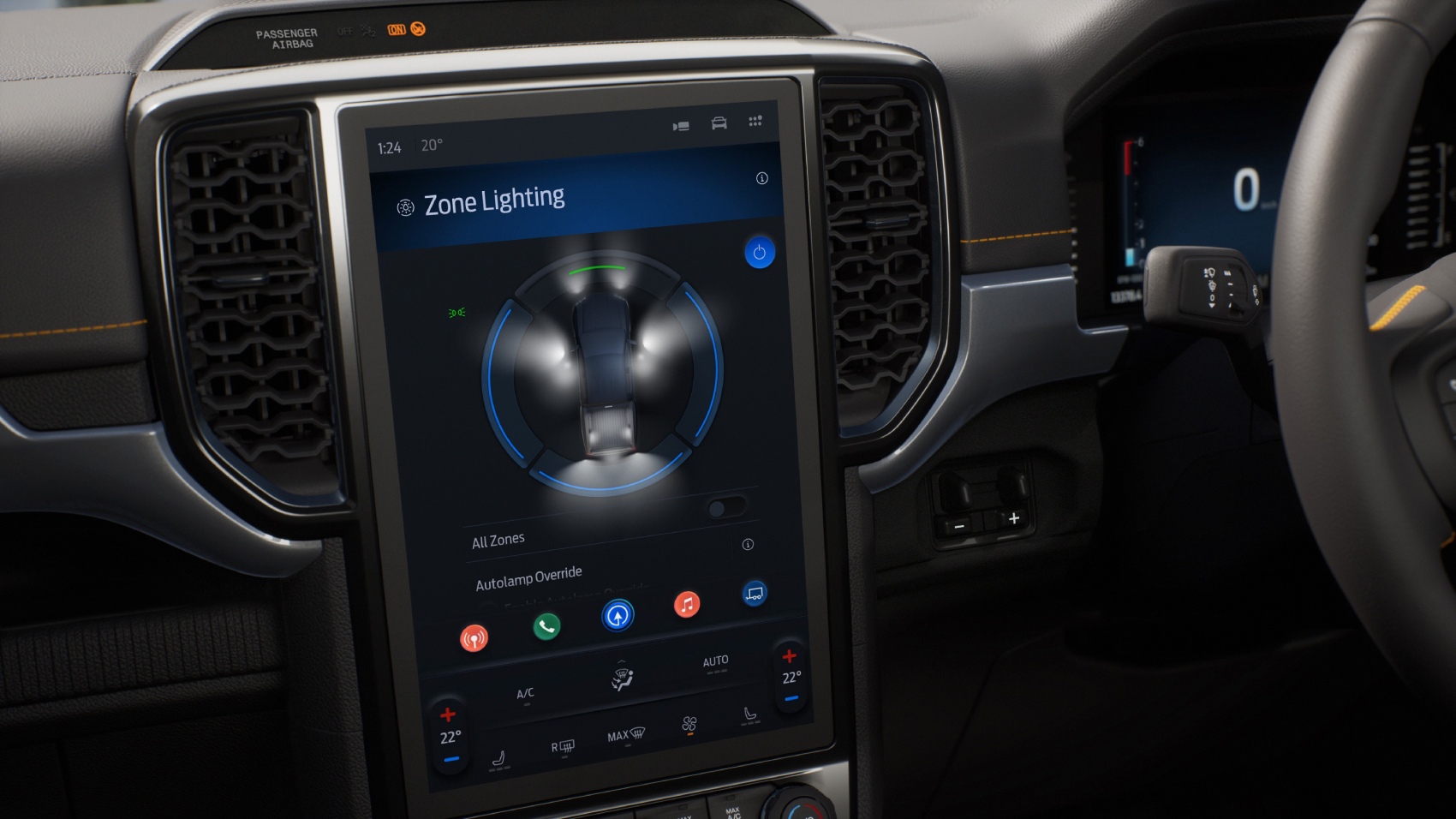

| Zone lighting | Standard |
| Underbody Protection Bash | Metal Front, Engine & Transfer Case Shield |
| Front Recovery Hooks | Standard |

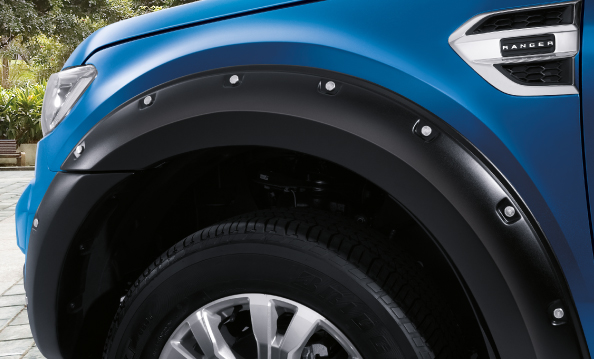

| Fender Flares | Standard |
| Interior Features | |
| Steering Wheel Material | Vinyl |

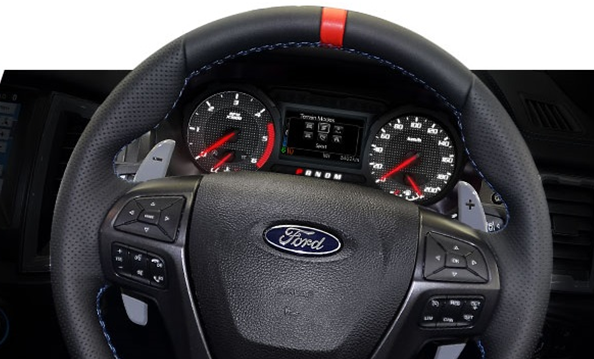

| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Steering Wheel (Switches) | Standard |
| Parking Brake | Electronic Parking Brake |
| Audio System / Infotainment | 12” Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition |
| Apple Carplay® & Android Auto™ | Supported with Wireless Apple Carplay® |
| Speakers | 8 Speaker System |
| SYNC® | SYNC® 4A |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) |
| 12V Socket / Power Port DC 12V | Centre Box, 3rd Row and Rear Bonnet |

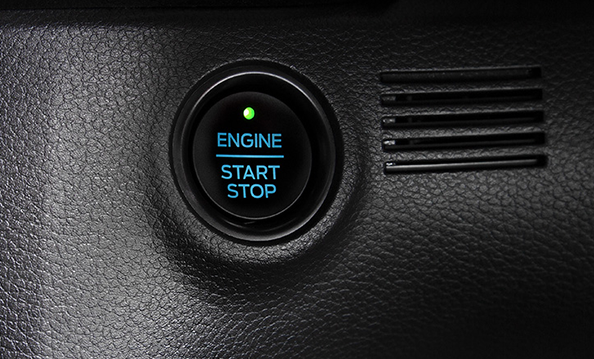

| Keyless Entry with Push Start Button | Standard |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Blower and Vents | Standard |

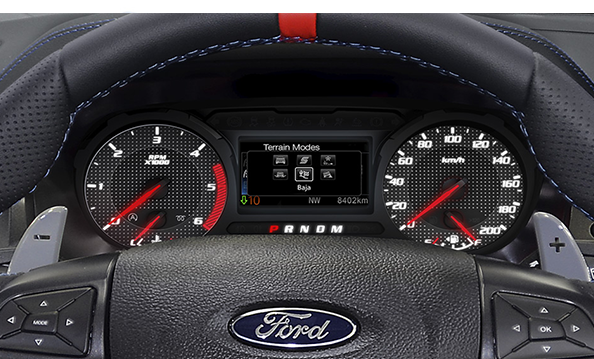

| Instrument Cluster | 8” TFT Multi Information Display |
| Power Windows | Driver & Front Passenger – Touch Up/Down; Power Rear Windows |

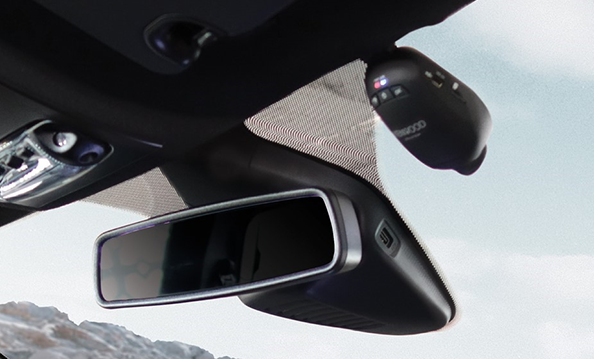

| Rear View Mirror | Auto Dimming |
| Sun Visor | With Light |
| Dome Light / Cabin Light | Standard |
| Windscreen Mounted USB Port | Standard |
| Gear Knob Type | Leather Gear Shift Knob |
| Interior Trim Color | Ebony |
| Glove Box | Standard with lights |
| Seats (Materials) | Leather |
| Driver Adjustable Seat | 8-Way Power Adjustable |
| Front Passenger Seat | 8-Way Power Adjustable |
| Seats / Lumbar Support | Standard |
| Power Folding Seats | Manual |

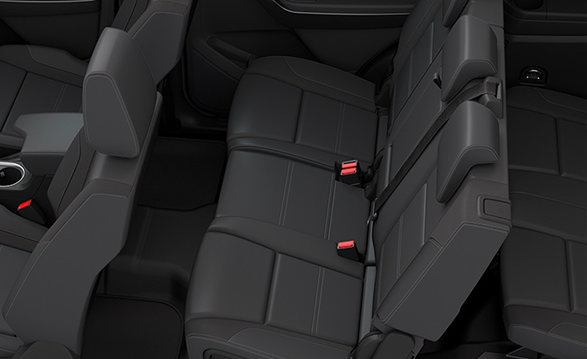

| Rear Seats – 2nd Row | Standard |
| Rear Seats – 3rd Row | Standard |
| Arm Rest / Storage | Standard |
| Assist Handles | 4 – All Doors |
| 230V AC Outlet (400W) | Standard |
| Carpet Mat | Standard |
| Rear Window Defogger | Standard |
| Spare Tyre | 17″ Steel Wheel |
| Wireless Charger / Qi Charger | Standard |
| Safety | |
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring |
| Emergency Stop Signal (ESS) | Standard |

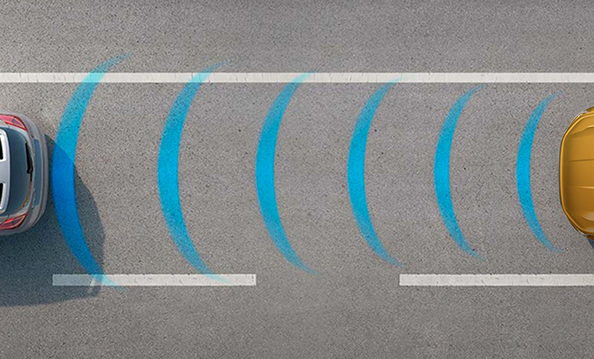

| Lane Departure Warning & Assist (LDW) | Standard |
| BLIS® (Blind Spot Information System) | Standard |
| High Beam Assist | Standard |

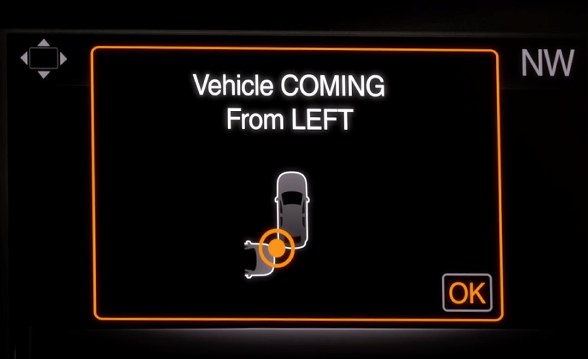

| Rear Cross Traffic Alert | Standard |
| Manual Speed Limiter (MSL) | Electronic speed limiting device |
| Tyre Pressure Monitoring System (TPMS) | – |
| Anti-Lock Braking System (ABS) | Standard |
| Electronic Brake-Force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |

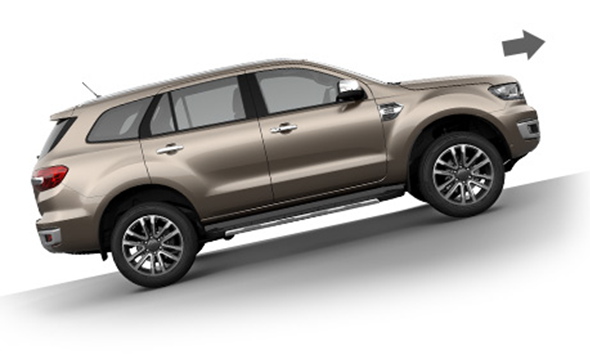

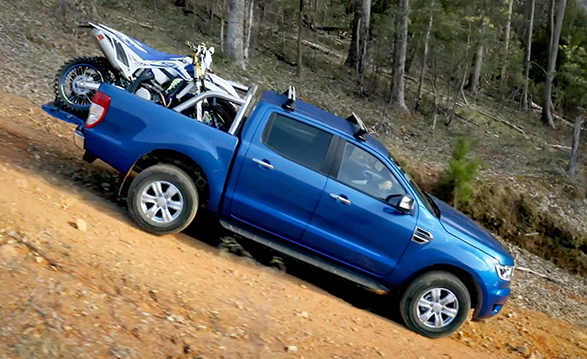

| Hill Descent Control (HDC) | Standard |

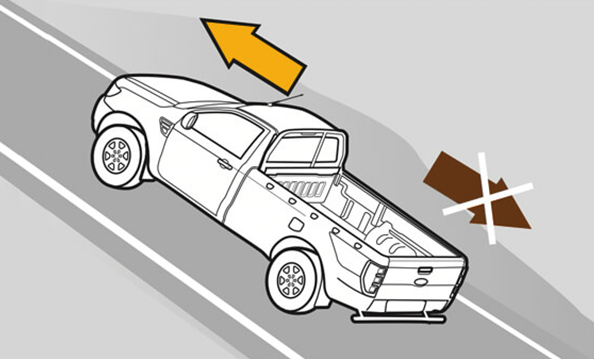

| Hill Launch Assist (HLA) | Standard |
| Rollover Mitigation (ROM) | Standard |
| Adaptive Load Control | Standard |

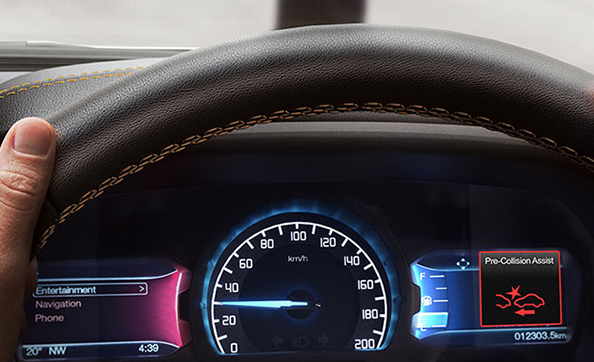

| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard |
| Forward Collision Warning (FCW) | Standard with brake support |
| Reverse Brake Assist | Standard |

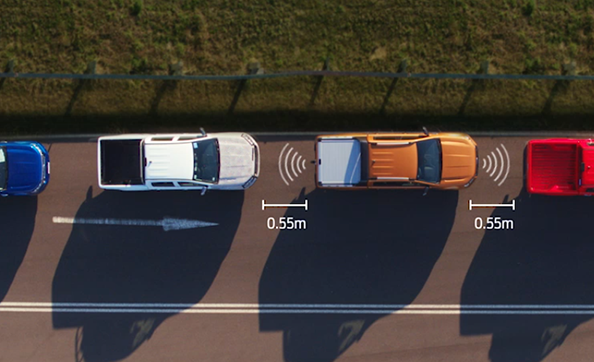

| Parking Sensors (Front/Rear) | Front + Rear |

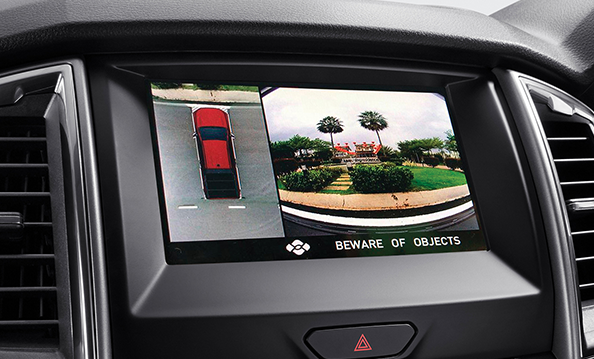

| 360° Camera | Standard |

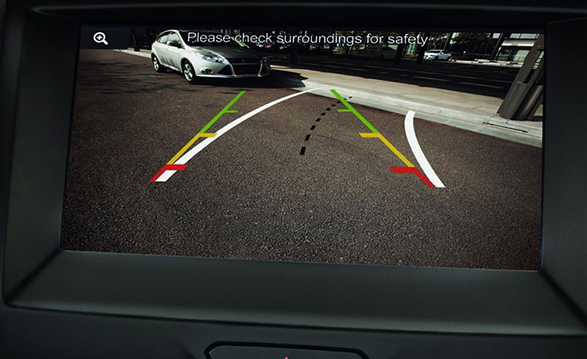

| Reverse Camera | – |
| SRS Airbags | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seat Belts – 2nd Row | 3-Point ELR x3 |
| Rear Seat Belts – 3rd Row | 3-Point ELR x2 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | Standard |
| Security | |
| Remote Central Locking | Global & Selective |
| Security | Valet Mode |
| MyKey | Standard |
| Security Alarm with Immobiliser | Standard |
| Child Safety Lock | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger Sport
Designed to Outclass, Outperform, and Outlast

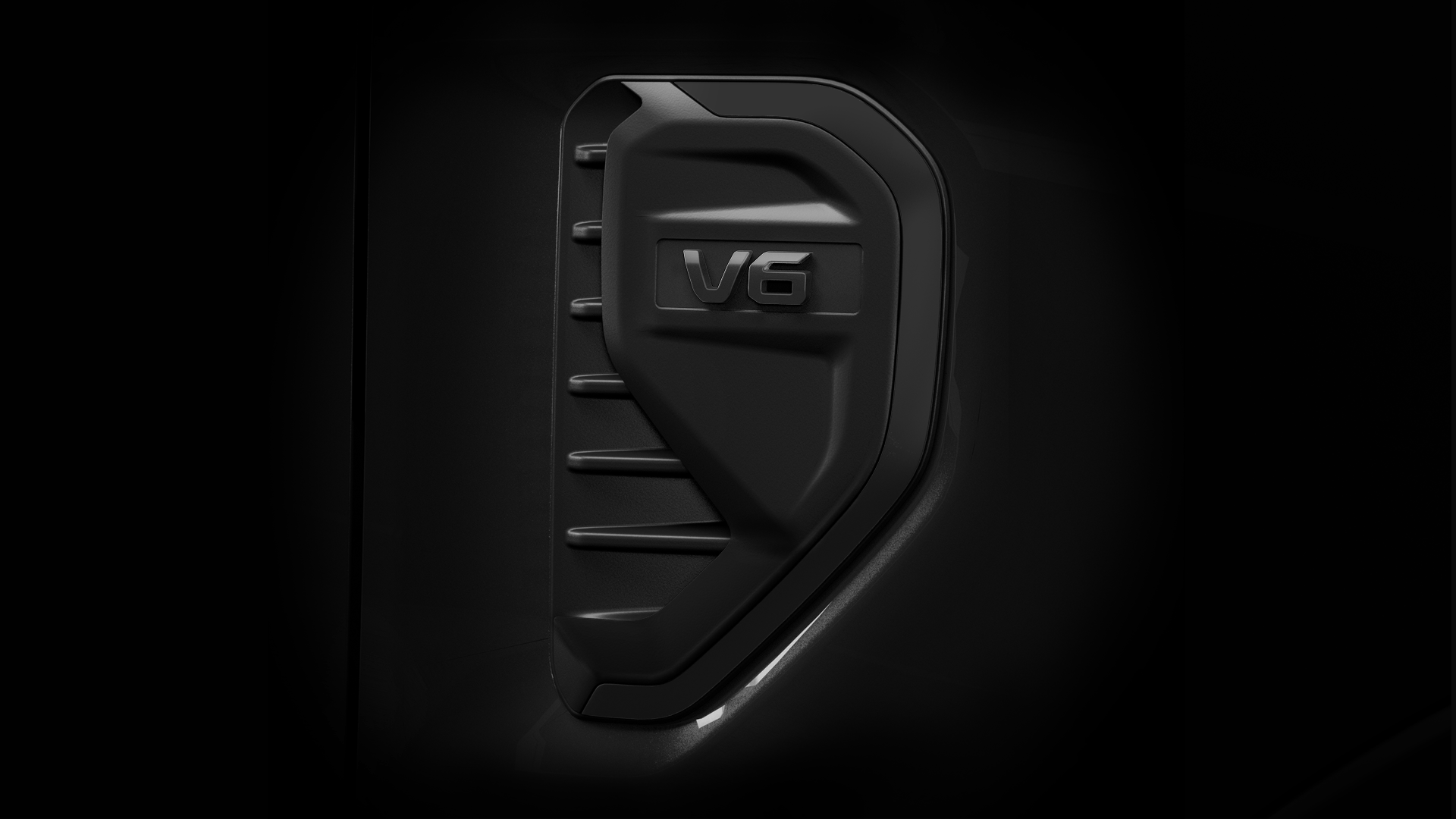

3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.

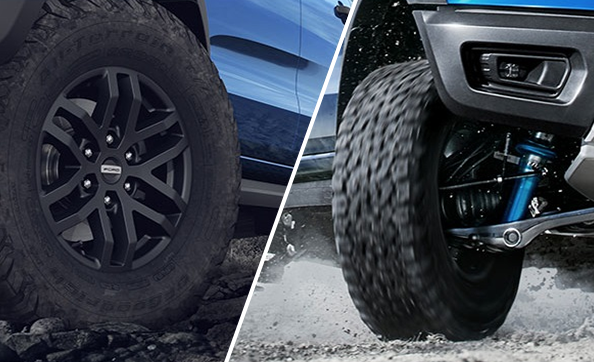

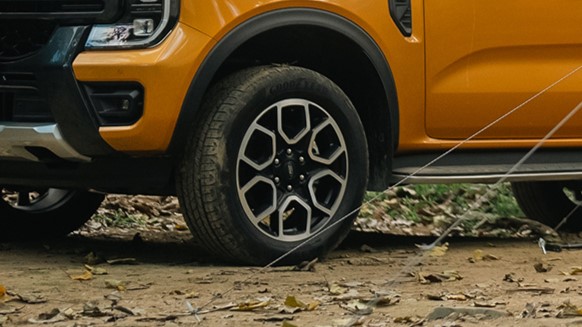

18″ Alloy WheelsForm meets function with durable 18″ alloy wheels. Designed to handle tough tracks while looking sharp in the city, they define the Sport’s versatile character.3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.
18″ Alloy WheelsForm meets function with durable 18″ alloy wheels. Designed to handle tough tracks while looking sharp in the city, they define the Sport’s versatile character.
12″ Multi Touchscreen DisplayThis expansive 12″ display offers crystal-clear graphics and intuitive control for a smarter, more connected drive.

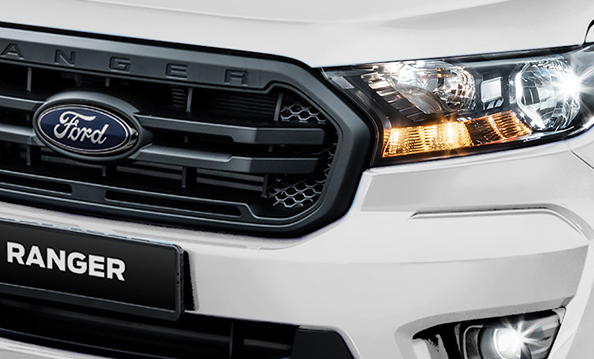

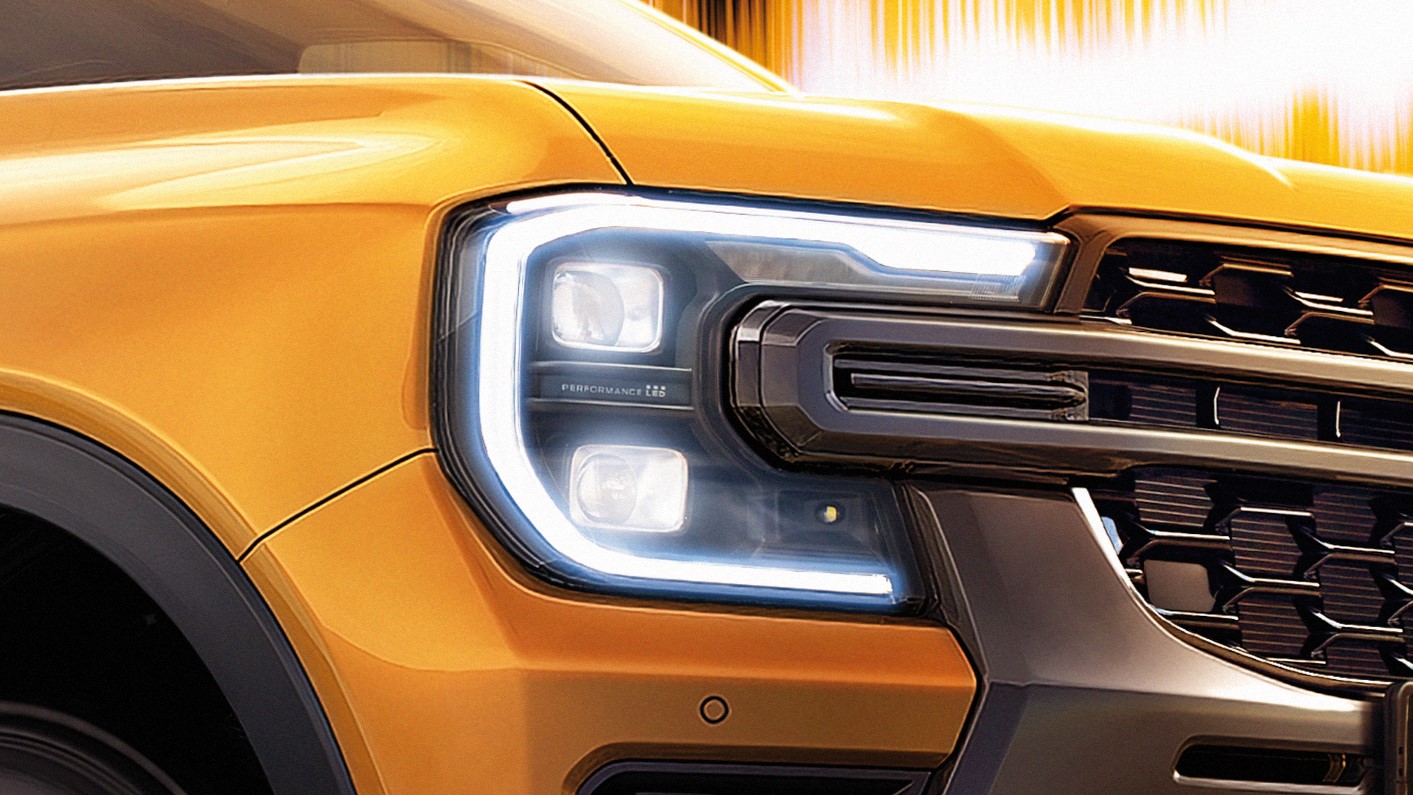

LED Headlights C-Clamp DTRLPrecision-engineered LEDs and C-Clamp daytime running lamps offer a premium look and superior beam pattern, ensuring you stand out day or night, on or off the road.12″ Multi Touchscreen DisplayThis expansive 12″ display offers crystal-clear graphics and intuitive control for a smarter, more connected drive.
LED Headlights C-Clamp DTRLPrecision-engineered LEDs and C-Clamp daytime running lamps offer a premium look and superior beam pattern, ensuring you stand out day or night, on or off the road.
Two-Tone Sport InteriorTwo-tone sport interior blends modern comfort, athletic style, and long-lasting durability.
Dual Tow HooksSerious capability starts with twin recovery hooks. Integrated directly into the frame, these sturdy points offer the rugged backup every off-road adventurer demands.Two-Tone Sport InteriorTwo-tone sport interior blends modern comfort, athletic style, and long-lasting durability.
Dual Tow HooksSerious capability starts with twin recovery hooks. Integrated directly into the frame, these sturdy points offer the rugged backup every off-road adventurer demands.

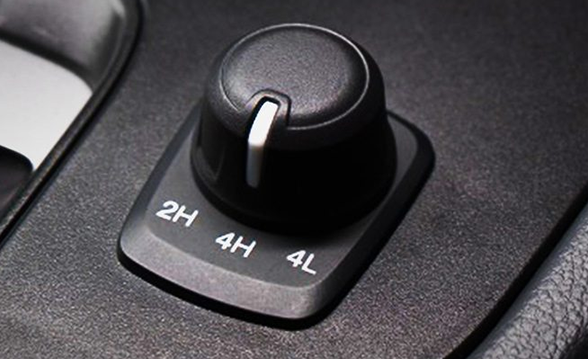

Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.
Model Specification
| Model | Ranger Sport 3.0L | Ranger Sport 2.0L |
|---|---|---|
| Engine | ||
| Type | 3.0L V6 Turbo Diesel | Diesel ( I4 ) With Single Turbo |
| Displacement (cc) | 2993 | 1996 |
| Max Power [kW(Ps)@rpm] | 184 kW (250)@ 3250 rpm | 125 kW(170) @ 3500 rpm |
| Max Torque (Nm@rpm) | 600 Nm @ 1750-2000 | 405 Nm @ 1750-2500 |
| Fuel Supply System | Commonrail Direct Injection | |
| Compression Ratio | 16:1 | |
| Transmission | ||
| Type | 10-Speed Automatic With SelectShift | |

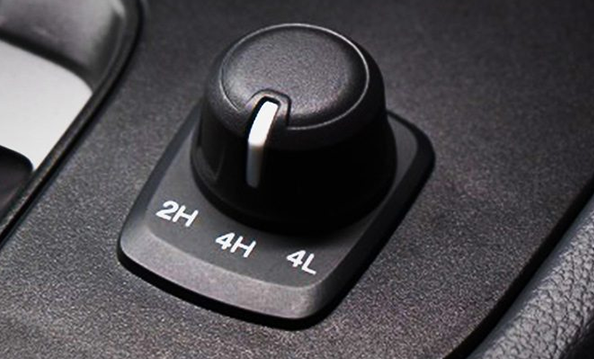

| Electronic Shift On The Fly ( ESOF ) /4×4 Shift System | Electro‑Magnetic Transfer Case (EMTC) | Electronic Shift On The Fly ( ESOF ) |
| Chassis & Suspension | ||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion | |
| Suspension ( Front) | Double Wishbone With Coil Spring | |
| Suspension (Rear) | Leaf Spring | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | Ventilated Disc (Front) / Drum (Rear) |
| Differential Type | E-Locking Rear Differential | |
| Tyres & Rims ( Spare Tyre ) | 255 / 65 R18, Alloy | |
| Measurements | ||
| Overall ( L X W X H) (mm) | 5,370 / 1,918 / 1,884 | |
| Wheelbase (mm) | 3270 | |
| Track (Front/Rear) (mm) | 1620/1620 | |
| Ground Clearance (mm) | 230 | |

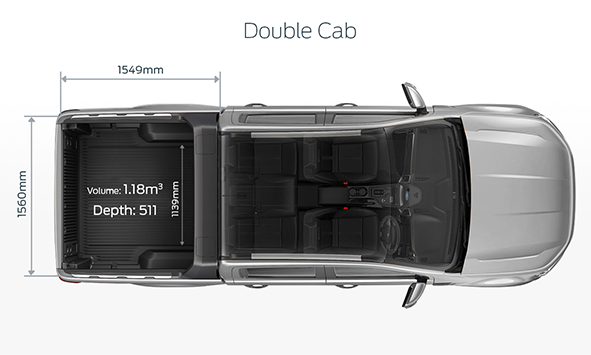

| Cargo Bed ( L X W X H ) (mm) | 1,564/1,584/540 | |
| Kerb Weight (kg) | 2227 | |
| Gross Weight (kg) | 3230 | |
| Minimum Turning Circle (m) | 12.9 | |

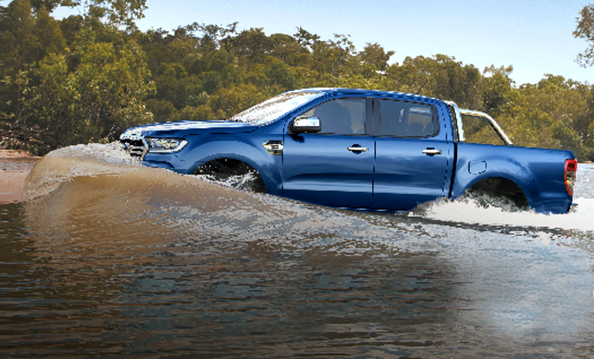

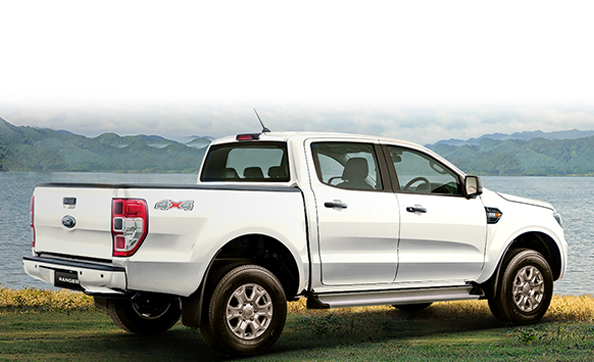

| Water Wading (mm) | 800 | |
| Fuel Tank Capacity (L) | 80 | |
| Exterior Features | ||
| Front Grille | Black | |
| Bumper (Front) | Body Color | |
| Bumper (Rear) | Black | |
| Door & Tailgate Handle | Black | |
| Side Mirror | Black | |
| Headlamps | LED Reflector | |
| Headlamp Leveling | Manual | |
| Rear Lights | LED – Mid | |
| Fog Lamps ( Front / Rear ) | LED Front & Standard Rear | |
| Stop Lamp | Standard | |
| Daytime Running Lights | C- Clamp Daytime Running Light | |
| Side Mirror (Power Adjustable & Foldable) | Standard | |
| Wiper System | Rain Sensing | |
| Bedliner | Standard | |
| Cargo Box Hook Point | 6 | |
| Side Steps | Standard | |

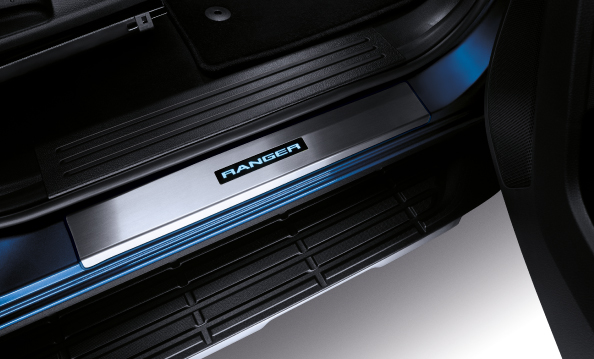

| Scuff Plate | Standard | |
| Underbody Protection Bash Plate / Skid Plate | Plastic Splash Protection Only | |

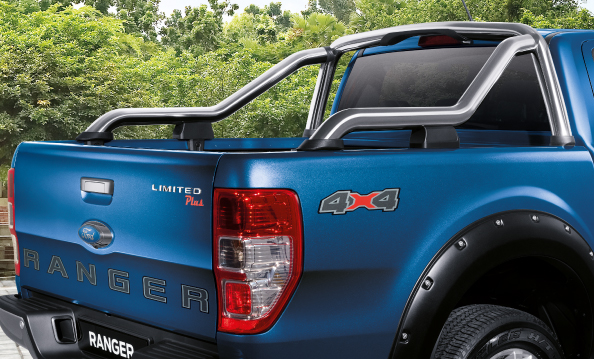

| Sports Bar | Standard | |
| Front & Rear Recovery Hooks | Front (2 Hooks) | |

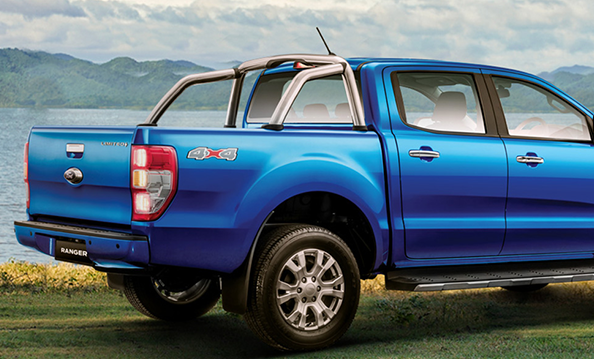

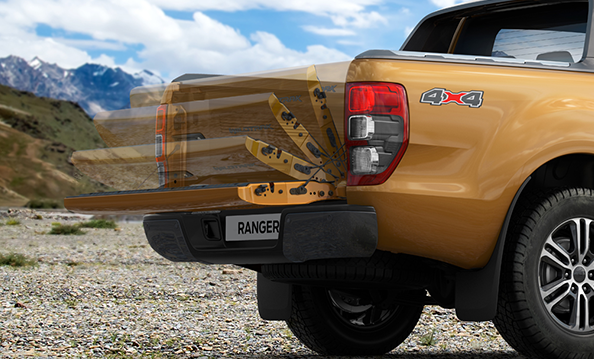

| Easy Lift Tailgate / Tailgate Assist | Standard | |
| Rear Step Bumper | Standard With Box Step | |
| Interior Features | ||
| Steering Wheel Material | Vinyl | |
| Steering Wheel Type | 4-Spoke | |
| Steering Wheel (Adjustment) | Tilt & Telescopic | |
| Steering Wheel (Switches) | Standard | |
| Parking Brake | Electronic Parking Brake | Lever Hand Brake |
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | |
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit With Wireless Apple CarPlay™, Android Auto™, Bluetooth And Voice Recognition | |
| Speakers | 4 | |
| SYNC® | SYNC® 4A | |

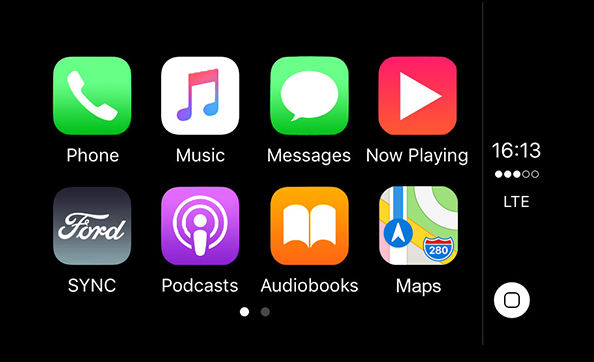

| Apple CarPlay & Android Auto | Support With Wireless Apple CarPlay™ | |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB Type-A / Rear: 1 USB Type-C, 1 USB Type-A) | |
| 12V Socket / Power Port DC 12V Outlet | Center Box | |
| Keyless Entry With Push Start Button | Standard | |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | |
| Rear Air Conditioning Vents | Standard | |
| Drive Mode | Normal, Eco, Tow/Haul, Slippery, Mud&Rut, Sand | |

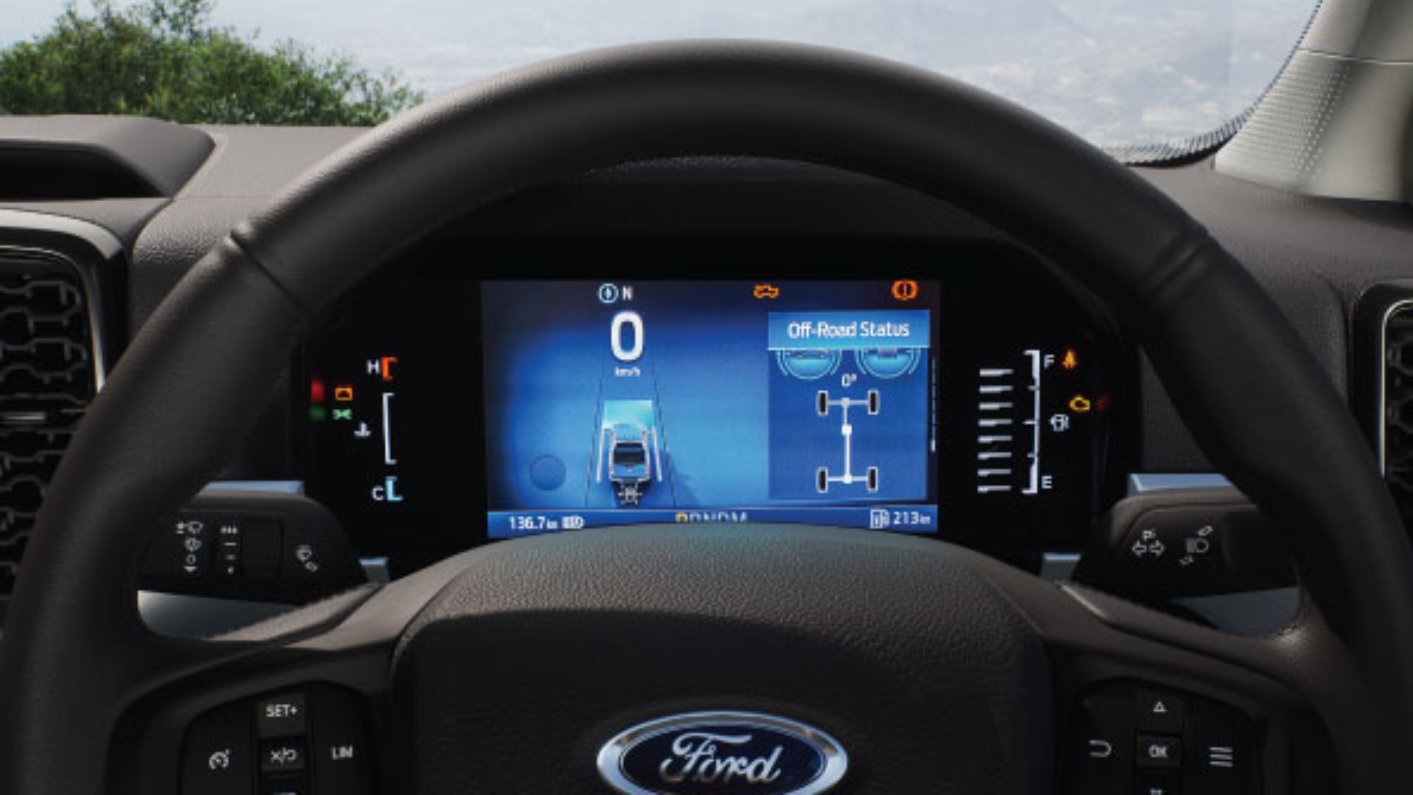

| Instrument Cluster | 8" TFT Cluster Display | |
| Power Windows | Driver & Front Passenger 1- Touch Up / Down, Power Windows Rear | |
| Rear View Mirror | Auto Dimming (Electrochromic) | |
| Sun Visor | Standard With Driver & Passenger Mirror Insert | |
| Dome Light / Cabin Lamp / Ambient Light | Standard | |
| Windscreen Mounted USB Port | 1 | |

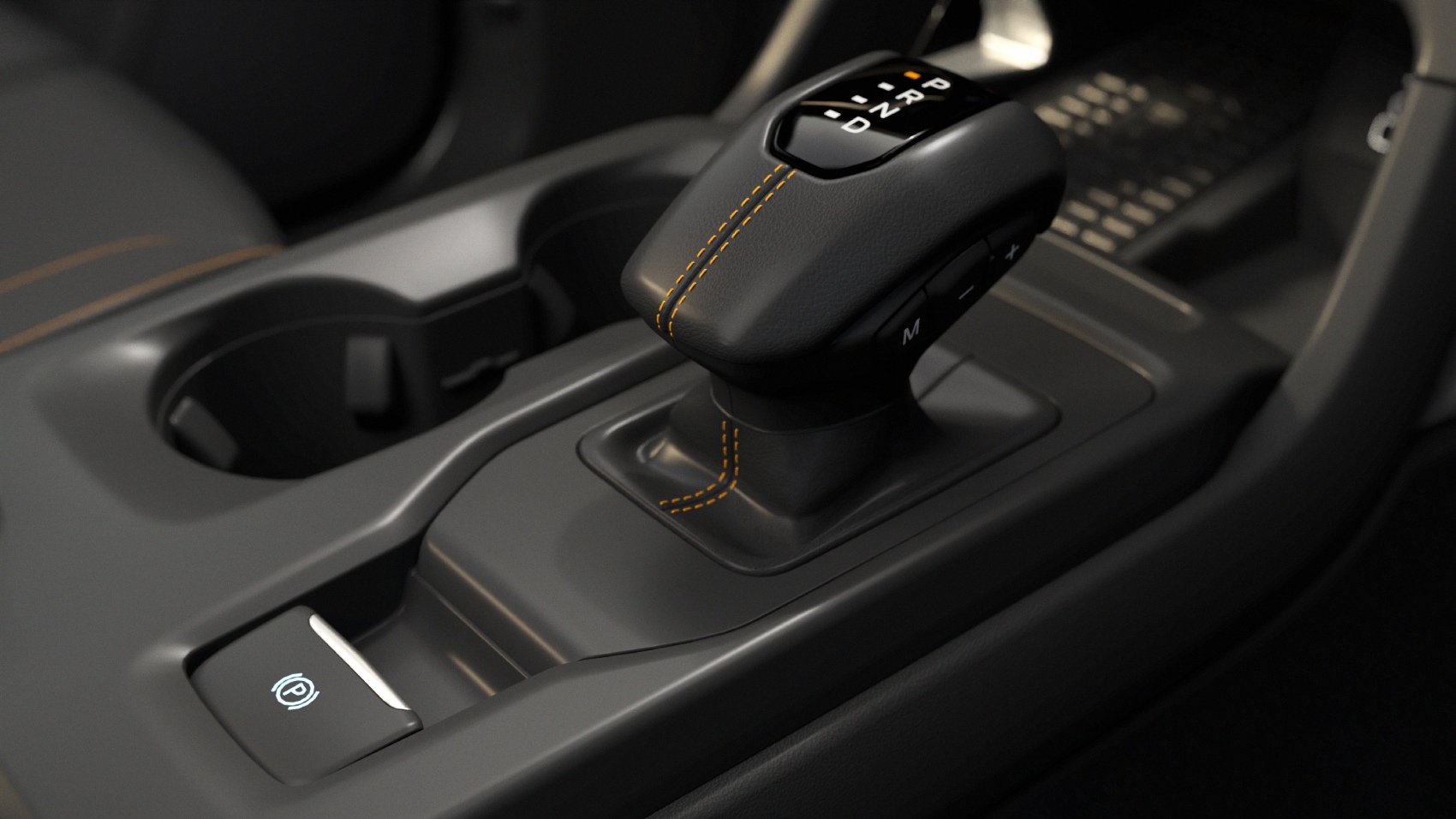

| Gear Knob Type | Leather Gear E-Shifter | Leather Gear Shift Knob |
| Interior Trim Colour | Ebony Black | |
| Instrument, Center Console & Door Panel Soft Pad | Door: Driver & Front Passenger | |
| Seats ( Materials) | Leather Shield Emboss Over Soho | |
| Driver Adjustable Seat | 6-Way Manual Adjustable Seat | |
| Front Passenger | 4-Way Manual Adjustable Seat | |
| Rear Seat Center Armrest | Standard | |
| Assist Handles | Standard (All Door) | |
| Carpet Mat | Standard | |
| Rear Window Defogger | Standard | |
| Spare Tire | 17'' Steel | |
| Wireless Charger / Qi Charger | Standard | |
| Pull-Out Cup Holder | Standard | |
| Glove Box Lid | Standard | |
| Safety | ||
| Advance | ||
| Cruise Control | Standard | |
| Lane Departure Warning & Assist (LDW) | Standard (Lane Change Warning And Aid) | |
| High Beam Assist | Automatic | |
| Speed Limiter | Standard | |
| Active | ||
| Speed Control | Standard | |
| Starter Start/Stop | Standard | – |
| Anti-Lock Braking System (ABS) | Standard | |
| Electronic Brake-Force Distribution (EBD) | Standard | |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard | |
| Traction Control System (TCS) | Standard | |
| Brake Assist (BA) | Standard | |
| Hill Descent Control ( HDC ) | Standard | |
| Hill Launch Assist (HLA ) | Standard | |
| Rollover Mitigation ( ROM ) | Standard | |
| Trailer Assist / Sway Assist | Standard | |
| Adaptive Load Control ( ALC ) | Standard | |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB ) | Standard | |
| Forward Collision Warning ( FCW ) | Standard | |
| Parking Sensors (Front / Rear ) | Front & Rear | |
| Reverse Camera / Rear View Camera | Standard | |
| Passive | ||
| SRS Airbags | 6 Airbags – Driver & Front Passenger, Sides & Curtain | |
| Front Seatbelts | 3-Point ELR X2 | |
| Rear Seatbelts | 3-Point ELR X3 | |
| Seatbelt Reminder | Driver & Front Passenger | |
| Seat Occupant Alert | Standard | |
| ISOFIX | With 2 Top Tether (Rear) | |
| Security | ||
| Remote Central Locking | Global & Selective | |
| Security | Perimeter Anti Theft And Valet Mode | |
| Security Alarm With Immobiliser | Standard | |
| Child Safety Locks | Standard | |
| Strength & Breadth Capabilities | ||
| Cargo Bed Volumetric Capacity ( Cu.mtr ) | 1,564 / 1,584 / 540 | |
| Maximum Payload (kg) | Up To 1,000 | |
| Towing Capacity (kg) | Up To 3,500 | |
| Water Wading Depth (mm) | 800 | |
| Angle Of Approach (Degree) | 30 | |
| Angle Of Departure (Degree) | 25.6 | |
| 5 Years Warranty | Standard | |
Expert Reviews
2.0L Bi-Turbo Diesel Engine
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**

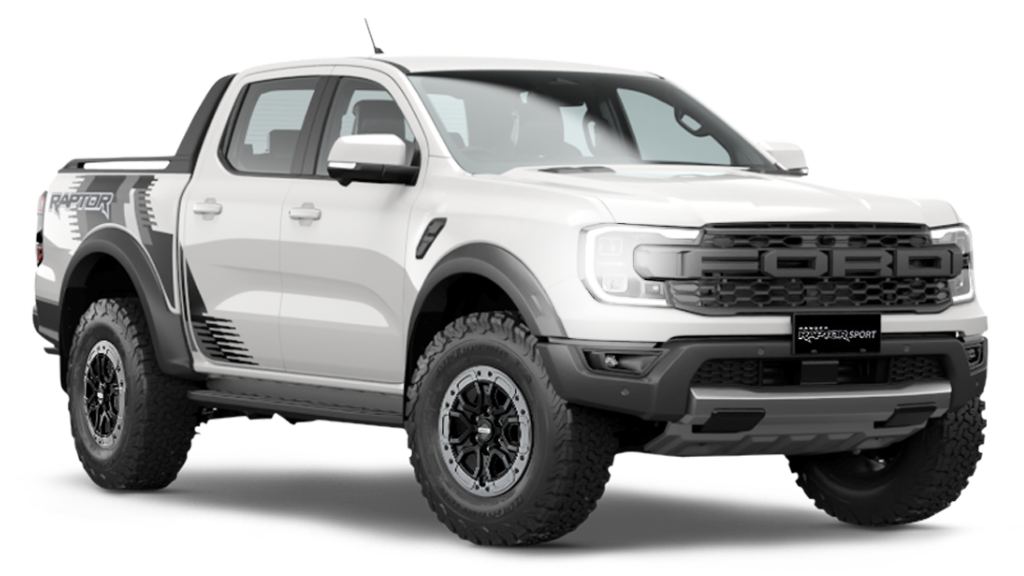

Next-Generation Ranger Sport
Designed to Outclass, Outperform, and Outlast
3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.18″ Alloy WheelsForm meets function with durable 18″ alloy wheels. Designed to handle tough tracks while looking sharp in the city, they define the Sport’s versatile character.3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.
18″ Alloy WheelsForm meets function with durable 18″ alloy wheels. Designed to handle tough tracks while looking sharp in the city, they define the Sport’s versatile character.
12″ Multi Touchscreen DisplayThis expansive 12″ display offers crystal-clear graphics and intuitive control for a smarter, more connected drive.LED Headlights C-Clamp DTRLPrecision-engineered LEDs and C-Clamp daytime running lamps offer a premium look and superior beam pattern, ensuring you stand out day or night, on or off the road.12″ Multi Touchscreen DisplayThis expansive 12″ display offers crystal-clear graphics and intuitive control for a smarter, more connected drive.
LED Headlights C-Clamp DTRLPrecision-engineered LEDs and C-Clamp daytime running lamps offer a premium look and superior beam pattern, ensuring you stand out day or night, on or off the road.
Two-Tone Sport InteriorTwo-tone sport interior blends modern comfort, athletic style, and long-lasting durability.Dual Tow HooksSerious capability starts with twin recovery hooks. Integrated directly into the frame, these sturdy points offer the rugged backup every off-road adventurer demands.Two-Tone Sport InteriorTwo-tone sport interior blends modern comfort, athletic style, and long-lasting durability.
Dual Tow HooksSerious capability starts with twin recovery hooks. Integrated directly into the frame, these sturdy points offer the rugged backup every off-road adventurer demands.
Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.
Model Specification
| Model | Ranger Sport 3.0L | Ranger Sport 2.0L |
|---|---|---|
| Engine | ||
| Type | 3.0L V6 Turbo Diesel | Diesel ( I4 ) With Single Turbo |
| Displacement (cc) | 2993 | 1996 |
| Max Power [kW(Ps)@rpm] | 184 kW (250)@ 3250 rpm | 125 kW(170) @ 3500 rpm |
| Max Torque (Nm@rpm) | 600 Nm @ 1750-2000 | 405 Nm @ 1750-2500 |
| Fuel Supply System | Commonrail Direct Injection | |
| Compression Ratio | 16:1 | |
| Transmission | ||
| Type | 10-Speed Automatic With SelectShift | |
| Electronic Shift On The Fly ( ESOF ) /4×4 Shift System | Electro‑Magnetic Transfer Case (EMTC) | Electronic Shift On The Fly ( ESOF ) |

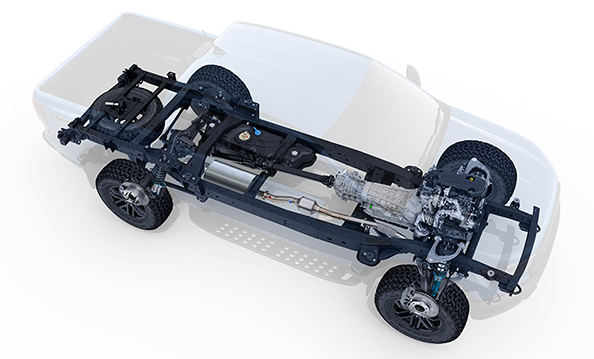

| Chassis & Suspension | ||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion | |
| Suspension ( Front) | Double Wishbone With Coil Spring | |
| Suspension (Rear) | Leaf Spring | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | Ventilated Disc (Front) / Drum (Rear) |
| Differential Type | E-Locking Rear Differential | |
| Tyres & Rims ( Spare Tyre ) | 255 / 65 R18, Alloy | |
| Measurements | ||
| Overall ( L X W X H) (mm) | 5,370 / 1,918 / 1,884 | |
| Wheelbase (mm) | 3270 | |
| Track (Front/Rear) (mm) | 1620/1620 | |
| Ground Clearance (mm) | 230 | |
| Cargo Bed ( L X W X H ) (mm) | 1,564/1,584/540 | |
| Kerb Weight (kg) | 2227 | |
| Gross Weight (kg) | 3230 | |
| Minimum Turning Circle (m) | 12.9 | |
| Water Wading (mm) | 800 | |
| Fuel Tank Capacity (L) | 80 | |
| Exterior Features | ||

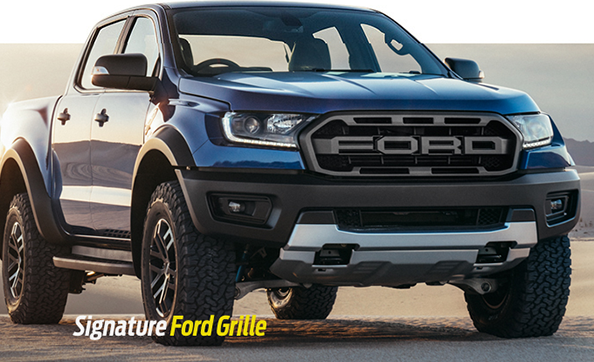

| Front Grille | Black | |
| Bumper (Front) | Body Color | |
| Bumper (Rear) | Black | |
| Door & Tailgate Handle | Black | |
| Side Mirror | Black | |
| Headlamps | LED Reflector | |
| Headlamp Leveling | Manual | |
| Rear Lights | LED – Mid | |
| Fog Lamps ( Front / Rear ) | LED Front & Standard Rear | |
| Stop Lamp | Standard | |
| Daytime Running Lights | C- Clamp Daytime Running Light | |
| Side Mirror (Power Adjustable & Foldable) | Standard | |
| Wiper System | Rain Sensing | |
| Bedliner | Standard | |
| Cargo Box Hook Point | 6 | |
| Side Steps | Standard | |
| Scuff Plate | Standard | |
| Underbody Protection Bash Plate / Skid Plate | Plastic Splash Protection Only | |
| Sports Bar | Standard | |
| Front & Rear Recovery Hooks | Front (2 Hooks) | |
| Easy Lift Tailgate / Tailgate Assist | Standard | |
| Rear Step Bumper | Standard With Box Step | |
| Interior Features | ||
| Steering Wheel Material | Vinyl | |
| Steering Wheel Type | 4-Spoke | |
| Steering Wheel (Adjustment) | Tilt & Telescopic | |
| Steering Wheel (Switches) | Standard | |
| Parking Brake | Electronic Parking Brake | Lever Hand Brake |
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | |
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit With Wireless Apple CarPlay™, Android Auto™, Bluetooth And Voice Recognition | |

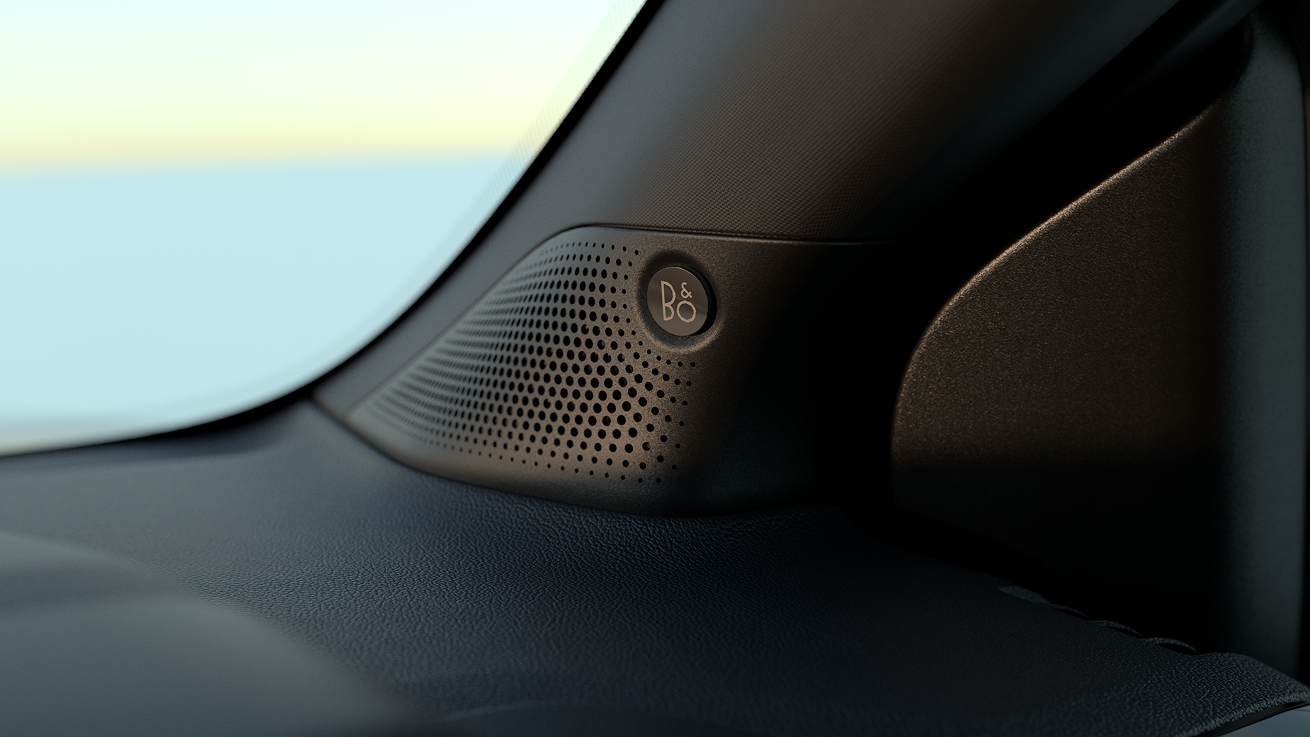

| Speakers | 4 | |
| SYNC® | SYNC® 4A | |
| Apple CarPlay & Android Auto | Support With Wireless Apple CarPlay™ | |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB Type-A / Rear: 1 USB Type-C, 1 USB Type-A) | |
| 12V Socket / Power Port DC 12V Outlet | Center Box | |
| Keyless Entry With Push Start Button | Standard | |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | |
| Rear Air Conditioning Vents | Standard | |
| Drive Mode | Normal, Eco, Tow/Haul, Slippery, Mud&Rut, Sand | |
| Instrument Cluster | 8" TFT Cluster Display | |
| Power Windows | Driver & Front Passenger 1- Touch Up / Down, Power Windows Rear | |
| Rear View Mirror | Auto Dimming (Electrochromic) | |
| Sun Visor | Standard With Driver & Passenger Mirror Insert | |
| Dome Light / Cabin Lamp / Ambient Light | Standard | |
| Windscreen Mounted USB Port | 1 | |
| Gear Knob Type | Leather Gear E-Shifter | Leather Gear Shift Knob |
| Interior Trim Colour | Ebony Black | |
| Instrument, Center Console & Door Panel Soft Pad | Door: Driver & Front Passenger | |

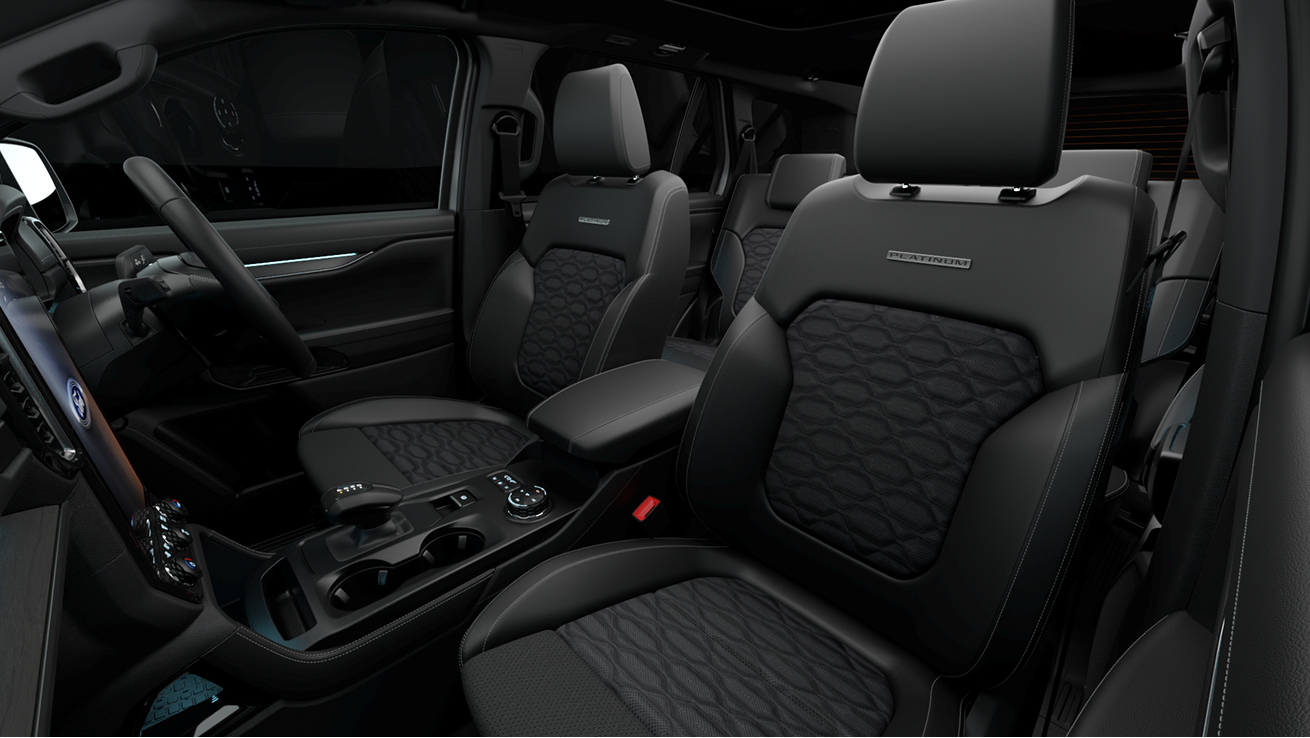

| Seats ( Materials) | Leather Shield Emboss Over Soho | |
| Driver Adjustable Seat | 6-Way Manual Adjustable Seat | |
| Front Passenger | 4-Way Manual Adjustable Seat | |
| Rear Seat Center Armrest | Standard | |
| Assist Handles | Standard (All Door) | |
| Carpet Mat | Standard | |
| Rear Window Defogger | Standard | |
| Spare Tire | 17'' Steel | |
| Wireless Charger / Qi Charger | Standard | |
| Pull-Out Cup Holder | Standard | |
| Glove Box Lid | Standard | |
| Safety | ||
| Advance | ||
| Cruise Control | Standard | |
| Lane Departure Warning & Assist (LDW) | Standard (Lane Change Warning And Aid) | |
| High Beam Assist | Automatic | |
| Speed Limiter | Standard | |
| Active | ||
| Speed Control | Standard | |
| Starter Start/Stop | Standard | – |
| Anti-Lock Braking System (ABS) | Standard | |
| Electronic Brake-Force Distribution (EBD) | Standard | |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard | |
| Traction Control System (TCS) | Standard | |
| Brake Assist (BA) | Standard | |
| Hill Descent Control ( HDC ) | Standard | |
| Hill Launch Assist (HLA ) | Standard | |
| Rollover Mitigation ( ROM ) | Standard | |
| Trailer Assist / Sway Assist | Standard | |
| Adaptive Load Control ( ALC ) | Standard | |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB ) | Standard | |
| Forward Collision Warning ( FCW ) | Standard | |
| Parking Sensors (Front / Rear ) | Front & Rear | |
| Reverse Camera / Rear View Camera | Standard | |
| Passive | ||
| SRS Airbags | 6 Airbags – Driver & Front Passenger, Sides & Curtain | |
| Front Seatbelts | 3-Point ELR X2 | |
| Rear Seatbelts | 3-Point ELR X3 | |
| Seatbelt Reminder | Driver & Front Passenger | |
| Seat Occupant Alert | Standard | |
| ISOFIX | With 2 Top Tether (Rear) | |
| Security | ||
| Remote Central Locking | Global & Selective | |
| Security | Perimeter Anti Theft And Valet Mode | |
| Security Alarm With Immobiliser | Standard | |
| Child Safety Locks | Standard | |
| Strength & Breadth Capabilities | ||
| Cargo Bed Volumetric Capacity ( Cu.mtr ) | 1,564 / 1,584 / 540 | |
| Maximum Payload (kg) | Up To 1,000 | |
| Towing Capacity (kg) | Up To 3,500 | |
| Water Wading Depth (mm) | 800 | |
| Angle Of Approach (Degree) | 30 | |
| Angle Of Departure (Degree) | 25.6 | |
| 5 Years Warranty | Standard | |
Expert Reviews

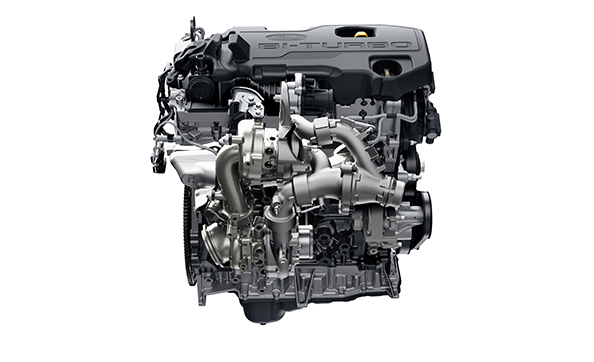

2.0L Bi-Turbo Diesel Engine
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**

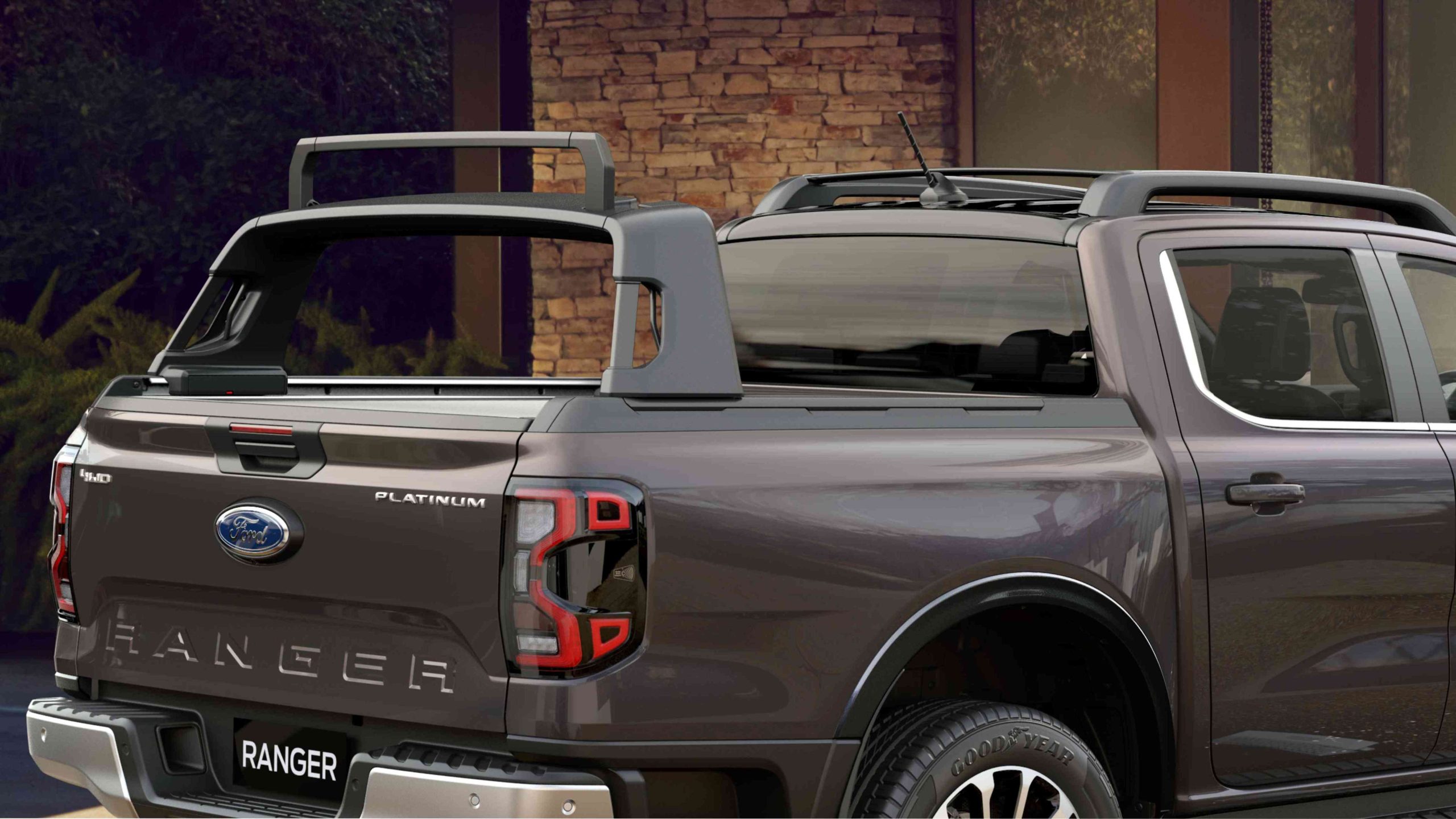

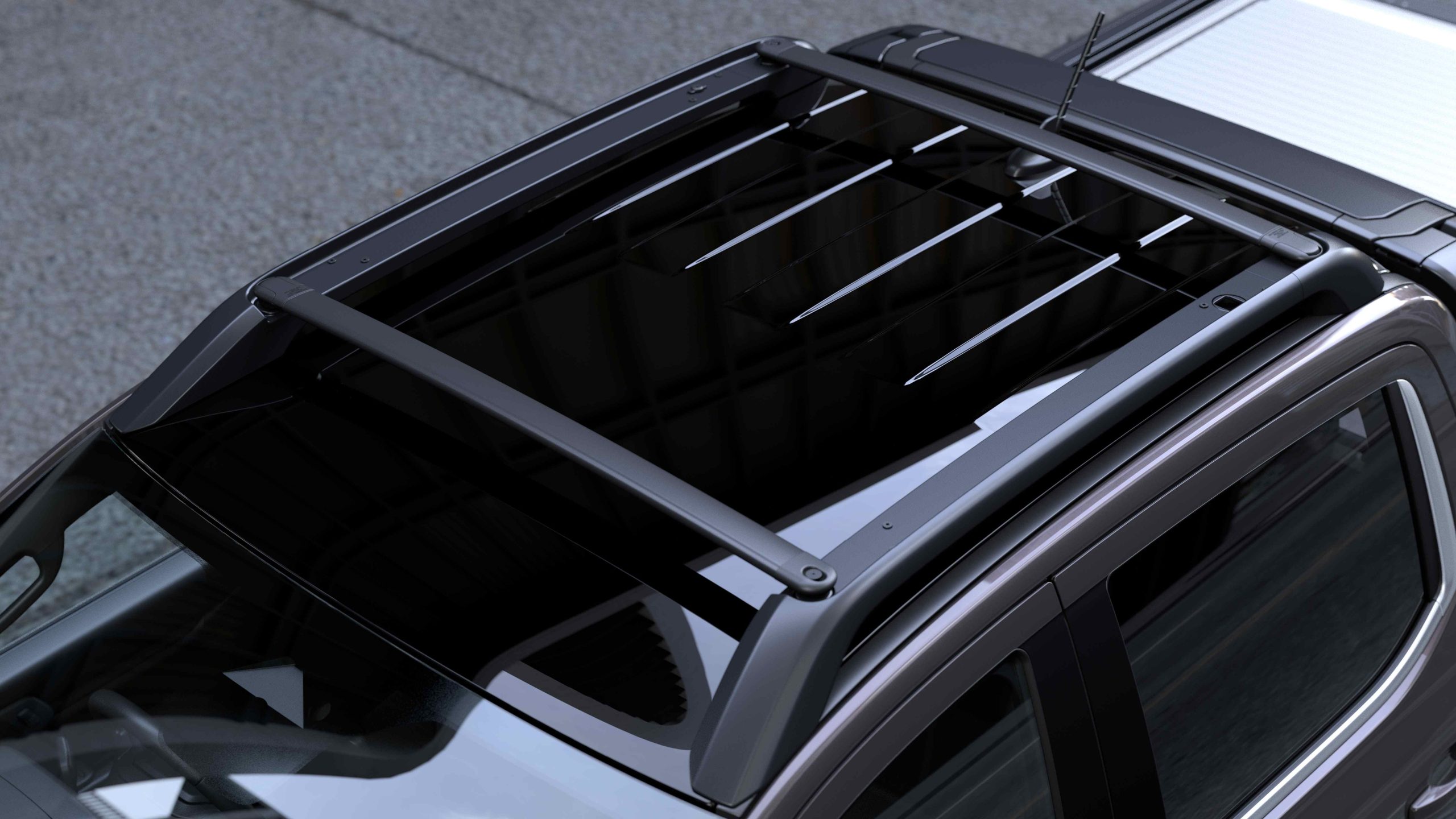

Next-Generation Ranger Platinum
Elegance Meets Refined Versatility
Model Specification
| Model | NEXT GEN RANGER PLATINUM 2.0L | NEXT GEN RANGER PLATINUM 3.0L |
|---|---|---|
| Engine | ||
| Type | Diesel ( I4 ) with Bi-Turbo | 3.0L V6 Turbo Diesel |
| Displacement (cc) | 1,996 | 2,993 |
| Max Power [kW (PS) @ rpm] | 154.50 KW (210) @ 3,750 RPM | 184 KW (250)@ 3,250 RPM |
| Max Torque (Nm @ rpm) | 500 NM @ 1,750 – 2,000 | 600 NM @ 1,750 – 2,000 |
| Fuel Supply System | Commonrail Direct Injection | |
| Compression Ratio | 16.0+ 0.5:1 | 16:01 |
| Transmission | ||
| Type | 10-Speed Automatic with SelectShift | |
| Electronic Shift On The Fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | Electro‑Magnetic Transfer Case (EMTC) |
| Chassis & Suspension | ||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pnion | |
| Suspension (Front) | Double Wishbone with Coil Spring | |
| Suspension (Rear) | Leaf Spring | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | |
| Differential Type | e-Locking Rear Differential | |

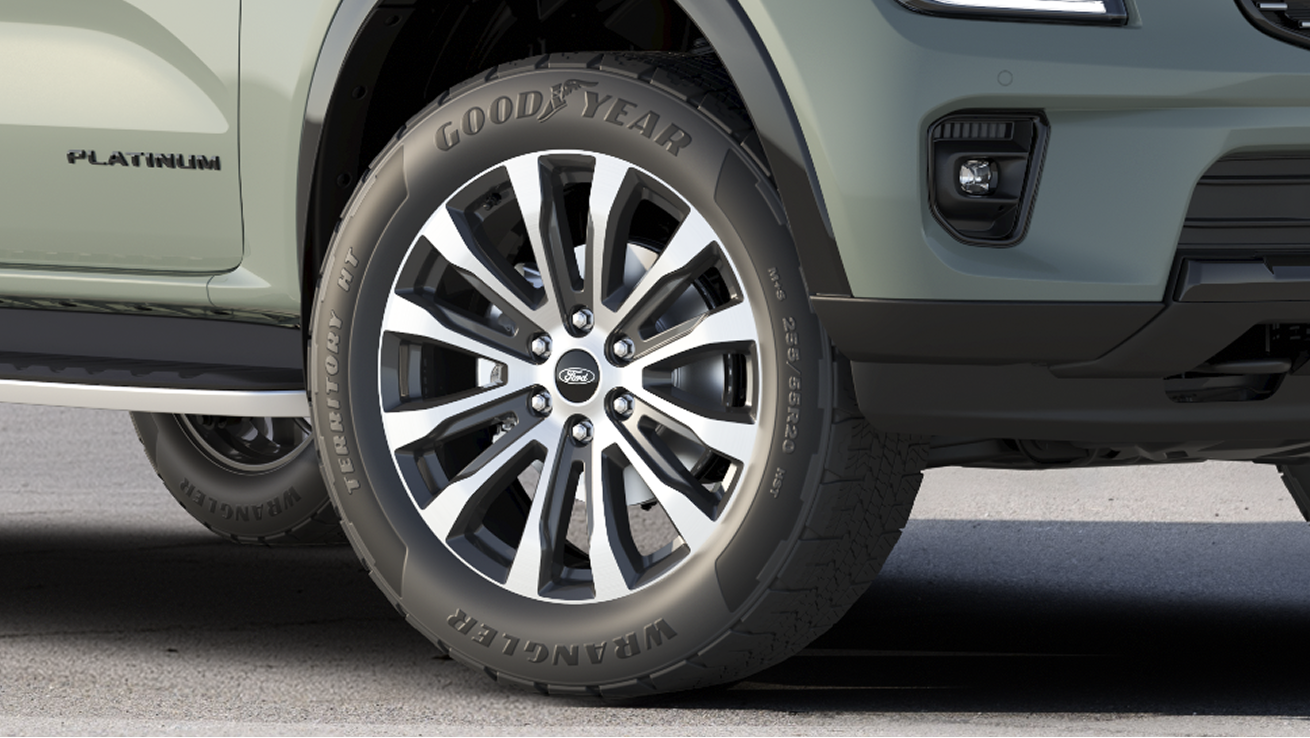

| Tyres & Rims (Spare Tyre) | 255/55 R20 | 255/55 R20, Alloy |
| Measurements | ||
| Overall (L x W x H) (mm) | 5,370 / 1,918 / 1,884 | |
| Wheelbase (mm) | 3270 | |
| Track (Front/Rear) (mm) | 1620/1620 | |
| Ground Clearance (mm) | 230 | |
| Cargo Bed (L x W x H) (mm) | 1,564 / 1,584 / 540 | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 | |
| Gross Weight (kg) | 3,230 | |
| Minimum Turning Circle (m) | 12.9 | |
| Water Wading (mm) | 800 | |
| Fuel Tank Capacity (L) | 80 | |
| Exterior Features | ||

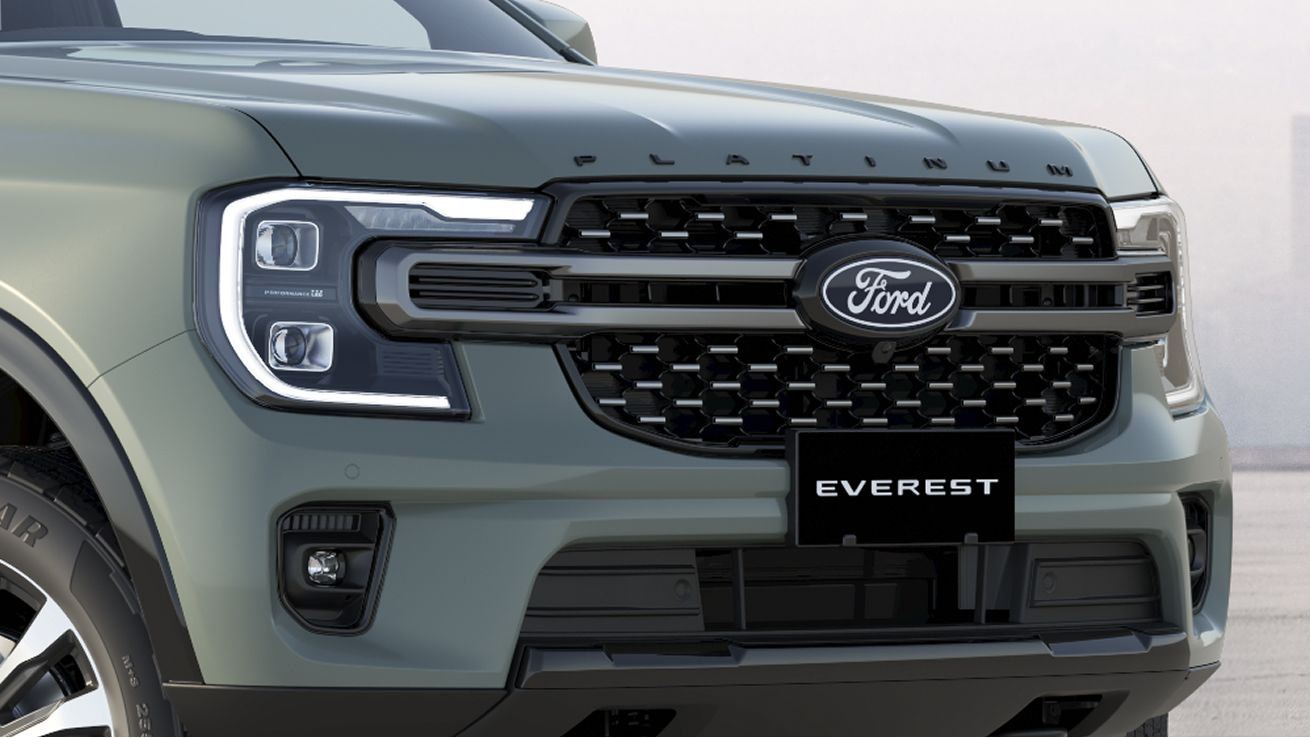

| Front Grille | Platinum Scheme with Chrome Surround | |
| Bumper (Front) | Body Coloured with Lower Accent | Body Color/Lower Accent |
| Bumper (Rear) | Platinum Scheme with Super Alloy Endcap | Painted Accent Color |
| Door & Tailgate Handle | Body Coloured / Black | Body Coloured |
| Side Mirror | – | Body Coloured |
| Headlamps | Performance LED Projector /MATRIX Headlamp with Auto High Beam | LED Projector |
| Headlamp Leveling | Automatic Levelling | |
| Rear Lights | – | LED – High |
| Fog Lamps (Front / Rear) | Front LED & Rear LED | LED Front & Standard Rear |
| Stop Lamp | LED Tailgate mounted | Standard |
| Daytime Running Lights | C- Clamp LED Daytime Running Light | |
| Side Mirror (Power Adjustable & Foldable) | With (Power Adjustable & Foldable) Puddle lamp | Standard With Puddle Lamp |
| Zone Lighting (360) | – | Standard |
| AC Outlet (400W) / Power Outlet | Standard | 2( Rear + Cargo) |
| Wiper System | Rain Sensing | |
| Bedliner | Standard | |
| Cargo Box Hook Point | 6 | |
| Side Steps | Standard | |
| Scuff Plate | Standard | |
| Underbody Protection Bash Plate / Skid Plate | Standard | Metal Front, Engine & Transfer Case Shield |
| Cargo LED Light | – | Standard |
| Roof Rails | Swing in Place Roof Rack | Swing in Place Roof Rails |
| Sports Bar | Flexible Rack System | |
| Front & Rear Recovery Hooks | Front | Front (2 Hooks) |
| Easy Lift Tailgate / Tailgate Assist | Standard | Standard With Dampers |
| Fender Flares | Standard | – |
| Rear Step Bumper | Standard with Box Step | |
| Hood Lettering | – | Standard |
| Power Roller Shutter | Power Roller Shutter | – |
| Cargo Management System | – | Adjustable Tie Down Cleat System |
| Interior Features | ||
| Steering Wheel Material | Leather with Control Switches | Leather |
| Steering Wheel Type | 4-Spoke | |
| Steering Wheel (Adjustment) | Tilt & Telescopic | |
| Steering Wheel (Switches) | Standard | |
| Accessories Switches | – | Standard |
| Parking Brake | Electric Parking Brake | |
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | |
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth and Voice Recognition | |
| Speakers | Bang & Olufsen with 8 Speakers | B&O Premium Audio System (8 Speakers) |
| SYNC® | SYNC® 4A | |
| Apple CarPlay & Android Auto | Support with Wireless Apple CarPlay™ | |
| USB Charging Port | 4 (Front: 1 USB type-C, 1 USB)(Rear: 1 USB type-C, 1 USB) | 4 (Front: 1 USB Type-C, 1 USB Type(Rear: 1 USB Type-C, 1 USB Type-A) |
| 12V Socket / Power Port DC 12V Outlet | Center Box | |
| Keyless Entry With Push-Start Button | Standard | |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | |
| Rear Air Conditioning Vents | Standard | |
| Drive Mode | Normal, Eco, Town/Haul, Slippery, Mud/Ruts & Sand | Normal,Eco,Tow/Haul,Slippery,Mud&Rut,Sand |
| Instrument Cluster | Colour Digital Instrument Cluster with Configurable Display – 12.4-inch | |
| Power Windows | Driver & Front Passenger One-Touch Up / Down | Driver, Front & Rear Passenger 1- Touch Up / Down |
| Rear View Mirror | Auto Dimming | Auto Dimming (ELECTROCHROMIC) |
| Sun Visor | Standard with Driver mirror insert | Standard with Driver & Passanger mirror insert |
| Dome Light/ Cabin Lamp/ Ambient Light | Standard with Ambiance Light | |
| Windscreen Mounted USB Port | 1 | |
| Gear Knob Type | Leather Gear Shift Knob | Leather Gear E-Shifter |
| Interior Trim Colour | Ebony Black | |
| Instrument, Center Console & Door Panel Soft Pad | Door: Driver & Front Passenger | Instrument, Center control & Door:Driver & Front Passanger |
| Heated & Ventilated Seats | Driver & Front Passenger | |
| Seats (Materials) | Leather Accented Quilted with Platinum logo | |
| Driver Adjustable Seat | 10-Way Power with Memory Setting | |
| Front Passenger | 10-Way Power | 10-Way Power Adjustable seat |
| Seats / Lumbar Support | Standard | |
| Rear Seat Center Armrest | – | Standard |
| Assist Handles | Standard (All Doors) | |
| 230v AC Outlet (150w) / Power Outlet | Standard | |
| Carpet Mat | – | Standard |
| Rear Window Defogger | Standard | |
| Spare Tire | 20" | 20" Aluminium |
| Wireless Charger / QI Charger | Standard | |
| Pull-out Cup Holder | Standard | |
| Glove Box Lid | With Damper | Standard |
| Safety | ||
| Advance | ||
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centering | |
| Lane Departure Warning & Assist (LDW) | Standard (LANE CHANGE WARNING AND AID ) | |
| Blind Spot Detection System (BLIS) | Standard | |
| High Beam Assist | Automatic | |
| Cross Traffic Alert (Rear) | Standard | |
| Speed Limiter | Standard | |
| Tyre Pressure Monitoring System (TPMS) | Standard | |
| 360 Camera/ Panorama Camera | Standard | |
| Evasive Steer Assist | Standard | |
| Active | ||
| Speed Control | – | Standard |
| Starter Start/Stop | – | Standard |
| Anti-Lock Braking System (ABS) | Standard | |
| Electronic Brake-Force Distribution (EBD) | Standard | |
| Electronic Stability Control (ESC) / Vehicle Stability | Electronic Stability Control (ESC) with Traction Control | Standard |
| Traction Control System (TCS) | Standard | |
| Brake Assist (BA) | Standard | |
| Auto Hold | – | Standard |
| Hill Descent Control (HDC) | Standard | |
| Hill Launch Assist (HLA) | Standard | |
| Rollover Mitigation (ROM) | Standard | |
| Trailer Assist / Sway Assist | Trailer Sway Control (TSC) | Standard |
| Adaptive Load Control (ALC) | Standard | |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB) | Standard | |
| Forward Collision Warning (FCW) | Standard | |
| Brake Override System (BOS) | Reverse Brake Assist | Standard |
| Parking Sensors (Front / Rear) | Front & Rear | Front & Rear |
| 360 Camera | Standard | |
| Passive | ||
| SRS Airbags | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Driver Knee SRS Airbag | |
| Front Seatbelts | 3-Point ELR x2 | |
| Rear Seatbelts | 3-Point ELR x3 | |
| Seatbelt Reminder | Driver & Front Passenger | |
| Seat Occupant Alert | – | Standard |
| ISOFIX | – | With 2 top tether (rear) |
| Security | ||
| Remote Central Locking | Global & Selective | |
| Security | MyKey & Perimeter Anti theft ,Valet Mode | Perimeter Anti theft & Volumetric and Inclination Perimeter Alarm System with Battery Backup Sounder and Valet Mode |
| Security Alarm With Immobiliser | Standard | |
| Child Safety Locks | Standard | |
| Tailgate Lock | Standard | Automatic – No Lock Cylinder |
| Strength & Breadth Capabilities | ||
| Cargo Bed Volumetric Capacity (cu.mtr) | – | 1,564 / 1,584 / 540 |
| Maximum Payload (kg) | Up to 1000 | |
| Towing Capacity (kg) | Up to 3500 | |
| Water Wading Depth (mm) | 800 | |
| Angle Of Approach (Degree) | 30 | |
| Angle Of Departure (Degree) | 25.6 | |
| 5 Years Warranty | Standard | |
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger Raptor
Designed to Outclass, Outperform, and Outlast
Model Specification
| Model | (NEW) NEXT GEN RANGER RAPTOR 3.0L V6 EcoBoost | NEXT GEN RANGER RAPTOR 3.0L V6 EcoBoost | NEXT GEN RANGER RAPTOR 2.0L (Diesel) |
|---|---|---|---|
| Engine | |||
| Type | Petrol ( V6 ) with Twin-Turbo | Diesel ( I4 ) with Bi-Turbo | |
| Displacement(cc) | 2,956 | 1,996 | |
| Max Power [kW (PS) @ rpm] | 292.00( 397 ) @ 5,650 | 154.50( 210 ) @ 3,750 | |
| Max Torque (Nm @ rpm) | 583 @ 3,500 | 500 @ 1,750 – 2,000 | |
| Fuel Supply System | Direct Injection | Commonrail Direct Injection | |
| Compression Ration | 10.5:1 | 16.0+ 0.5:1 | |
| Transmission | |||
| Transmission Type | 10-Speed Automatic | 10-Speed Automatic with SelectShift | |
| Paddle Shift | Standard | ||
| Electronic Shift-on-the-fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | ||
| Chassis & Suspension | |||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion | ||
| Suspension (Front) | Double Wishbone with Coil Spring – FOX 2.5" LIVE VALVE SHOCK | ||
| Suspension (Rear) | Coil Spring – FOX 2.5" Live Valve Shock with Watt's Linkage | Coil Spring with Watt's Linkage | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | ||
| Drivetrain | 4A/ 2H/ 4H/ 4L | ||
| Differential Type | e-Locking Front & Rear Differential | e-Locking Rear Differential | |
| Tyres & Wheels | 285 / 70 R17, 17" Beadlock Style Wheel with All-terrain BF Goodrich | 285 / 70 R17, Alloy with All-terrain BF Goodrich | |
| Measurements | |||
| Overall (L x W x H) (mm) | 5381 / 2028 / 1922 | ||
| Wheelbase (mm) | 3270 | ||
| Track (Front/Rear) (mm) | 1710/1710 | ||
| Ground Clearance (mm) | 265 | ||
| Kerb Weight (kg) | 2430 | 2423 | |
| Gross Weight (kg) | 3130 | 3140 | |
| Minimum Turning Radius (m) | 13.2 | ||
| Water Wading (mm) | 850 | 800 | |
| Fuel Tank Capacity (Litres) | 80 | ||
| Exterior Features | |||
| Front Grille | FORD Block | ||
| Bumper (Front) | Raptor Scheme | ||
| Bumper (Rear) | Raptor Scheme | ||
| Door & Tailgate Handle | Body Coloured / Black | ||
| Headlamps | MATRIX Headlamp with Auto High Beam | ||
| Headlamps Levelling | Automatic | ||
| Rear Lights | LED | – | |
| Fog Lamps (Front & Rear) | Front LED & Rear LED | ||
| Stop Lamp | LED Tailgate mounted | ||
| Daytime Running Lights | C- Clamp LED Daytime Running Light | ||
| Side Mirror | With (Power Adjustable & Foldable) Puddle lamp | ||
| Side Mirror with Turning Lights | Standard | ||
| 230v (400w Max) 3 Pin Socket Cargo Bed | Standard | ||
| Wiper System | Rain Sensing | ||
| Bedliner | Standard | ||
| Cargo Box Hook Point | 6 | ||
| Side Steps | Raptor Scheme | Standard | |
| Scuff Plate | Ford Performance | ||
| Underbody Protection | Standard | ||
| Front & Rear Recovery Hooks | 2 Front | ||
| Easy Lift Tailgate | Standard | ||
| Fender Flares | Standard | ||

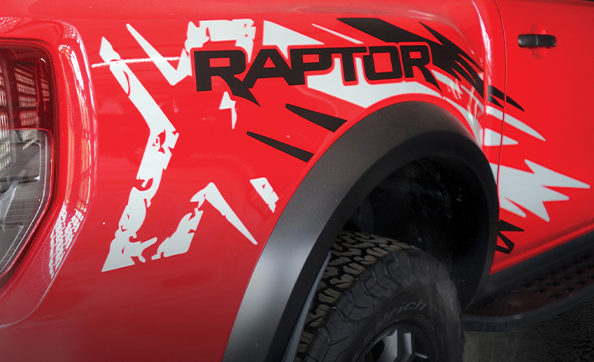

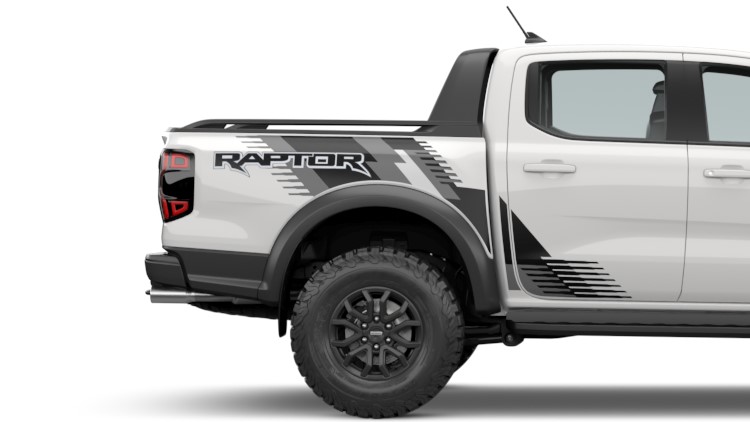

| Side Decal | Full Body | – | |
| Sport Hoop | Standard | – | |
| Interior Features | |||
| Steering Wheel Material | SPORT Leather with Control Switches | Leather with Control Switches | |
| Steering Wheel Type | 4-Spoke | ||
| Steering Wheel (Adjustment) | Tilt & Telescopic | ||
| Steering Wheel (Switches) | Standard with Call/Hang Up Button | ||
| Parking Brake | Electric Parking Brake | ||
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | ||
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth and Voice Recognition | |
| Speakers | Bang & Olufsen with 8 Speakers | ||
| Apple CarPlay & Android Auto | Support with Wireless Apple CarPlay™ | ||
| SYNC® | SYNC® 4A | ||
| USB Charging Port | 4 (Front: 1 USB type-C , 1 USB type-A)(Rear: 1 USB type-C , 1 USB type-A) | 4 (Front: 1 USB type-C , 1 USB)(Rear: 1 USB type-C , 1 USB) | |
| 12V Socket / Power Port DC 12V. Outlet | Center Box | ||
| Keyless Entry with Push-Start Button | Standard | ||
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | ||
| Rear Air Conditioning Vents | Standard | ||
| Drive Mode | Normal,Sport, Slippery,Mud/Ruts, Sand, Baja and Rock (7) | ||
| Meter Panel | 12.4" TFT Multi Information Display | ||
| Power Windows | Driver & Front Passenger One-Touch Up / Down | ||
| Rear View Mirror | Auto Dimming | ||
| Sun Visor | Standard | ||
| Light / Cabin | STANDARD with Ambiance Light | ||
| Windscreen Mounted USB Port | 1 | ||
| Gear Knob Type | Leather E-Shifter | ||
| Interior Trim Color | Ebony Black | ||
| Instrument, Center Console & Door Panel Soft Pad | Seude Leather -Door:Driver & Front Passanger | ||
| Seats (Materials) | Leather | ||
| Driver Adjustable Seat | 10-Way Power Adjustable Seat | ||
| Front Passenger | 8-Way Manual Adjustable Seat | ||
| Lumbar Support | Standard | ||
| Assist Handles | Standard (All Doors) | ||
| 230V AC Outlet (400W) / Power Outlet | Standard | ||
| Carpet Mat | Raptor Scheme | ||
| Rear Window Defogger | Standard | ||
| Full Size Spare Tyre | Standard | ||
| Wireless Charger / Qi Charger | Standard | ||
| Pull-out Cup Holder | Standard | ||
| Safety | |||
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring | ||
| Emergency Stop Signal (ESS) | Standard | ||
| Lane Departure Warning & Assist (LDW) | Standard (LANE CHANGE WARNING AND AID ) | ||
| Blind Spot Detection System | Standard | ||
| High Beam Assist | Automatic | ||
| Rear Cross Traffic Alert | Standard | ||
| Manual Speed Limiter (MSL) | Standard | ||
| Multi Collision Brake | Standard | ||
| Tyre Pressure Monitoring System (TPMS) | Standard | ||
| 360° Camera | Standard | ||
| Evasive Steer Assist | Standard | ||
| Anti-Lock Braking System (ABS) | Standard | ||
| Electronic Brake-Force Distribution (EBD) | Standard | ||
| Electronic Stability Control (ESC) | Standard | ||
| Traction Control System (TCS) | Standard | ||
| Brake Assist (BA) | Standard | ||
| Hill Descent Control (HDC) | Standard | ||
| Hill Launch Assist (HLA) | Standard | ||
| Rollover Mitigation (ROM) | Standard | ||
| Trailer Sway Assist | Standard | ||
| Adaptive Load Control (ALC) | Standard | ||
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard | ||
| Forward Collision Warning (FCW) | Standard | ||
| Reverse Brake Assist | Standard | ||
| Parking Sensors (Front/Rear) | Standard | ||
| SRS Airbags | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Drive Knee SRS Airbag | ||
| Front Seatbelts | 3-Point ELR x2 | ||
| Rear Seatbelts | 3-Point ELR x3 | ||
| Seatbelt Reminder | Driver & Front Passenger | ||
| ISOFIX | With 2 Top Tether (Rear) | ||
| Remote Central Locking | Global & Selective | ||
| Security | MyKey & Perimeter Anti Theft with Alarm Horn, Valet Mode | ||
| MyKey | Standard | ||
| Security Alarm with Immobiliser | Standard | ||
| Child Safety Lock | Standard | ||
| Tailgate Lock | Standard | ||
Expert Reviews
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger Platinum
Designed to Outclass, Outperform, and Outlast
3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.
Platinum GrilleFeatures a unique accented mesh grille, signature Matrix LED C-Clamp headlamps, and prominent “PLATINUM” hood badging.3.0L V6 EngineThe powerful 3.0L V6 Turbo Diesel engine delivers smooth, commanding torque and maximum pulling power for any adventure.
Platinum GrilleFeatures a unique accented mesh grille, signature Matrix LED C-Clamp headlamps, and prominent “PLATINUM” hood badging.
Alloy Wheels20″ machine-faced alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.
Swing-in-place Roof RailRoof rails featuring integrated crossbars that easily swing across the roof, allowing you to transport long cargo without requiring extra aftermarket racks.Alloy Wheels20″ machine-faced alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.
Swing-in-place Roof RailRoof rails featuring integrated crossbars that easily swing across the roof, allowing you to transport long cargo without requiring extra aftermarket racks.
Flexible Roof RackA versatile sliding rack system that adjusts across five locking positions along the truck bed to easily carry longer gear like kayaks or ladders.
Cargo Management SystemAdjustable tie down points to keep your load secured and organised.Flexible Roof RackA versatile sliding rack system that adjusts across five locking positions along the truck bed to easily carry longer gear like kayaks or ladders.
Cargo Management SystemAdjustable tie down points to keep your load secured and organised.
Premium Bang & Olufsen® Sound SystemHigh-fidelity 8-speaker system with tailored cabin acoustics, delivering rich, immersive audio and crystal-clear sound quality for every journey.
Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.Premium Bang & Olufsen® Sound SystemHigh-fidelity 8-speaker system with tailored cabin acoustics, delivering rich, immersive audio and crystal-clear sound quality for every journey.
Full-time 4WDFeaturing an intelligent 4A mode, Full-time 4WD automatically optimizes power distribution for maximum grip on any surface.
Model Specification
| Model | NEXT GEN RANGER PLATINUM 2.0L | NEXT GEN RANGER PLATINUM 3.0L |
|---|---|---|
| Engine | ||
| Type | Diesel ( I4 ) with Bi-Turbo | 3.0L V6 Turbo Diesel |
| Displacement (cc) | 1,996 | 2,993 |
| Max Power [kW (PS) @ rpm] | 154.50 KW (210) @ 3,750 RPM | 184 KW (250)@ 3,250 RPM |
| Max Torque (Nm @ rpm) | 500 NM @ 1,750 – 2,000 | 600 NM @ 1,750 – 2,000 |
| Fuel Supply System | Commonrail Direct Injection | |
| Compression Ratio | 16.0+ 0.5:1 | 16:01 |
| Transmission | ||
| Type | 10-Speed Automatic with SelectShift | |
| Electronic Shift On The Fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | Electro‑Magnetic Transfer Case (EMTC) |
| Chassis & Suspension | ||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pnion | |
| Suspension (Front) | Double Wishbone with Coil Spring | |
| Suspension (Rear) | Leaf Spring | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | |
| Differential Type | e-Locking Rear Differential | |
| Tyres & Rims (Spare Tyre) | 255/55 R20 | 255/55 R20, Alloy |
| Measurements | ||
| Overall (L x W x H) (mm) | 5,370 / 1,918 / 1,884 | |
| Wheelbase (mm) | 3270 | |
| Track (Front/Rear) (mm) | 1620/1620 | |
| Ground Clearance (mm) | 230 | |
| Cargo Bed (L x W x H) (mm) | 1,564 / 1,584 / 540 | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 | |
| Gross Weight (kg) | 3,230 | |
| Minimum Turning Circle (m) | 12.9 | |
| Water Wading (mm) | 800 | |
| Fuel Tank Capacity (L) | 80 | |
| Exterior Features | ||
| Front Grille | Platinum Scheme with Chrome Surround | |
| Bumper (Front) | Body Coloured with Lower Accent | Body Color/Lower Accent |
| Bumper (Rear) | Platinum Scheme with Super Alloy Endcap | Painted Accent Color |
| Door & Tailgate Handle | Body Coloured / Black | Body Coloured |
| Side Mirror | – | Body Coloured |
| Headlamps | Performance LED Projector /MATRIX Headlamp with Auto High Beam | LED Projector |
| Headlamp Leveling | Automatic Levelling | |
| Rear Lights | – | LED – High |
| Fog Lamps (Front / Rear) | Front LED & Rear LED | LED Front & Standard Rear |
| Stop Lamp | LED Tailgate mounted | Standard |
| Daytime Running Lights | C- Clamp LED Daytime Running Light | |
| Side Mirror (Power Adjustable & Foldable) | With (Power Adjustable & Foldable) Puddle lamp | Standard With Puddle Lamp |
| Zone Lighting (360) | – | Standard |
| AC Outlet (400W) / Power Outlet | Standard | 2( Rear + Cargo) |
| Wiper System | Rain Sensing | |
| Bedliner | Standard | |
| Cargo Box Hook Point | 6 | |
| Side Steps | Standard | |
| Scuff Plate | Standard | |
| Underbody Protection Bash Plate / Skid Plate | Standard | Metal Front, Engine & Transfer Case Shield |
| Cargo LED Light | – | Standard |
| Roof Rails | Swing in Place Roof Rack | Swing in Place Roof Rails |
| Sports Bar | Flexible Rack System | |
| Front & Rear Recovery Hooks | Front | Front (2 Hooks) |
| Easy Lift Tailgate / Tailgate Assist | Standard | Standard With Dampers |
| Fender Flares | Standard | – |
| Rear Step Bumper | Standard with Box Step | |
| Hood Lettering | – | Standard |
| Power Roller Shutter | Power Roller Shutter | – |
| Cargo Management System | – | Adjustable Tie Down Cleat System |
| Interior Features | ||
| Steering Wheel Material | Leather with Control Switches | Leather |
| Steering Wheel Type | 4-Spoke | |
| Steering Wheel (Adjustment) | Tilt & Telescopic | |
| Steering Wheel (Switches) | Standard | |
| Accessories Switches | – | Standard |
| Parking Brake | Electric Parking Brake | |
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | |
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth and Voice Recognition | |
| Speakers | Bang & Olufsen with 8 Speakers | B&O Premium Audio System (8 Speakers) |
| SYNC® | SYNC® 4A | |
| Apple CarPlay & Android Auto | Support with Wireless Apple CarPlay™ | |
| USB Charging Port | 4 (Front: 1 USB type-C, 1 USB)(Rear: 1 USB type-C, 1 USB) | 4 (Front: 1 USB Type-C, 1 USB Type(Rear: 1 USB Type-C, 1 USB Type-A) |
| 12V Socket / Power Port DC 12V Outlet | Center Box | |
| Keyless Entry With Push-Start Button | Standard | |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | |
| Rear Air Conditioning Vents | Standard | |
| Drive Mode | Normal, Eco, Town/Haul, Slippery, Mud/Ruts & Sand | Normal,Eco,Tow/Haul,Slippery,Mud&Rut,Sand |
| Instrument Cluster | Colour Digital Instrument Cluster with Configurable Display – 12.4-inch | |
| Power Windows | Driver & Front Passenger One-Touch Up / Down | Driver, Front & Rear Passenger 1- Touch Up / Down |
| Rear View Mirror | Auto Dimming | Auto Dimming (ELECTROCHROMIC) |
| Sun Visor | Standard with Driver mirror insert | Standard with Driver & Passanger mirror insert |
| Dome Light/ Cabin Lamp/ Ambient Light | Standard with Ambiance Light | |
| Windscreen Mounted USB Port | 1 | |
| Gear Knob Type | Leather Gear Shift Knob | Leather Gear E-Shifter |
| Interior Trim Colour | Ebony Black | |
| Instrument, Center Console & Door Panel Soft Pad | Door: Driver & Front Passenger | Instrument, Center control & Door:Driver & Front Passanger |
| Heated & Ventilated Seats | Driver & Front Passenger | |
| Seats (Materials) | Leather Accented Quilted with Platinum logo | |
| Driver Adjustable Seat | 10-Way Power with Memory Setting | |
| Front Passenger | 10-Way Power | 10-Way Power Adjustable seat |
| Seats / Lumbar Support | Standard | |
| Rear Seat Center Armrest | – | Standard |
| Assist Handles | Standard (All Doors) | |
| 230v AC Outlet (150w) / Power Outlet | Standard | |
| Carpet Mat | – | Standard |
| Rear Window Defogger | Standard | |
| Spare Tire | 20" | 20" Aluminium |
| Wireless Charger / QI Charger | Standard | |
| Pull-out Cup Holder | Standard | |
| Glove Box Lid | With Damper | Standard |
| Safety | ||
| Advance | ||
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centering | |
| Lane Departure Warning & Assist (LDW) | Standard (LANE CHANGE WARNING AND AID ) | |
| Blind Spot Detection System (BLIS) | Standard | |
| High Beam Assist | Automatic | |
| Cross Traffic Alert (Rear) | Standard | |
| Speed Limiter | Standard | |
| Tyre Pressure Monitoring System (TPMS) | Standard | |
| 360 Camera/ Panorama Camera | Standard | |
| Evasive Steer Assist | Standard | |
| Active | ||
| Speed Control | – | Standard |
| Starter Start/Stop | – | Standard |
| Anti-Lock Braking System (ABS) | Standard | |
| Electronic Brake-Force Distribution (EBD) | Standard | |
| Electronic Stability Control (ESC) / Vehicle Stability | Electronic Stability Control (ESC) with Traction Control | Standard |
| Traction Control System (TCS) | Standard | |
| Brake Assist (BA) | Standard | |
| Auto Hold | – | Standard |
| Hill Descent Control (HDC) | Standard | |
| Hill Launch Assist (HLA) | Standard | |
| Rollover Mitigation (ROM) | Standard | |
| Trailer Assist / Sway Assist | Trailer Sway Control (TSC) | Standard |
| Adaptive Load Control (ALC) | Standard | |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB) | Standard | |
| Forward Collision Warning (FCW) | Standard | |
| Brake Override System (BOS) | Reverse Brake Assist | Standard |
| Parking Sensors (Front / Rear) | Front & Rear | Front & Rear |
| 360 Camera | Standard | |
| Passive | ||
| SRS Airbags | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Driver Knee SRS Airbag | |
| Front Seatbelts | 3-Point ELR x2 | |
| Rear Seatbelts | 3-Point ELR x3 | |
| Seatbelt Reminder | Driver & Front Passenger | |
| Seat Occupant Alert | – | Standard |
| ISOFIX | – | With 2 top tether (rear) |
| Security | ||
| Remote Central Locking | Global & Selective | |
| Security | MyKey & Perimeter Anti theft ,Valet Mode | Perimeter Anti theft & Volumetric and Inclination Perimeter Alarm System with Battery Backup Sounder and Valet Mode |
| Security Alarm With Immobiliser | Standard | |
| Child Safety Locks | Standard | |
| Tailgate Lock | Standard | Automatic – No Lock Cylinder |
| Strength & Breadth Capabilities | ||
| Cargo Bed Volumetric Capacity (cu.mtr) | – | 1,564 / 1,584 / 540 |
| Maximum Payload (kg) | Up to 1000 | |
| Towing Capacity (kg) | Up to 3500 | |
| Water Wading Depth (mm) | 800 | |
| Angle Of Approach (Degree) | 30 | |
| Angle Of Departure (Degree) | 25.6 | |
| 5 Years Warranty | Standard | |
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger XL
Designed to Outclass, Outperform, and Outlast
Bold Front FaceCapable and reliable, the XL is ready to work. The bold front shows signature Built Ford Tough design, with daytime running lamps framing the black grille.
Durable WheelsIdeal for rugged conditions and heavy loads, the XL comes with a solid and durable 16″ steel wheels.Bold Front FaceCapable and reliable, the XL is ready to work. The bold front shows signature Built Ford Tough design, with daytime running lamps framing the black grille.
Durable WheelsIdeal for rugged conditions and heavy loads, the XL comes with a solid and durable 16″ steel wheels.
New 12″ Multi Touchscreen DisplayNewly introduced to the XL, a 12″ hi-tech multi touchscreen display with a tough, truck-inspired look.
Dark Interior FinishXL features a tough but stylish interior with incredibly comfortable and extremely durable materials in dark colours.New 12″ Multi Touchscreen DisplayNewly introduced to the XL, a 12″ hi-tech multi touchscreen display with a tough, truck-inspired look.
Dark Interior FinishXL features a tough but stylish interior with incredibly comfortable and extremely durable materials in dark colours.
Rear Box StepAttached directly to the frame, this tough integrated step makes accessing the cargo area easier and safer than ever before.
1,000kg Payload CapacityLarge 1,000 kg cargo bed fits full-size Euro pallets and standard plywood (1,564 mm L × 1,584 mm W × 540 mm H).Rear Box StepAttached directly to the frame, this tough integrated step makes accessing the cargo area easier and safer than ever before.
1,000kg Payload CapacityLarge 1,000 kg cargo bed fits full-size Euro pallets and standard plywood (1,564 mm L × 1,584 mm W × 540 mm H).
Model Specification
| Model | Next-Generation Ranger XL 2.0L AT |
|---|---|
| Engine | |
| Type | Diesel ( I4 ) with Single Turbo |
| Displacement (CC) | 1,996 |
| Max Power [KW(Ps)@rpm] | 125 KW(170) @ 3500 RPM |
| Max Torque (Nm@rpm) | 405 NM @ 1750-2500 |
| Fuel Supply System | Commonrail Direct Injection |
| Compression Ratio | 16:1 |
| Transmission | |
| Transmission Type | 10-Speed Automatic with SelectShift |
| Paddle Shift | – |
| Electronic Shift-on-the-fly (ESOF) | Standard |
| Chassis & Suspension | |
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension (Front) | Double Wishbone with Coil Spring |
| Suspension (Rear) | Leaf Spring |
| Brakes (Front / Rear) | Ventilated Disc / Drum |
| Differential Type | E-Locking Rear Differential |
| Tyres & Rims (Spare Tyre) | 255/70 R16, Steel |
| Measurements | |
| Overall (L x W x H) (mm) | 5,370 / 1,918 / 1,884 |
| Wheelbase (mm) | 3,270 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 230 |
| Cargo Bed (L x W x H) (mm) | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 |
| Gross Weight (kg) | 3,230 |
| Minimum Turning Radius (m) | 12.9 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Features | |
| Front Grille | Black |
| Bumper (Front) | Body Colour |
| Bumper (Rear) | Black |
| Door & Tailgate Handle | Black |
| Side Mirror | Black |
| Headlamps | Halogen |
| Headlamp Leveling | Manual |
| Rear Lights | Halogen |
| Fog Lamps (Front / Rear) | Standard (Rear Only) |
| LED Tailgate Mounted Stop Lamp | Standard |
| Daytime Running Lights | Standard |
| Side Mirror (Power Adjustable & Foldable) | Standard |
| Zone Lighting (360) | – |
| AC Outlet (400W) / Power Outlet | – |
| Wiper System | Intermittent Variable |
| Bedliner | Standard |
| Cargo Box Hooks Point | 6 |
| Side Steps | Standard |
| Scuff Plate | Standard |
| Underbody Protection Bash Plate / Skid Plate | Plastic Splash Protection Only |
| Cargo LED Light | Standard |
| Roof Rails | – |
| Sport Bar | Standard |
| Front Recovery Hooks | Front (1 Hook) |
| Easy Lift Tailgate / Tailgate Assist | Standard |
| Guard Frame | – |
| Fender Flares | – |
| Side Decal | – |
| Rear Step Bumper | Standard With Box Step |
| Hood Lettering | – |
| Power Roller Shutter | – |
| Cargo Management System | – |
| Interior Feature | |
| Steering Wheel Material | Polyurethane |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Steering Wheel (Switches) | Standard |
| Accessories Switches | – |
| Parking Brake | Lever Hand Brake |
| Lane Changing Signal | Intelligent 3 Blink Turn Signal |
| Audio System/Infotainment | 12″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM, Bluetooth and Voice Recognition |
| Speakers | 4 |
| SYNC® | SYNC®4A |
| Apple CarPlay & Android Auto | Support With Wireless Apple CarPlayTM |
| USB Charging Ports | 4 (Front: 1 USB Type-C, 1 USB Type-A / Rear: 1 USB Type-C, 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V Outlet | Center Box |
| Keyless Entry with Push-Start Button (PEPS) | – |
| Air Conditioner/Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Vents | Standard |
| Drive Mode | – |
| Instrument Cluster | 8″ TFT Cluster Display |
| Power Windows | Driver & Front Passenger 1-Touch Up/Down, Power Windows Rear |
| Rear View Mirror | Standard |
| Sun Visor | Standard |
| Dome Light | Standard |
| Windscreen Mounted USB Port | – |
| Gear Knob Type | Molded Gear Shift Knob |
| Interior Trim Colour | Ebony Black |
| Instrument, Center Console & Door Panel Soft Pad | – |
| Heated & Ventilated Seats | – |
| Seats (Materials) | Fabric |
| Drive Adjustable Seat | 4-Way Manual Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat |
| Seats / Lumbar Support | – |
| Rear Seat Center Armrest | – |
| Assist Handles | Standard (All Door) |
| Active Noise Cancellation | – |
| 230V AC Outlet (150W) / Power Outlet | – |
| Carpet Mat | Standard |
| Rear Window Defogger | – |
| Spare Tyre | 16” Steel |
| Wireless Charger / Qi Charger | – |
| Pull-Out Cup Holder | – |
| Glove Box Lid | Standard |
| Safety & Security | |
| Cruise Control | Standard |
| Adaptive Cruise Control (ACC) | – |
| Lane Departure Warning & Assist (LDW) | – |
| Blind Spot Detection System (BLIS) | – |
| High Beam Assist | – |
| Cross Traffic Alert (Rear) | – |
| Speed Limiter | Standard |
| Tyre Pressure Monitoring System (TPMS) | – |
| 360 Camera / Panorama Camera | – |
| Evasive Steer Assist | – |
| Speed Control | Standard |
| Starter Start/Stop | – |
| Anti-lock Braking System (ABS) | Standard |
| Electronic Brake-force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | – |
| Auto Hold | – |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitgation (ROM) | Standard |
| Trailer Assist / Sway Assist | Standard |
| Adaptive Load Control (ALC) | Standard |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB) | – |
| Forward Collision Warning (FCW) | – |
| Brake Override System (BOS) | – |
| Parking Sensors (Front / Rear) | Front & Rear |
| Reverse Camera / Rear View Camera | Standard |
| 360 Camera | – |
| SRS Airbags | 6 Airbags – Driver & Front Passenger, Sides & Curtain |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts | 3-Point ELR x3 |
| Seatbelt Reminder | Driver & Front Passenger |
| Seat Occupant Alert | Standard |
| ISOFIX | With 2 Top Tether (Rear) |
| Remote Central Locking | Global & Selective |
| Security | Valet Mode |
| MyKey® | – |
| Immobiliser | – |
| Child Safety Locks | Standard |
| Tailgate Lock | – |
| Strength & Breadth Capabilities | |
| Cargo Bed Volumetric Capacity (Cu.mtr) | 1,564 / 1,584 / 540 |
| Maximum Payload (kg) | Up To 1000 |
| Towing Capacity (kg) | Up To 3500 |
| Water Wading Depth (mm) | 800 |
| Angle Of Approach (Degree) | 30 |
| Angle Of Departure (Degree) | 25.6 |
| 5 Years Warranty | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 109,888**
Next-Generation Ranger Raptor
Designed to Outclass, Outperform, and Outlast
Model Specification
| Model | (NEW) NEXT GEN RANGER RAPTOR 3.0L V6 EcoBoost | NEXT GEN RANGER RAPTOR 3.0L V6 EcoBoost | NEXT GEN RANGER RAPTOR 2.0L (Diesel) |
|---|---|---|---|
| Engine | |||
| Type | Petrol ( V6 ) with Twin-Turbo | Diesel ( I4 ) with Bi-Turbo | |
| Displacement(cc) | 2,956 | 1,996 | |
| Max Power [kW (PS) @ rpm] | 292.00( 397 ) @ 5,650 | 154.50( 210 ) @ 3,750 | |
| Max Torque (Nm @ rpm) | 583 @ 3,500 | 500 @ 1,750 – 2,000 | |
| Fuel Supply System | Direct Injection | Commonrail Direct Injection | |
| Compression Ration | 10.5:1 | 16.0+ 0.5:1 | |
| Transmission | |||
| Transmission Type | 10-Speed Automatic | 10-Speed Automatic with SelectShift | |
| Paddle Shift | Standard | ||
| Electronic Shift-on-the-fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | ||
| Chassis & Suspension | |||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion | ||
| Suspension (Front) | Double Wishbone with Coil Spring – FOX 2.5" LIVE VALVE SHOCK | ||
| Suspension (Rear) | Coil Spring – FOX 2.5" Live Valve Shock with Watt's Linkage | Coil Spring with Watt's Linkage | |
| Brakes (Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | ||
| Drivetrain | 4A/ 2H/ 4H/ 4L | ||
| Differential Type | e-Locking Front & Rear Differential | e-Locking Rear Differential | |
| Tyres & Wheels | 285 / 70 R17, 17" Beadlock Style Wheel with All-terrain BF Goodrich | 285 / 70 R17, Alloy with All-terrain BF Goodrich | |
| Measurements | |||
| Overall (L x W x H) (mm) | 5381 / 2028 / 1922 | ||
| Wheelbase (mm) | 3270 | ||
| Track (Front/Rear) (mm) | 1710/1710 | ||
| Ground Clearance (mm) | 265 | ||
| Kerb Weight (kg) | 2430 | 2423 | |
| Gross Weight (kg) | 3130 | 3140 | |
| Minimum Turning Radius (m) | 13.2 | ||
| Water Wading (mm) | 850 | 800 | |
| Fuel Tank Capacity (Litres) | 80 | ||
| Exterior Features | |||
| Front Grille | FORD Block | ||
| Bumper (Front) | Raptor Scheme | ||
| Bumper (Rear) | Raptor Scheme | ||
| Door & Tailgate Handle | Body Coloured / Black | ||
| Headlamps | MATRIX Headlamp with Auto High Beam | ||
| Headlamps Levelling | Automatic | ||
| Rear Lights | LED | – | |
| Fog Lamps (Front & Rear) | Front LED & Rear LED | ||
| Stop Lamp | LED Tailgate mounted | ||
| Daytime Running Lights | C- Clamp LED Daytime Running Light | ||
| Side Mirror | With (Power Adjustable & Foldable) Puddle lamp | ||
| Side Mirror with Turning Lights | Standard | ||
| 230v (400w Max) 3 Pin Socket Cargo Bed | Standard | ||
| Wiper System | Rain Sensing | ||
| Bedliner | Standard | ||
| Cargo Box Hook Point | 6 | ||
| Side Steps | Raptor Scheme | Standard | |
| Scuff Plate | Ford Performance | ||
| Underbody Protection | Standard | ||
| Front & Rear Recovery Hooks | 2 Front | ||
| Easy Lift Tailgate | Standard | ||
| Fender Flares | Standard | ||
| Side Decal | Full Body | – | |
| Sport Hoop | Standard | – | |
| Interior Features | |||
| Steering Wheel Material | SPORT Leather with Control Switches | Leather with Control Switches | |
| Steering Wheel Type | 4-Spoke | ||
| Steering Wheel (Adjustment) | Tilt & Telescopic | ||
| Steering Wheel (Switches) | Standard with Call/Hang Up Button | ||
| Parking Brake | Electric Parking Brake | ||
| Lane Changing Mode | Intelligent 3-Blink Turn Signal | ||
| Audio System / Infotainment | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth | 12" Multi Touchscreen Display Headunit with Wireless Apple CarPlay™, Android Auto™, Bluetooth and Voice Recognition | |
| Speakers | Bang & Olufsen with 8 Speakers | ||
| Apple CarPlay & Android Auto | Support with Wireless Apple CarPlay™ | ||
| SYNC® | SYNC® 4A | ||
| USB Charging Port | 4 (Front: 1 USB type-C , 1 USB type-A)(Rear: 1 USB type-C , 1 USB type-A) | 4 (Front: 1 USB type-C , 1 USB)(Rear: 1 USB type-C , 1 USB) | |
| 12V Socket / Power Port DC 12V. Outlet | Center Box | ||
| Keyless Entry with Push-Start Button | Standard | ||
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | ||
| Rear Air Conditioning Vents | Standard | ||
| Drive Mode | Normal,Sport, Slippery,Mud/Ruts, Sand, Baja and Rock (7) | ||
| Meter Panel | 12.4" TFT Multi Information Display | ||
| Power Windows | Driver & Front Passenger One-Touch Up / Down | ||
| Rear View Mirror | Auto Dimming | ||
| Sun Visor | Standard | ||
| Light / Cabin | STANDARD with Ambiance Light | ||
| Windscreen Mounted USB Port | 1 | ||
| Gear Knob Type | Leather E-Shifter | ||
| Interior Trim Color | Ebony Black | ||
| Instrument, Center Console & Door Panel Soft Pad | Seude Leather -Door:Driver & Front Passanger | ||
| Seats (Materials) | Leather | ||
| Driver Adjustable Seat | 10-Way Power Adjustable Seat | ||
| Front Passenger | 8-Way Manual Adjustable Seat | ||
| Lumbar Support | Standard | ||
| Assist Handles | Standard (All Doors) | ||
| 230V AC Outlet (400W) / Power Outlet | Standard | ||
| Carpet Mat | Raptor Scheme | ||
| Rear Window Defogger | Standard | ||
| Full Size Spare Tyre | Standard | ||
| Wireless Charger / Qi Charger | Standard | ||
| Pull-out Cup Holder | Standard | ||
| Safety | |||
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring | ||
| Emergency Stop Signal (ESS) | Standard | ||
| Lane Departure Warning & Assist (LDW) | Standard (LANE CHANGE WARNING AND AID ) | ||
| Blind Spot Detection System | Standard | ||
| High Beam Assist | Automatic | ||
| Rear Cross Traffic Alert | Standard | ||
| Manual Speed Limiter (MSL) | Standard | ||
| Multi Collision Brake | Standard | ||
| Tyre Pressure Monitoring System (TPMS) | Standard | ||
| 360° Camera | Standard | ||
| Evasive Steer Assist | Standard | ||
| Anti-Lock Braking System (ABS) | Standard | ||
| Electronic Brake-Force Distribution (EBD) | Standard | ||
| Electronic Stability Control (ESC) | Standard | ||
| Traction Control System (TCS) | Standard | ||
| Brake Assist (BA) | Standard | ||
| Hill Descent Control (HDC) | Standard | ||
| Hill Launch Assist (HLA) | Standard | ||
| Rollover Mitigation (ROM) | Standard | ||
| Trailer Sway Assist | Standard | ||
| Adaptive Load Control (ALC) | Standard | ||
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard | ||
| Forward Collision Warning (FCW) | Standard | ||
| Reverse Brake Assist | Standard | ||
| Parking Sensors (Front/Rear) | Standard | ||
| SRS Airbags | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Drive Knee SRS Airbag | ||
| Front Seatbelts | 3-Point ELR x2 | ||
| Rear Seatbelts | 3-Point ELR x3 | ||
| Seatbelt Reminder | Driver & Front Passenger | ||
| ISOFIX | With 2 Top Tether (Rear) | ||
| Remote Central Locking | Global & Selective | ||
| Security | MyKey & Perimeter Anti Theft with Alarm Horn, Valet Mode | ||
| MyKey | Standard | ||
| Security Alarm with Immobiliser | Standard | ||
| Child Safety Lock | Standard | ||
| Tailgate Lock | Standard | ||
Expert Reviews
2.0L Bi-Turbo Diesel Engine
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 259,888**
Next-Generation Everest Platinum
Designed to Outclass, Outperform, and Outlast
Special black PLATINUM grilleStriking and luxurious, featuring Matrix LED headlights and C-clamp-shaped daytime running lights.*Hood lettering is only available for Everest Platinum 3.0L
Alloy wheelsDistinctive alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.Everest Platinum 2.0L: 20-inch alloy wheels with 255/55 R20 tyresEverest Platinum 3.0L: 21-inch alloy wheels with 275/45 R21 tyresSpecial black PLATINUM grilleStriking and luxurious, featuring Matrix LED headlights and C-clamp-shaped daytime running lights.*Hood lettering is only available for Everest Platinum 3.0L
Alloy wheelsDistinctive alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.Everest Platinum 2.0L: 20-inch alloy wheels with 255/55 R20 tyresEverest Platinum 3.0L: 21-inch alloy wheels with 275/45 R21 tyres
Luxury interiorVentilated and heated leather-accented front seats with 10-way power adjustment, memory settings, bespoke quilted inserts, and signature Platinum badging.*Ventilated and heated seats are available on the Everest Platinum 3.0L only
Premium Bang & Olufsen® Sound SystemA 12-speaker audio system with dedicated subwoofer, delivering immersive sound and exceptional listening comfort on every journey.*Only available for Everest Platinum 3.0LLuxury interiorVentilated and heated leather-accented front seats with 10-way power adjustment, memory settings, bespoke quilted inserts, and signature Platinum badging.*Ventilated and heated seats are available on the Everest Platinum 3.0L only
Premium Bang & Olufsen® Sound SystemA 12-speaker audio system with dedicated subwoofer, delivering immersive sound and exceptional listening comfort on every journey.*Only available for Everest Platinum 3.0L
Model Specification
| Model | EVEREST PLATINUM 2.0L | EVEREST PLATINUM 3.0L |
|---|---|---|
| Engine | ||
| Type | 2.0L Turbo Diesel | 3.0L 4V DOHC V6 TC DSL-LION B |
| Displacement (cc) | 1996 | 2993 |
| Max Power [KW(Ps)@rpm] | 125 (170) @ 3500 | 183.8 (210) @ 3250 |
| Max Torque (Nm@rpm) | 405 @ 1750–2000 | 600 @ 1750–2000 |
| Fuel Supply System | Commonrail Direct Injection | Commonrail Direct Injection |
| Compression Ratio | 15.8+0.5:1 | 16.0:1 |
| Transmission | ||
| Type | 10-Speed SelectShift AT | 10-Speed AT (e‑Shifter) |
| Electronic Shift-On-The-Fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | Electro‑Magnetic Transfer Case (EMTC) |
| Chassis & Suspension | ||
| Steering System | Rack and Pinion with Electronic Power Assisted Steering (EPAS) | Rack and Pinion with Electronic Power Assisted Steering (EPAS) |
| Suspension (Front) | Double Wishbone with Coil Spring & Anti-Roll Bar | Double Wishbone with Coil Spring & Anti-Roll Bar |
| Suspension (Rear) | Coil Spring with Watt’s Linkage | Coil Spring with Watt’s Linkage |
| Brakes (Front/Rear) | Front Ventilated Discs / Rear Discs | Front Ventilated Discs / Rear Discs |
| Drive Modes | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand |
| Differential Type | e-locking differential | e-locking differential |
| Tyres & Rims | 255/55 R20 Alloy | 275/45 R21 Aluminium Wheel |
| Measurements | ||
| Overall (L x W x H) (mm) | 4914/1923/1841 (1840-1842) | 4914/1923/1841 (1840-1842) |
| Wheelbase (mm) | 2900 | 2900 |
| Track (Front/Rear) (mm) | 1620 / 1620 | 1620 / 1620 |
| Ground Clearance (mm) | 200 | 200 |
| Body Overhang Front (mm) | 880 | 880 |
| Rear (mm) | 1143 | 1143 |
| Kerb Weight (kg) | 2384 | 2384 |
| Gross Weight (kg) | 3100 | 3100 |
| Minimum Turning Circle (m) | 11.8 | 11.8 |
| Water Wading (mm) | 800 | 800 |
| Fuel Tank Capacity (L) | 80 | 80 |
| Exterior Features | ||
| Front Grille | Chrome | Chrome |
| Bumper (Front) | Body Color | Body Color |
| Bumper (Rear) | Body Color | Body Color |
| Hood Lettering | – | Standard |
| Door Handle / Side Mirror | Glossy Black | Body Color |
| Headlamps | Performance LED Projector/Matrix Headlamp with Auto High Beam | Performance LED Projector/Matrix Headlamp with Auto High Beam |
| Headlamps Leveling | Auto | Auto |
| LED Rear Lights | Standard | Standard |
| LED Fog Lamps (Front & Rear) | Standard | Standard |
| LED Stop Lamp | Standard | Standard |
| Daytime Running Lights | C-Clamp Daytime Running Lights | C-Clamp Daytime Running Lights |
| Side Mirror | Power Fold w/ Puddle Lamps | Power Fold w/ Puddle Lamps |
| Side Mirror with Turning Lights | Standard | Standard |
| 12V Socket (Rear Bonnet) | Center box, 3rd row, rear bonnet | Center box, 3rd row, rear bonnet |
| Wiper System | Rain Sensing | Rain Sensing |
| Roof Rails | Standard | Standard |
| Side Steps | Silver Matte Sidesteps | Silver Matte Sidesteps |
| Hands-free Power Liftgate | Standard | Standard |
| Zone Lighting | Standard | Standard |
| Underbody Protection Bash | Metal Front, Engine & Transfer Case Shield | Metal Front, Engine & Transfer Case Shield |
| Front Recovery Hooks | Standard | Standard |
| Fender Flares | Standard | Standard |
| Rear Spoiler | Standard | Standard |
| Panoramic Moonroof / Sunroof | Dual Panel Sunroof | Dual Panel Sunroof |
| Interior Features | ||
| Steering Wheel Material | Leather | Leather |
| Steering Wheel Type | 4-Spoke | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic | Tilt & Telescopic |
| Heated Steering wheel | – | Standard |
| Steering Wheel (Switches) | Standard | Standard |
| Parking Brake | Electronic Parking Brake | Electronic Parking Brake |
| Audio System / Infotainment | 12” Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition | 12” Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition |
| Apple CarPlay® & Android Auto™ | Supported with Wireless Apple CarPlay® | Supported with Wireless Apple CarPlay® |
| Speakers | 8 Speaker System | B&O 12 Speaker Premium Audio System |
| SYNC® | SYNC® 4A | SYNC® 4A |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) |
| 12V Socket / Power Port DC 12V | Centre Box, 3rd Row and Rear Bonnet | Centre Box, 3rd Row and Rear Bonnet |
| Keyless Entry with Push Start Button | Standard | Standard |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Blower and Vents | Standard | Standard |
| Instrument Cluster | 12.4” TFT Multi Information Display | 12.4” TFT Multi Information Display |
| Power Windows | All Power Windows – Touch Up/Down | All Power Windows – Touch Up/Down |
| Rear View Mirror | Auto Dimming | Auto Dimming |
| Sun Visor | With Light | With Light |
| Dome Light / Cabin Light | Standard | Standard |
| Windscreen Mounted USB Port | Standard | Standard |
| Gear Knob Type | Leather Gear Shift Knob | Leather Gear E‑Shifter |
| Interior Trim Color | Ebony | Ebony |
| Glove Box | Standard with lights | Standard with lights |
| Seats (Materials) | Leather | Leather |
| Driver Adjustable Seat | 8-Way Power Adjustable Seat | Electric Seat Adjuster – Driver with Memory |
| Front Passenger Seat | 8-Way Power Adjustable Seat | Power 10-Way Passenger Seat Adjust |
| Heated/Vented Seat | – | Heated & Vented Front, Heated Rear |
| Seats / Lumbar Support | Standard | Standard |
| Power Folding Seats | Power | Power |
| Rear Seats – 2nd Row | Standard | Standard |
| Rear Seats – 3rd Row | Standard | Standard |
| Arm Rest / Storage | Standard | Standard |
| Assist Handles | 4 – All Doors | 4 – All Doors |
| 230V AC Outlet (400W) | Standard | Standard |
| Carpet Mat | Standard | Standard |
| Rear Window Defogger | Standard | Standard |
| Spare Tyre | 17″ Steel Wheel | 21″ Aluminium Spare Wheel |
| Wireless Charger / Qi Charger | Standard | Standard |
| Safety | ||
| Cruise Control | – | – |
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring | Standard with Stop-And-Go and Lane Centring |
| Emergency Stop Signal (ESS) | Standard | Standard |
| Lane Departure Warning & Assist (LDW) | Standard | Standard |
| BLIS® (Blind Spot Information System) | Standard | Standard |
| High Beam Assist | Standard | Standard |
| Rear Cross Traffic Alert | Standard | Standard |
| Manual Speed Limiter (MSL) | Electronic speed limiting device | Electronic speed limiting device |
| Tyre Pressure Monitoring System (TPMS) | Standard | Standard |
| Anti-Lock Braking System (ABS) | Standard | Standard |
| Electronic Brake-Force Distribution (EBD) | Standard | Standard |
| Electronic Stability Control (ESC) | Standard | Standard |
| Traction Control System (TCS) | Standard | Standard |
| Brake Assist (BA) | Standard | Standard |
| Hill Descent Control (HDC) | Standard | Standard |
| Hill Launch Assist (HLA) | Standard | Standard |
| Rollover Mitigation (ROM) | Standard | Standard |
| Adaptive Load Control | Standard | Standard |
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard | Standard |
| Forward Collision Warning (FCW) | Standard with brake support | Standard with brake support |
| Reverse Brake Assist | Standard | Standard |
| Parking Sensors (Front/Rear) | Front + Rear | Front + Rear |
| 360° Camera | Standard | Standard |
| Reverse Camera | – | – |
| SRS Airbags | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee |
| Front Seatbelts | 3-Point ELR x2 | 3-Point ELR x2 |
| Rear Seat Belts – 2nd Row | 3-Point ELR x3 | 3-Point ELR x3 |
| Rear Seat Belts – 3rd Row | 3-Point ELR x2 | 3-Point ELR x2 |
| Seatbelt Reminder | Driver & Front Passenger | Driver & Front Passenger |
| ISOFIX | Standard | Standard |
| Security | ||
| Remote Central Locking | Global & Selective | Global & Selective |
| Security | Valet Mode | Valet Mode |
| MyKey | Standard | Standard |
| Security Alarm with Immobiliser | Standard | Standard |
| Child Safety Lock | Standard | Standard |
Expert Reviews
2.0L Bi-Turbo Diesel Engine
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger XLT
Engineered for Both Work and Play
Model Specification
| Model | Ranger 2.0L XLT 4WD AT |
|---|---|
| Engine | Automatic |
| Type | Diesel ( I4 ) with Single Turbo |
| Displacement(c.c) | 1,996 |
| Power kW (PS) @ rpm | 125 ( 170 ) @ 3,500 |
| Torque Nm @ rpm | 405 @ 1,750 – 2,500 |
| Fuel Supply System | Commonrail Direct Injection |
| Transmission and Chassis | |
| Transmission Type | 6-Speed Automatic with SelectShift |
| Electronic Shift-on-the-fly (ESOF) | Standard |
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension (Front) | Double Wishbone with Coil Spring |
| Suspension (Rear) | Leaf Spring |
| Brakes (Front/Rear) | Ventilated Disc / Drum |
| Differential System | e-Locking Rear Differential |
| Tyres & Wheels | 255/70 R17, Alloy |
| Dimensions | |
| Overall Length ( L X W X H) (mm) | 5,370 / 1,918 / 1,884 |
| Wheelbase (mm) | 3,270 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 230 |
| Cargo Bed ( L X W X H ) (mm) | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 |
| Gross Weight (kg) | 3,230 |
| Minimum Turning Radius (m) | 12.9 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Feature | |
| Front Grille | Chrome Grille |
| Bumper (Front) | Body Coloured |
| Bumper (Rear) | Body Coloured |
| Door & Tailgate Handle | Body Coloured / Black |
| Headlamps | LED with Manual Levelling |
| Headlamp Leveling | Manual |
| Fog Lamps ( Front / Rear ) | Standard ( Front & Rear ) |
| Stop Lamp | LED Tailgate Mounted |
| Daytime Running Lights | C- Clamp Daytime Running Light |
| Side Mirror | Power Adjustable & Foldable |
| Wipers System | Rain-Sensing |
| Sport Bar | Standard |
| Bedliner | Standard |
| Cargo Box Hooks Point | 6 |
| Side Steps | Standard |
| Easy Lift Tailgate/ Tailgate Assist | – |
| Front & Rear Recovery Hooks Front | Front |
| Rear Step Bumper | Standard |
| Interior Feature | |
| Steering Wheel Material | Vinyl with Steering Switches |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel Adjustment | Tilt & Telescopic |
| Parking Brake | Lever Hand Brake |
| Lane Changing Signal | Intelligent 3-Blink Turn Signal |
| Audio System/ Infotainment | 10.1″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM, Bluetooth and Voice Recognition |
| Speakers | 6 |
| SYNC® | SYNC® 4A |
| USB Charging Ports | 2 (Front: 1 USB Type-C , 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V Outlet | Center Box & Rear |
| Keyless Entry With Push Start Button | Standard |
| Air Conditioner/ Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Vents | Standard |
| Drive Mode | Normal, Eco, Tow/Haul & Slippery |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | Driver& Front Passenger One- Touch Up / Down |
| Rear View Mirror | Standard |
| Sun Visor | Standard |
| Dome Light | Standard |
| Gear Knob Type | Leather Gear Shift Knob |
| Interior Trim Colour | Ebony Black |
| Seats (Materials) | Fabric |
| Drive Adjustable Seat | 6-Way Manual Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat |
| Rear Window Defogger | Standard |
| Full Size Spare Tyre | 17 Inch Steel Wheel |
| Wireless Charger / Qi Charger | Standard |
| Safety & Security | |
| Cruise Control | Standard |
| Lane Keeping Aid | Standard |
| Speed Limiter | Standard |
| Second Collision Brake / Post Collision Brake | Standard |
| Anti-lock Braking System (ABS) | Standard |
| Electronic Brake-force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitgation (ROM) | Standard |
| TRAILER ASSIST / Sway Assist | Standard |
| Pre-Collision Assist / Automated Emergency Braking With Pedestrian Detection (AEB) | Standard |
| Forward Collision Warning (FCW) | Standard |
| Parking Sensors (Front/Rear) | Standard |
| Reverse Camera | Standard |
| SRS Airbags | Driver & Passenger, Sides & Curtains |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts | 3-Point ELR x3 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | With 2 Top Tether |
| Remote Central Locking | Global & Selective |
| MyKey® | Standard |
| Immobiliser | Standard |
| Child Safety Locks | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 125,888**
Next-Generation Everest Platinum
Designed to Outclass, Outperform, and Outlast
Special black PLATINUM grilleStriking and luxurious, featuring Matrix LED headlights and C-clamp-shaped daytime running lights.*Hood lettering is only available for Everest Platinum 3.0LAlloy wheelsDistinctive alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.Everest Platinum 2.0L: 20-inch alloy wheels with 255/55 R20 tyresEverest Platinum 3.0L: 21-inch alloy wheels with 275/45 R21 tyresSpecial black PLATINUM grilleStriking and luxurious, featuring Matrix LED headlights and C-clamp-shaped daytime running lights.*Hood lettering is only available for Everest Platinum 3.0L
Alloy wheelsDistinctive alloy wheels engineered for durability and confidence, complementing a refined balance of style, strength and capability.Everest Platinum 2.0L: 20-inch alloy wheels with 255/55 R20 tyresEverest Platinum 3.0L: 21-inch alloy wheels with 275/45 R21 tyres
Luxury interiorVentilated and heated leather-accented front seats with 10-way power adjustment, memory settings, bespoke quilted inserts, and signature Platinum badging.*Ventilated and heated seats are available on the Everest Platinum 3.0L onlyPremium Bang & Olufsen® Sound SystemA 12-speaker audio system with dedicated subwoofer, delivering immersive sound and exceptional listening comfort on every journey.*Only available for Everest Platinum 3.0LLuxury interiorVentilated and heated leather-accented front seats with 10-way power adjustment, memory settings, bespoke quilted inserts, and signature Platinum badging.*Ventilated and heated seats are available on the Everest Platinum 3.0L only
Premium Bang & Olufsen® Sound SystemA 12-speaker audio system with dedicated subwoofer, delivering immersive sound and exceptional listening comfort on every journey.*Only available for Everest Platinum 3.0L
Model Specification
| Model | EVEREST PLATINUM 2.0L | EVEREST PLATINUM 3.0L |
|---|---|---|
| Engine | ||
| Type | 2.0L Turbo Diesel | 3.0L 4V DOHC V6 TC DSL-LION B |
| Displacement (cc) | 1996 | 2993 |
| Max Power [KW(Ps)@rpm] | 125 (170) @ 3500 | 183.8 (210) @ 3250 |
| Max Torque (Nm@rpm) | 405 @ 1750–2000 | 600 @ 1750–2000 |
| Fuel Supply System | Commonrail Direct Injection | Commonrail Direct Injection |
| Compression Ratio | 15.8+0.5:1 | 16.0:1 |
| Transmission | ||
| Type | 10-Speed SelectShift AT | 10-Speed AT (e‑Shifter) |
| Electronic Shift-On-The-Fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) | Electro‑Magnetic Transfer Case (EMTC) |
| Chassis & Suspension | ||
| Steering System | Rack and Pinion with Electronic Power Assisted Steering (EPAS) | Rack and Pinion with Electronic Power Assisted Steering (EPAS) |
| Suspension (Front) | Double Wishbone with Coil Spring & Anti-Roll Bar | Double Wishbone with Coil Spring & Anti-Roll Bar |
| Suspension (Rear) | Coil Spring with Watt’s Linkage | Coil Spring with Watt’s Linkage |
| Brakes (Front/Rear) | Front Ventilated Discs / Rear Discs | Front Ventilated Discs / Rear Discs |
| Drive Modes | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand |
| Differential Type | e-locking differential | e-locking differential |
| Tyres & Rims | 255/55 R20 Alloy | 275/45 R21 Aluminium Wheel |
| Measurements | ||
| Overall (L x W x H) (mm) | 4914/1923/1841 (1840-1842) | 4914/1923/1841 (1840-1842) |
| Wheelbase (mm) | 2900 | 2900 |
| Track (Front/Rear) (mm) | 1620 / 1620 | 1620 / 1620 |
| Ground Clearance (mm) | 200 | 200 |
| Body Overhang Front (mm) | 880 | 880 |
| Rear (mm) | 1143 | 1143 |
| Kerb Weight (kg) | 2384 | 2384 |
| Gross Weight (kg) | 3100 | 3100 |
| Minimum Turning Circle (m) | 11.8 | 11.8 |
| Water Wading (mm) | 800 | 800 |
| Fuel Tank Capacity (L) | 80 | 80 |
| Exterior Features | ||
| Front Grille | Chrome | Chrome |
| Bumper (Front) | Body Color | Body Color |
| Bumper (Rear) | Body Color | Body Color |
| Hood Lettering | – | Standard |
| Door Handle / Side Mirror | Glossy Black | Body Color |
| Headlamps | Performance LED Projector/Matrix Headlamp with Auto High Beam | Performance LED Projector/Matrix Headlamp with Auto High Beam |
| Headlamps Leveling | Auto | Auto |
| LED Rear Lights | Standard | Standard |
| LED Fog Lamps (Front & Rear) | Standard | Standard |
| LED Stop Lamp | Standard | Standard |
| Daytime Running Lights | C-Clamp Daytime Running Lights | C-Clamp Daytime Running Lights |
| Side Mirror | Power Fold w/ Puddle Lamps | Power Fold w/ Puddle Lamps |
| Side Mirror with Turning Lights | Standard | Standard |
| 12V Socket (Rear Bonnet) | Center box, 3rd row, rear bonnet | Center box, 3rd row, rear bonnet |
| Wiper System | Rain Sensing | Rain Sensing |
| Roof Rails | Standard | Standard |
| Side Steps | Silver Matte Sidesteps | Silver Matte Sidesteps |
| Hands-free Power Liftgate | Standard | Standard |
| Zone Lighting | Standard | Standard |
| Underbody Protection Bash | Metal Front, Engine & Transfer Case Shield | Metal Front, Engine & Transfer Case Shield |
| Front Recovery Hooks | Standard | Standard |
| Fender Flares | Standard | Standard |
| Rear Spoiler | Standard | Standard |
| Panoramic Moonroof / Sunroof | Dual Panel Sunroof | Dual Panel Sunroof |
| Interior Features | ||
| Steering Wheel Material | Leather | Leather |
| Steering Wheel Type | 4-Spoke | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic | Tilt & Telescopic |
| Heated Steering wheel | – | Standard |
| Steering Wheel (Switches) | Standard | Standard |
| Parking Brake | Electronic Parking Brake | Electronic Parking Brake |
| Audio System / Infotainment | 12” Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition | 12” Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition |
| Apple CarPlay® & Android Auto™ | Supported with Wireless Apple CarPlay® | Supported with Wireless Apple CarPlay® |
| Speakers | 8 Speaker System | B&O 12 Speaker Premium Audio System |
| SYNC® | SYNC® 4A | SYNC® 4A |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) |
| 12V Socket / Power Port DC 12V | Centre Box, 3rd Row and Rear Bonnet | Centre Box, 3rd Row and Rear Bonnet |
| Keyless Entry with Push Start Button | Standard | Standard |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Blower and Vents | Standard | Standard |
| Instrument Cluster | 12.4” TFT Multi Information Display | 12.4” TFT Multi Information Display |
| Power Windows | All Power Windows – Touch Up/Down | All Power Windows – Touch Up/Down |
| Rear View Mirror | Auto Dimming | Auto Dimming |
| Sun Visor | With Light | With Light |
| Dome Light / Cabin Light | Standard | Standard |
| Windscreen Mounted USB Port | Standard | Standard |
| Gear Knob Type | Leather Gear Shift Knob | Leather Gear E‑Shifter |
| Interior Trim Color | Ebony | Ebony |
| Glove Box | Standard with lights | Standard with lights |
| Seats (Materials) | Leather | Leather |
| Driver Adjustable Seat | 8-Way Power Adjustable Seat | Electric Seat Adjuster – Driver with Memory |
| Front Passenger Seat | 8-Way Power Adjustable Seat | Power 10-Way Passenger Seat Adjust |
| Heated/Vented Seat | – | Heated & Vented Front, Heated Rear |
| Seats / Lumbar Support | Standard | Standard |
| Power Folding Seats | Power | Power |
| Rear Seats – 2nd Row | Standard | Standard |
| Rear Seats – 3rd Row | Standard | Standard |
| Arm Rest / Storage | Standard | Standard |
| Assist Handles | 4 – All Doors | 4 – All Doors |
| 230V AC Outlet (400W) | Standard | Standard |
| Carpet Mat | Standard | Standard |
| Rear Window Defogger | Standard | Standard |
| Spare Tyre | 17″ Steel Wheel | 21″ Aluminium Spare Wheel |
| Wireless Charger / Qi Charger | Standard | Standard |
| Safety | ||
| Cruise Control | – | – |
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring | Standard with Stop-And-Go and Lane Centring |
| Emergency Stop Signal (ESS) | Standard | Standard |
| Lane Departure Warning & Assist (LDW) | Standard | Standard |
| BLIS® (Blind Spot Information System) | Standard | Standard |
| High Beam Assist | Standard | Standard |
| Rear Cross Traffic Alert | Standard | Standard |
| Manual Speed Limiter (MSL) | Electronic speed limiting device | Electronic speed limiting device |
| Tyre Pressure Monitoring System (TPMS) | Standard | Standard |
| Anti-Lock Braking System (ABS) | Standard | Standard |
| Electronic Brake-Force Distribution (EBD) | Standard | Standard |
| Electronic Stability Control (ESC) | Standard | Standard |
| Traction Control System (TCS) | Standard | Standard |
| Brake Assist (BA) | Standard | Standard |
| Hill Descent Control (HDC) | Standard | Standard |
| Hill Launch Assist (HLA) | Standard | Standard |
| Rollover Mitigation (ROM) | Standard | Standard |
| Adaptive Load Control | Standard | Standard |
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard | Standard |
| Forward Collision Warning (FCW) | Standard with brake support | Standard with brake support |
| Reverse Brake Assist | Standard | Standard |
| Parking Sensors (Front/Rear) | Front + Rear | Front + Rear |
| 360° Camera | Standard | Standard |
| Reverse Camera | – | – |
| SRS Airbags | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee |
| Front Seatbelts | 3-Point ELR x2 | 3-Point ELR x2 |
| Rear Seat Belts – 2nd Row | 3-Point ELR x3 | 3-Point ELR x3 |
| Rear Seat Belts – 3rd Row | 3-Point ELR x2 | 3-Point ELR x2 |
| Seatbelt Reminder | Driver & Front Passenger | Driver & Front Passenger |
| ISOFIX | Standard | Standard |
| Security | ||
| Remote Central Locking | Global & Selective | Global & Selective |
| Security | Valet Mode | Valet Mode |
| MyKey | Standard | Standard |
| Security Alarm with Immobiliser | Standard | Standard |
| Child Safety Lock | Standard | Standard |
Expert Reviews
2.0L Bi-Turbo Diesel Engine
3.0L V6 Twin-Turbo Ecoboost
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Ranger WildTrak
Design for Your Ranger Life
Next-Generation Ranger WildTrak: Technology
Model Specification
| Model | RANGER WILDTRAK 3.0L V6 4WD AT | RANGER WILDTRAK 2.0L |
|---|---|---|
| Engine | ||
| Type | Diesel 3.0L V6 Turbo-Diesel | Diesel ( I4 ) with Bi-Turbo |
| Displacement(cc) | 2,993 | 1,996 |
| Max Power KW (Ps)@rpm | 183.80( 250 ) @ 3,250 | 154.50 ( 210 ) @ 3,750 |
| Max Torque Nm@rpm | 600 @ 1,750 – 2,000 | 500 @ 1,750 – 2,000 |
| Fuel Supply System | Commonrail Direct Injection | Commonrail Direct Injection |
| Compression Ratio | 16.4:1 | 15.8:1 |
| Transmission | ||
| Transmission Type | 10-Speed Automatic with SelectShift | 10-Speed Automatic with SelectShift |
| Electronic Shift On The Fly (ESOF) / 4X4 Shift System | Electronic Shift On The Fly (ESOF) | Electronic Shift On The Fly (ESOF) |
| Shifter | E-Shifter | Normal Shifter |
| Chassis & Suspension | ||
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension( Front) | Double Wishbone with Coil Spring | Double Wishbone with Coil Spring |
| Suspension(Rear) | Leaf Spring | Leaf Spring |
| Brakes(Front/Rear) | Ventilated Disc (Front) / Disc (Rear) | Ventilated Disc (Front) / Disc (Rear) |
| Differential Type | e-Locking Rear Differential | e-Locking Rear Differential |
| Drivetrain (4 wheel drive system) | 4A-4WD (2H, 4H, 4L & 4A) | 4WD (2H, 4H & 4L) |
| Tyres & Rims ( Spare Tyre ) | 255/55 R20 | 255/65 R18 |
| Measurement | ||
| Overall(L x W x H) (mm) | 5,370 / 1,918 / 1,884 | 5,370 / 1,918 / 1,884 |
| Wheelbase(mm) | 3,270 | 3,270 |
| Track(Front/Rear) (mm) | 1620/1620 | 1620/1620 |
| Ground Clearance (mm) | 230 | 230 |
| Cargo Bed(L x W x H) (mm) | 1,564 / 1,584 / 540 | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,280 | 2,227 |
| Gross Weight (kg) | 3,300 | 3,230 |
| Minimum Turning Radius (m) | 12.9 | 12.9 |
| Water Wading (mm) | 800 | 800 |
| Fuel Tank Capacity (L) | 80 | 80 |
| Exterior Features | ||
| Front Grille | Special Wildtrak front grille scheme | Special Wildtrak front grille scheme |
| Bumper (Front) | Body Coloured with Lower Accent | Body Coloured with Lower Accent |
| Bumper (Rear) | Glossy black rear bumper | Glossy black rear bumper |
| Door & Tailgate Handle | Body Coloured / Black | Body Coloured / Black |
| Headlamps | Matrix Headlamp with Auto High Beam | Matrix Headlamp with Auto High Beam |
| Headlamp Levelling | Automatic Levelling | Automatic Levelling |
| Fog Lamps (Front / Rear) | Front LED & Rear LED | Front LED & Rear LED |
| Stop Lamp | LED Tailgate Mounted | LED Tailgate Mounted |
| Daytime Running Lights | C- Clamp LED Daytime Running Light | C- Clamp LED Daytime Running Light |
| Side Mirror | With (Power Adjustable & Foldable) Puddle Lamp | With (Power Adjustable & Foldable) Puddle Lamp |
| Side Mirror With Turning Lights | Standard | Standard |
| Bedliner Light / Cargo LED Light | Standard | – |
| Socket (Cargo Bed) | 230V (400W Max) 3 pin Socket | Standard (180W Max) with 230V (400W Max) 3 pin Socket |
| Welcome Light | Standard | Standard |
| Wipers System | Rain Sensing | Rain Sensing |
| Roof Rails | WildTrak Roof Rails | Standard |
| Sports Bar | Standard | Standard |
| Bedliner | Standard | Standard |
| Cargo Box Hooks point | 6 | 6 |
| Side Steps | Standard | Standard |
| Scuff Plate | Standard | Standard |
| Easy Lift Tailgate / Tailgate Assist | Standard | Standard |
| Front & Rear Recovery Hooks | Front | Front |
| Fender Flares | Standard | Standard |
| Rear Step Bumper | Standard with Box Step | Standard with Box Step |
| Underbody Protection Bash Plate / Skid Plate | Underbody Protection (Metal Front, Engine, Transfer Case Shield) | – |
| Interior Feature | ||
| Steering Wheel Material | Leather | Leather with Control Switches |
| Steering Wheel Type | 4-Spoke | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic | Tilt & Telescopic |
| Parking Brake | Electric Parking Brake | Electric Parking Brake |
| Audio System / Infotainment | 12″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM , Bluetooth and Voice Recognition | 12″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM , Bluetooth and Voice Recognition |
| Apple Carplay & Android Auto | Support with Wireless Apple CarPlayTM | Support with Wireless Apple CarPlayTM |
| Speakers | 6 | 6 |
| SYNC® | SYNC®4A | SYNC®4A |
| USB Charging Ports | 4 (Front: 1 USB Type-C, 1 USB Type-A) (Rear: 1 USB Type-C, 1 USB Type-A) |
4 (Front: 1 USB Type-C, 1 USB Type-A) (Rear: 1 USB Type-C, 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V (Front) | Center Box | Center Box |
| Keyless Entry with Push Start Button | Standard | Standard |
| Air Conditioner/Climate Control | Electronic Dual-Zone Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Vents | Standard | Standard |
| Drive Mode | Normal, Eco,Town/Haul, Slippery, Mud/Ruts & Sand | Normal, Eco,Town/Haul, Slippery, Mud/Ruts & Sand |
| Meter Panel | 8″ TFT Multi Information Display | 8″ TFT Multi Information Display |
| Multi Information Display (MID) | Standard | Standard |
| Power Windows | Driver, Front & Rear Passenger One-Touch Up/Down | Driver & Front Passenger One-Touch Up/Down |
| Rear View Mirror | Auto Dimming | Auto Dimming |
| Sun Visor | Standard | Standard |
| Dome Light/ Cabin Lamp/ Ambient Light | Standard | Standard |
| Map Lamp | Standard | Standard |
| Windscreen Mounted USB Port | 1 | 1 |
| Gear Knob Type | Leather Gear Shift Knob | Leather Gear Shift Knob |
| Interior Trim Colour | Ebony Black | Ebony Black |
| Instrument, Center Console & Door Panel Soft Pad | Door:Driver & Front Passanger | Door:Driver & Front Passanger |
| Seats (Materials) | WildTrak Premium Leather | WildTrak Premium Leather |
| Drive Adjustable Seat | 8-Way Power Adjustable Seat | 8-Way Power Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat | 4-Way Manual Adjustable Seat |
| Seats / Lumbar Support | Standard | Standard |
| Rear Seats 2nd Row | Standard | Standard |
| Assist Handles | Standard All Door | Standard All Door |
| 230V AC Outlet (150W) / Power Outlet | AC 230V 3 Pin (400W) (Centre Box Rear) | Standard |
| Rear Window Defogger | Standard | Standard |
| Illuminated Entry System / Welcome Light | Standard (side mirror) | – |
| Carpet Mat | Standard | Standard |
| Spare Tyre | 20″ Full size with alloy rim | 17 Inch Steel Wheel |
| Wireless Charger / Qi Charger | Standard | Standard |
| Pull-out Cup Holder | Standard | Standard |
| Glove Box Lid | Standard | Standard |
| Safety & Security | ||
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centering | Standard with Stop-And-Go and Lane Centering |
| Misacceleration Mitigation System/ AT Pedal Misapplication Mitigation | Standard | – |
| Lane Departure Warning & Assist (LDW) | Standard (Lane Change Warning And Aid) | Standard (Lane Change Warning And Aid) |
| Blind Spot Detection System (BLIS) | Standard | Standard |
| Cross Traffic Allert (Rear) | Standard | Standard |
| High Beam Assist | Automatic | Automatic |
| Speed Limiter | Standard | Standard |
| Second Collision Brake/ Post Collision Brake | Standard | Standard |
| 360 camera/ Panorama Camera | Standard | Standard |
| Evasive Steer Assist | Standard | Standard |
| Anti-lock Braking System (ABS) | Standard | Standard |
| Electronic Brake-force Distribution (EBD) | Standard | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Electronic Stability Control (ESC) with Traction Control | Electronic Stability Control (ESC) with Traction Control |
| Traction Control System (TCS) | Standard | Standard |
| Brake Assist (BA) | Standard | Standard |
| Hill Descent Control (HDC) | Standard | Standard |
| Hill Launch Assist (HLA) | Standard | Standard |
| Rollover Mitigation (ROM) | Standard | Standard |
| Trailer Assist / Sway Assist | Trailer Sway Control (TSC) | Trailer Sway Control (TSC) |
| Adaptive Load Control (ALC) | Standard | Standard |
| Pre-Collision Assist /Automated Emergency Braking With Pedestrian Detection (AEB ) | Standard | Standard |
| Forward Collision Warning (FCW) | Standard | Standard |
| Brake Override System (BOS) | Reverse Brake Assist | Reverse Brake Assist |
| Parking Sensors (Front/Rear) | Front/Rear | Front/Rear |
| Reverse Camera/Rear View Camera | 360 degree | 360 degree |
| SRS Airbags | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Drive Knee SRS Airbag | 7 Airbags – Driver & Front Passenger ,Sides ,Curtains & Drive Knee SRS Airbag |
| Front Seatbelts | 3-Point ELR x2 | 3-Point ELR x2 |
| Rear Seatbelts | 3-Point ELR x3 | 3-Point ELR x3 |
| Seatbelt Reminder | Driver & Front Passenger | Driver & Front Passenger |
| ISOFIX | With 2 Top Tether (Rear) | With 2 Top Tether (Rear) |
| Collapsible Steering Column | Standard | – |
| Collapsible Brake Pedal | Standard | – |
| Side Door Impact Beams | Standard | – |
| Body Strength | High Strength Low Alloy Steel | High Strength Low Alloy Steel |
| Head Impact Protection Structure | Standard | – |
| Whiplash Protection | Standard | – |
| Remote Central Locking | Global & Selective | Global & Selective |
| Security | Perimeter Anti theft ,Valet Mode | MyKey® & Perimeter Anti Theft,Valet Mode |
| Security Alarm With Immobiliser | Standard | Standard |
| Child Safety Locks | Standard | Standard |
| Tailgate Lock | Standard (Key) | Standard (Key) |
| Strength & Breadth Capabilities | ||
| Cargo Bed Volumetric Capacity (liters) | 1,233 | |
| Maximum Payload (kg) | up to 1000 | up to 1000 |
| Towing Capacity (kg) | up to 3500 | up to 3500 |
| Water Wading Depth (mm) | 800 | 800 |
| Angle Of Approach (degree) | 30 | 30 |
| Angle Of Departure (degree) | 23 | 25.6 |
| Rampover Angle (degree) | 21 | 24 |
| 5 years Warranty | Standard | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 169,688**
Next-Generation Ranger XL Single Cab
Built To Do More
Model Specification
| Model | Next-Generation Ranger XL Single Cab |
|---|---|
| Engine | Manual |
| Type | Diesel ( I4 ) with Single Turbo |
| Displacement (c.c) | 1,996 |
| Power kW (PS) @ rpm | 125 ( 170 ) @ 3,500 |
| Torque Nm @ rpm | 405 @ 1,750 – 2,500 |
| Fuel Supply System | Commonrail Direct Injection |
| Transmission and Chassis | |
| Transmission Type | 6-Speed Manual |
| Electronic Shift-on-the-fly (ESOF) | Standard |
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension (Front) | Double Wishbone with Coil Spring |
| Suspension (Rear) | Leaf Spring |
| Brakes (Front & Rear) | Ventilated Disc / Drum |
| Differential Type | Limited Slip Differential |
| Tyres & Wheels | 255/70 R16, Alloy |
| Dimensions | |
| Overall (L x W x H) (mm) | 5,431 / 1,918 / 1,890 |
| Wheelbase (mm) | 3,270 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 230 |
| Cargo Bed (L x W x H) (mm) | 2,332 / 1,420 / 540 |
| Kerb Weight (kg) | 2,060 |
| Gross Weight (kg) | 3,230 |
| Minimum Turning Radius (m) | 12.9 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Feature | |
| Front Grille | Black |
| Bumper (Front) | Body Coloured |
| Bumper (Rear) | Black |
| Door & Tailgate Handle | Black / Black |
| Headlamps | Halogen |
| Headlamp Leveling | Manual |
| Fog Lamps (Front / Rear) | Standard (Front / Rear) |
| LED Tailgate Mounted Stop Lamp | Standard |
| Daytime Running Lights | Standard |
| Side Mirror | Power Adjustable |
| Wipers System | Manual |
| Sport Bar | Standard |
| Bedliner | Standard |
| Cargo Box Hooks point | 6 |
| Side Steps | Standard |
| Front & Rear Recovery Hooks | Standard (Front) |
| Rear Step Bumper | Standard |
| Interior Feature | |
| Steering Wheel Material | Urethane with Streering Switches |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Parking Brake | Lever Hand Brake |
| Audio System/Infotainment | 10.1-inch |
| Lane Changing Signal | Intelligent 3-Blink Turn Signal |
| Speakers | 2 |
| SYNC® | SYNC® 4A |
| USB Charging Ports | 2 (Front: 1 USB Type-C , 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V Outlet | Center Box |
| Keyless Entry with Push-Start Button (PEPS) | – |
| Air Conditioner/Climate Control | Manual |
| Drive Mode | – |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | Driver & Front Passenger One-Touch Up/Down |
| Rear View Mirror | Standard |
| Sun Visor | Standard |
| Dome Light | – |
| Gear Knob Type | Molded Gear Shift Knob |
| Interior Trim Colour | Ebony Black |
| Seats (Materials) | Fabric |
| Drive Adjustable Seat | 4-Way Manual Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat |
| Rear Window Defogger | Standard |
| Spare Tyre | 16 Inch Steel Wheel |
| Safety & Security | |
| Anti-lock Braking System (ABS) | Standard |
| Electronic Brake-force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitgation (ROM) | Standard |
| Trailer Assist / Sway Assist | Trailer Sway Control (TSC) |
| SRS Airbags | Driver & Passenger only |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts | – |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | – |
| Remote Central Locking | Standard |
| MyKey® | – |
| Immobiliser | Standard |
| Child Safety Locks | – |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Next-Generation Everest Sport
Uncompromising Capability, Safety, and Comfort
Walkaround Video
Model Specification
| Model | 2.0L Single Turbo Sport 4×2 6AT |
|---|---|
| Engine | |
| Type | Diesel (I4) with Single Turbo |
| Displacement(cc) | 1996 |
| Max Power [kW (PS) @ rpm] | 125 (170) @ 3500 |
| Max Torque (Nm @ rpm) | 405 @ 1750 – 2500 |
| Fuel Supply System | Commonrail Direct Injection |
| Compression Ration | 15.8+ 0.5:1 |
| Transmission | |
| Transmission Type | 6-Speed Automatic with SelectShift® |
| Electronic Shift-on-the-fly (ESOF) / 4×4 Shift System | – |
| Chassis & Suspension | |
| Steering System | Rack and Pinion with Electronic Power Assisted Steering (EPAS) |
| Suspension (Front) | Double Wishbone with Coil Spring and Anti-Roll Bar |
| Suspension (Rear) | Coil Spring with Watt’s Linkage |
| Brakes (Front/Rear) | Front Ventilated Disc and Rear Disc |
| Drive Modes | 4 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery |
| Differential Type | – |
| Tyres & Rims | 255/55 R20, Alloy |
| Measurements | |
| Overall (L x W x H) (mm) | 4914/1923/1841 (1840-1842) |
| Wheelbase (mm) | 2900 |
| Track (Front/Rear) (mm) | 1620/1620 |
| Ground Clearance (mm) | 200 |
| Body Overhang Front (mm) | 871 |
| Rear (mm) | 1143 |
| Kerb Weight (kg) | 2201 |
| Gross Weight (kg) | 3000 |
| Minimum Turning Radius (m) | 11.8 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (Litres) | 80 |
| Exterior Features | |
| Front Grille | Black |
| Bumper (Front) | Body Colour |
| Bumper (Rear) | Body Colour |
| Door Handle / Side Mirror | Glossy Black / Glossy Black |
| Headlamps | LED with Manual Levelling |
| Headlamps Levelling | Manual Levelling |
| LED Rear Lights | Standard |
| LED Fog Lamps (Front & Rear) | Standard |
| LED Stop Lamp | Standard |
| Daytime Running Lights | C-Clamp Daytime Running Lights |
| Side Mirror | Power Adjustable & Foldable |
| Side Mirror with Turning Lights | Standard |
| Wiper System | Rain Sensing |
| Roof Rails | Standard |
| Side Steps | Standard |
| Powered Liftgate | Standard |
| Underbody Protection Bash | – |
| Front Recovery Hooks | Standard |
| Fender Flares | Standard |
| Panoramic Moonroof / Sunroof | – |
| Interior Features | |
| Steering Wheel Material | Vinyl |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Steering Wheel (Switches) | Standard |
| Parking Brake | Electronic Parking Brake |
| Audio System / Infotainment | 10″ Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition |
| Speakers | 8 |
| SYNC® | SYNC® 4A |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) |
| 12V Socket / Power Port DC 12V | Centre Box, 3rd Row and Rear Bonnet |
| Keyless Entry with Push Start Button | Standard |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Blower and Vents | Standard |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | Driver & Front Passenger – Touch Up/Down |
| Rear View Mirror | Auto Dimming |
| Sun Visor | With Light |
| Dome Light / Cabin Light | Standard |
| Windscreen Mounted USB Port | Standard |
| Gear Knob Type | Leather Gear Shift Knob |
| Interior Trim Color | Ebony |
| Glove Box | Standard |
| Seats (Materials) | Leather |
| Driver Adjustable Seat | 8-Way Power Adjustable Seat |
| Front Passenger Seat | 8-Way Power Adjustable Seat |
| Power Folding Seats | Manual |
| Assist Handles | 4 – All Doors |
| 230V AC Outlet (400W) / Power Outlet | – |
| Carpet Mat | Standard |
| Rear Window Defogger | Standard |
| Spare Tyre | 17″ Steel Wheel |
| Wireless Charger / Qi Charger | Standard |
| Safety | |
| Cruise Control | Standard |
| Adaptive Cruise Control (ACC) | – |
| Emergency Stop Signal (ESS) | Standard |
| Lane Departure Warning & Assist (LDW) | – |
| BLIS® (Blind Spot Information System) | – |
| High Beam Assist | – |
| Rear Cross Traffic Alert | – |
| Manual Speed Limiter (MSL) | Standard |
| Tyre Pressure Monitoring System (TPMS) | – |
| Anti-Lock Braking System (ABS) | Standard |
| Electronic Brake-Force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | – |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitigation (ROM) | Standard |
| Adaptive Load Control | Standard |
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | – |
| Forward Collision Warning (FCW) | – |
| Reverse Brake Assist | – |
| Parking Sensors (Front/Rear) | Front/Rear |
| 360° Camera | – |
| Reverse Camera | Standard |
| SRS Airbags | 7 Airbags – Driver, Front Passenger, Sides, Curtains, Driver’s Knee |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts – 2nd Row | 3-Point ELR x3 |
| Rear Seatbelts – 3rd Row | 3-Point ELR x2 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | Standard |
| Remote Central Locking | Global & Selective |
| Security | Valet Mode |
| MyKey | Standard |
| Security Alarm with Immobiliser | Standard |
| Child Safety Lock | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 263,888**
Next-Generation Everest Titanium
Uncompromising Capability, Safety, and Comfort
Walkaround Video
Model Specification
| Model | 2.0L Bi-Turbo Titanium 4×4 10AT |
|---|---|
| Engine | |
| Type | Diesel (I4) with Bi-Turbo |
| Displacement(cc) | 1996 |
| Max Power [kW (PS) @ rpm] | 154.50(210) @ 3750 |
| Max Torque (Nm @ rpm) | 500 @ 1750 – 2000 |
| Fuel Supply System | Commonrail Direct Injection |
| Compression Ration | 16.0+ 0.5:1 |
| Transmission | |
| Transmission Type | 10-Speed Automatic with SelectShift® and e-Shifter |
| Electronic Shift-on-the-fly (ESOF) / 4×4 Shift System | Electronic Shift-On-The-Fly (ESOF) |
| Chassis & Suspension | |
| Steering System | Rack and Pinion with Electronic Power Assisted Steering (EPAS) |
| Suspension (Front) | Double Wishbone with Coil Spring and Anti-Roll Bar |
| Suspension (Rear) | Coil Spring with Watt’s Linkage |
| Brakes (Front/Rear) | Front Ventilated Disc and Rear Disc |
| Drive Modes | 6 Selectable Drive Modes: Normal, Eco, Tow/Haul, Slippery, Mud/Ruts, Sand |
| Differential Type | e-Locking Rear Differential |
| Tyres & Rims | 255/55 R20, Alloy |
| Measurements | |
| Overall (L x W x H) (mm) | 4914/1923/1841 (1840-1842) |
| Wheelbase (mm) | 2900 |
| Track (Front/Rear) (mm) | 1620/1620 |
| Ground Clearance (mm) | 200 |
| Body Overhang Front (mm) | 871 |
| Rear (mm) | 1143 |
| Kerb Weight (kg) | 2358 |
| Gross Weight (kg) | 3100 |
| Minimum Turning Radius (m) | 11.8 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (Litres) | 80 |
| Exterior Features | |
| Front Grille | Chrome |
| Bumper (Front) | Body Colour |
| Bumper (Rear) | Body Colour |
| Door Handle / Side Mirror | Chrome/Chrome |
| Headlamps | Performance LED Projector / Matrix Headlamp with Auto High Beam |
| Headlamps Levelling | Auto |
| LED Rear Lights | Standard |
| LED Fog Lamps (Front & Rear) | Standard |
| LED Stop Lamp | Standard |
| Daytime Running Lights | C-Clamp LED Daytime Running Lights |
| Side Mirror | Power Adjustable & Foldable with Puddle Lamp |
| Side Mirror with Turning Lights | Standard |
| Wiper System | Rain Sensing |
| Roof Rails | Standard |
| Side Steps | Standard |
| Powered Liftgate | Standard |
| Underbody Protection Bash | Standard |
| Front Recovery Hooks | Standard |
| Fender Flares | Standard |
| Panoramic Moonroof / Sunroof | Dual Panel Sunroof |
| Interior Features | |
| Steering Wheel Material | Vinyl |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Steering Wheel (Switches) | Standard |
| Parking Brake | Electronic Parking Brake |
| Audio System / Infotainment | 12″ Multi Touchscreen Display Headunit with Wireless Apple CarPlay®, Android Auto™, Bluetooth and Voice Recognition |
| Speakers | 8 |
| SYNC® | SYNC® 4A |
| USB Charging Port | 4 (Front: 1 USB Type-C, 1 USB) (Rear: 1 USB Type-C, 1 USB) |
| 12V Socket / Power Port DC 12V | Centre Box, 3rd Row and Rear Bonnet |
| Keyless Entry with Push Start Button | Standard |
| Air Conditioner / Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Blower and Vents | Standard |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | All Windows Touch Up/Down Driver & Front Passenger – Touch Up/Down |
| Rear View Mirror | Auto Dimming |
| Sun Visor | With Light |
| Dome Light / Cabin Light | Standard |
| Windscreen Mounted USB Port | Standard |
| Gear Knob Type | Leather E-Shifter |
| Interior Trim Color | Ebony |
| Glove Box | Standard |
| Seats (Materials) | Leather |
| Driver Adjustable Seat | 8-Way Power Adjustable Seat |
| Front Passenger Seat | 8-Way Power Adjustable Seat |
| Power Folding Seats | Power |
| Assist Handles | 4 – All Doors |
| 230V AC Outlet (400W) / Power Outlet | Standard |
| Carpet Mat | Standard |
| Rear Window Defogger | Standard |
| Spare Tyre | 17″ Steel Wheel |
| Wireless Charger / Qi Charger | Standard |
| Safety | |
| Cruise Control | – |
| Adaptive Cruise Control (ACC) | Standard with Stop-And-Go and Lane Centring |
| Emergency Stop Signal (ESS) | Standard |
| Lane Departure Warning & Assist (LDW) | Standard |
| BLIS® (Blind Spot Information System) | Standard |
| High Beam Assist | Standard |
| Rear Cross Traffic Alert | Standard |
| Manual Speed Limiter (MSL) | Standard |
| Tyre Pressure Monitoring System (TPMS) | Standard |
| Anti-Lock Braking System (ABS) | Standard |
| Electronic Brake-Force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitigation (ROM) | Standard |
| Adaptive Load Control | Standard |
| Autonomous Emergency Braking with Pedestrian Detection (AEB) | Standard |
| Forward Collision Warning (FCW) | Standard |
| Reverse Brake Assist | Standard |
| Parking Sensors (Front/Rear) | Front/Rear |
| 360° Camera | Standard |
| Reverse Camera | – |
| SRS Airbags | Driver, Front Passenger, Sides, Curtains, Driver’s Knee |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts – 2nd Row | 3-Point ELR x3 |
| Rear Seatbelts – 3rd Row | 3-Point ELR x2 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | Standard |
| Remote Central Locking | Global & Selective |
| Security | Valet Mode |
| MyKey | Standard |
| Security Alarm with Immobiliser | Standard |
| Child Safety Lock | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 308,888**
Next-Generation Ranger XLT Plus
Engineered for Both Work and Play
Model Specification
| Model | Next-Generation Ranger XLT Plus |
|---|---|
| Engine | |
| Type | Diesel ( I4 ) with Bi-Turbo |
| Displacement(c.c) | 1,996 |
| Power kW (PS) @ rpm | 154.50( 210 ) @ 3,750 |
| Torque Nm @ rpm | 500 @ 1,750 – 2,000 |
| Fuel Supply System | Commonrail Direct Injection |
| Transmission and Chassis | |
| Transmission Type | 10-Speed Automatic with SelectShift |
| Electronic Shift-on-the-fly (ESOF) | Standard |
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension (Front) | Double Wishbone with Coil Spring |
| Suspension (Rear) | Leaf Spring |
| Brakes (Front/Rear) | Ventilated Disc / Drum |
| Differential System | e-Locking Rear Differential |
| Tyres & Wheels | 255/70 R17, Alloy |
| Dimensions | |
| Overall Length ( L X W X H) (mm) | 5,370 / 1,918 / 1,884 |
| Wheelbase (mm) | 3,270 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 230 |
| Cargo Bed ( L X W X H ) (mm) | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 |
| Gross Weight (kg) | 3,230 |
| Minimum Turning Radius (m) | 12.9 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Feature | |
| Front Grille | Chrome Grille |
| Bumper (Front) | Body Coloured |
| Bumper (Rear) | Body Coloured |
| Door & Tailgate Handle | Body Coloured / Black |
| Headlamps | LED with Auto High Lamp & Manual Levelling |
| Headlamp Leveling | Manual |
| Fog Lamps ( Front / Rear ) | Standard ( Front & Rear ) |
| Stop Lamp | LED Tailgate Mounted |
| Daytime Running Lights | C- Clamp Daytime Running Light |
| Side Mirror | Power Adjustable & Foldable |
| Wipers System | Rain-Sensing |
| Sport Bar | Standard |
| Bedliner | Standard |
| Cargo Box Hooks Point | 6 |
| Side Steps | Standard |
| Easy Lift Tailgate/ Tailgate Assist | Standard |
| Front & Rear Recovery Hooks Front | Front |
| Rear Step Bumper | Standard |
| Interior Feature | |
| Steering Wheel Material | Vinyl with Steering Switches |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel Adjustment | Tilt & Telescopic |
| Parking Brake | Lever Hand Brake |
| Lane Changing Signal | Intelligent 3-Blink Turn Signal |
| Audio System/ Infotainment | 10.1″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM, Bluetooth and Voice Recognition |
| Speakers | 6 |
| SYNC® | SYNC® 4A |
| USB Charging Port | 2 (Front: 1 USB Type-C , 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V Outlet | Center Box & Rear |
| Keyless Entry With Push Start Button | Standard |
| Air Conditioner/ Climate Control | Electronic Dual-Zone Climate Control |
| Rear Air Conditioning Vents | Standard |
| Drive Mode | Normal, Eco, Tow/Haul & Slippery |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | Driver& Front Passenger One- Touch Up / Down |
| Rear View Mirror | Standard |
| Sun Visor | Standard |
| Dome Light | Standard |
| Gear Knob Type | Leather Gear Shift Knob |
| Interior Trim Colour | Ebony Black |
| Seats (Materials) | Fabric |
| Drive Adjustable Seat | 6-Way Manual Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat |
| Rear Window Defogger | Standard |
| Full Size Spare Tyre | 17 Inch Steel Wheel |
| Wireless Charger / Qi Charger | Standard |
| Safety & Security | |
| Cruise Control | Standard |
| Lane Keeping Aid | Standard |
| Speed Limiter | Standard |
| Second Collision Brake/ Post Collision Brake | Standard |
| Anti-lock Braking System (ABS) | Standard |
| Electronic Brake-force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Standard |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitgation (ROM) | Standard |
| TRAILER ASSIST / Sway Assist | Standard |
| Pre-Collision Assist /Automated Emergency Braking With Pedestrian Detection (AEB ) | Standard |
| Forward Collision Warning (FCW) | Standard |
| Parking Sensors (Front/Rear) | Standard |
| Reverse Camera | Standard |
| SRS Airbags | Driver & Passenger, Sides & Curtains |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts | 3-Point ELR x3 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | With 2 Top Tether (Rear) |
| Remote Central Locking | Global & Selective |
| Security | Valet Mode |
| MyKey® | Standard |
| Immobiliser | Standard |
| Child Safety Locks | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM 142,888**
Next-Generation Ranger XL
Built To Do More
Model Specification
| Model | Next-Generation Ranger XL |
|---|---|
| Engine | Automatic |
| Type | Diesel ( I4 ) with Single Turbo |
| Displacement (c.c) | 1,996 |
| Power kW (PS) @ rpm | 125 ( 170 ) @ 3,500 |
| Torque Nm @ rpm | 405 @ 1,750 – 2,500 |
| Fuel Supply System | Commonrail Direct Injection |
| Transmission and Chassis | |
| Transmission Type | 6-Speed Automatic with SelectShift |
| Electronic Shift-on-the-fly (ESOF) | Standard |
| Steering System | Electric Power Assisted Steering (EPAS) – Rack & Pinion |
| Suspension (Front) | Double Wishbone with Coil Spring |
| Suspension (Rear) | Leaf Spring |
| Brakes (Front & Rear) | Ventilated Disc / Drum |
| Differential Type | Limited Slip Differential |
| Tyres & Wheels | 255/70 R16, Alloy |
| Dimensions | |
| Overall (L x W x H) (mm) | 5,370 / 1,918 / 1,884 |
| Wheelbase (mm) | 3,270 |
| Track (Front/Rear) (mm) | 1620 / 1620 |
| Ground Clearance (mm) | 230 |
| Cargo Bed (L x W x H) (mm) | 1,564 / 1,584 / 540 |
| Kerb Weight (kg) | 2,227 |
| Gross Weight (kg) | 3,230 |
| Minimum Turning Radius (m) | 12.9 |
| Water Wading (mm) | 800 |
| Fuel Tank Capacity (L) | 80 |
| Exterior Feature | |
| Front Grille | Black |
| Bumper (Front) | Body Coloured |
| Bumper (Rear) | Body Coloured |
| Door & Tailgate Handle | Black / Black |
| Headlamps | Halogen |
| Headlamp Leveling | Manual |
| Fog Lamps (Front / Rear) | Standard (Front / Rear) |
| LED Tailgate Mounted Stop Lamp | Standard |
| Daytime Running Lights | Standard |
| Side Mirror | Power Adjustable |
| Wipers System | Manual |
| Sport Bar | Standard |
| Bedliner | Standard |
| Cargo Box Hooks point | 6 |
| Side Steps | Standard |
| Front Recovery Hooks | Standard |
| Rear Step Bumper | Standard |
| Interior Feature | |
| Steering Wheel Material | Urethane with Streering Switches |
| Steering Wheel Type | 4-Spoke |
| Steering Wheel (Adjustment) | Tilt & Telescopic |
| Parking Brake | Lever Hand Brake |
| Audio System/Infotainment | 10″ Multi Touchscreen Display Headunit with Wireless Apple CarPlayTM, Android AutoTM, Bluetooth and Voice Recognition |
| Lane Changing Signal | Intelligent 3-Blink Turn Signal |
| Speakers | 4 |
| SYNC® | SYNC® 4A |
| USB Charging Ports | 2 (Front: 1 USB Type-C , 1 USB Type-A) |
| 12V Socket/ Power Port DC 12V Outlet | Center Box & Rear |
| Keyless Entry with Push-Start Button (PEPS) | – |
| Air Conditioner/Climate Control | Electronic Dual-Zone Climate Control |
| Drive Mode | – |
| Instrument Cluster | 8″ TFT Multi Information Display |
| Power Windows | Driver & Front Passenger One-Touch Up/Down |
| Rear View Mirror | Standard |
| Sun Visor | Standard |
| Dome Light | Standard |
| Gear Knob Type | Molded Gear Shift Knob |
| Interior Trim Colour | Ebony Black |
| Seats (Materials) | Fabric |
| Drive Adjustable Seat | 4-Way Manual Adjustable Seat |
| Front Passenger | 4-Way Manual Adjustable Seat |
| Rear Window Defogger | Standard |
| Spare Tyre | 16 Inch Steel Wheel |
| Safety & Security | |
| Anti-lock Braking System (ABS) | Standard |
| Electronic Brake-force Distribution (EBD) | Standard |
| Electronic Stability Control (ESC) / Vehicle Stability | Electronic Stability Control (ESC ) with Traction Control |
| Traction Control System (TCS) | Standard |
| Brake Assist (BA) | Standard |
| Hill Descent Control (HDC) | Standard |
| Hill Launch Assist (HLA) | Standard |
| Rollover Mitgation (ROM) | Standard |
| Trailer Assist / Sway Assist | Trailer Sway Control (TSC) |
| SRS Airbags | Driver & Passenger, Sides & Curtains |
| Front Seatbelts | 3-Point ELR x2 |
| Rear Seatbelts | 3-Point ELR x3 |
| Seatbelt Reminder | Driver & Front Passenger |
| ISOFIX | – |
| Remote Central Locking | Standard |
| MyKey® | – |
| Immobiliser | Standard |
| Child Safety Locks | Standard |
Expert Reviews
From RM 2,121.00/month*
Starting from RM 210,888**
Starting from RM 210,888**
Starting from RM price**
Follow Ford Malaysia
